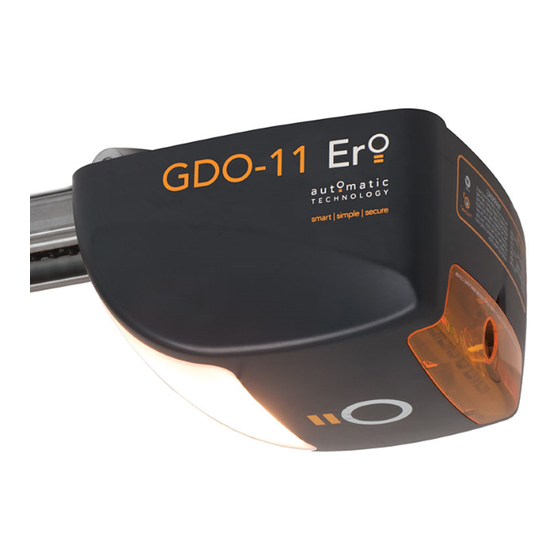

- Page 1 GDO-11 ™ Sectional Door Opener Instruction Manual Doc # 160073_00 Part # 13459 Released 29/08/16...
-
Page 2: Table Of Contents
GDO-11 Instruction Manual Table of Contents Installation Instructions 1. Installation Safety Warnings! 13. Control Board & Accessories Control Board Layout 2. Before you Begin Auxiliary Output Examine the conditions in the garage: 14. Coding a Transmitter Test the following before commencing installation: 4 Storing the Transmitter Code 3. -
Page 3: Installation Safety Warnings
Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener. • If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person. •... -
Page 4: Before You Begin
GDO-11 Instruction Manual 2. Before you Begin Examine the conditions in the garage: a. Look at the ceiling: i. Is it plastered? The opener is mounted to a perforated angle which MUST be securely fastened to a structural support. You will need to locate the structural beams in the ceiling which are generally 400mm apart. ii. -
Page 5: Kit Contents
GDO-11 Instruction Manual 4. Kit Contents 1 x GDO-11 drive unit 9. 2 x Hex Head screw M8x25 PLUS 2. 2 x Transmitters and batteries 10. 1 x Pin 0890 15. 2 x Track Bracket 3. 1 x Bent arm door attachment 2 x Clevis Pin 0829 16. -
Page 6: Fit The Opener
GDO-11 Instruction Manual 6. Fit the Opener Secure C-Rail to Opener: a. Remove the Opener from the box and place onto towel. b. Locate and insert the shaft of drive unit into the C-Rail’s sprocket. c. Fix the two track brackets with four (4) M4 x 8 screws supplied in accessory pack. -
Page 7: Perforated Angle
GDO-11 Instruction Manual 8. Perforated Angle (Not supplied) Attach Perforated Angle (not supplied) or equivalent a. Measure across the ceiling from the centre point 3177mm (+/- 150mm) to find a supporting beam. b. Create a perforated angle which best suits your site. Use a hack saw to cut the L shape metal strips. Secure the perforated angle to a supporting beam using diagrams shown below. -
Page 8: Mounting Brackets And Arms
GDO-11 Instruction Manual 9. Mounting Brackets and Arms Mounting The Door Bracket: a. The door bracket locator is placed over the door bracket , on the door’s centre line one-third down the top panel and mounted using M6 or equivalent screws (not supplied), b. -
Page 9: Setting Limits
GDO-11 Instruction Manual 11. Setting Limits Setting the Datum: a. Press and hold the MINUS (-) or PLUS (+) buttons to move the door to the halfway position. Ensure that the door, shuttle and chain index are engaged. b. Using a small blade screw driver turn the datum adjust screw slowly until the yellow status LED just illuminates. -
Page 10: Safety Testing
GDO-11 Instruction Manual 12. Safety Testing Test the Close Cycle CAUTION: Take care when completing a a. Press the OPERATE button to open the door. safety test. Failure to follow this warning b. If the door closes, press the OPERATE button to stop the door, can result in serious personal injury and/or then press OPERATE again to open. -
Page 11: Control Board & Accessories
GDO-11 Instruction Manual 13. Control Board & Accessories Control Board Layout To access the control board: a. Remove the back cover by unscrewing the two (2) screws. b. Refer to below diagram. Programmer Solar / Battery Backup Network Terminal Solar Block Shunt Auxiliary Output... -
Page 12: Coding A Transmitter
GDO-11 Instruction Manual 14. Coding a Transmitter Storing the Transmitter Code The opener can only operated from remote control transmitters that have been programmed into its memory. Up to 64 codes can be stored in the memory. a. Press and hold the DOOR CODE button. b. -
Page 13: Installation Of The Wall Mounted Transmitter
GDO-11 Instruction Manual 14. Coding a Transmitter Installation of the Wall Mounted Transmitter (optional) a. Press and hold the DOOR CODE button. b. Press Button 1 on the transmitter for two seconds. Release and pause for two seconds. Press the Button 1 again for two seconds. c. -
Page 14: Home Owner Safety Warnings
GDO-11 Instruction Manual 15. Home Owner Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage. Please read these important safety warnings! WARNING! •... -
Page 15: Opener Safety & Security
GDO-11 Instruction Manual 16. Opener Safety & Security Your Door CAN NOT be used by the opener when: WARNING! When operating the manual a. There is a locking device installed. release (while the door is open) the door b. There is a power failure. may fall rapidly due to weak or broken springs, or due to being improperly Your Door CAN be used when:... -
Page 16: User Operating Controls
GDO-11 Instruction Manual 18. User Operating Controls Button Function 1. OPERATE Opens/stops/closes the door 2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation 4. -
Page 17: Specifications
GDO-11 Instruction Manual 20. Specifications ™ Technical Specifications GDO-11V3 Ero Power supply 230V - 240Va.c. 50Hz Maximum door opening: Door Height (standard rail): 2440mm Maximum Door Weight: 100kg Door Area: 16.5m Door myst be well balanced and able to be operated by hand, as per warranty conditions and AS/NZS 4505:2012 Minimum headroom... -
Page 18: Troubleshooting
GDO-11 Instruction Manual 21. Troubleshooting Symptom Possible cause Remedy The opener does Garage door in poor condition e.g. Check the door’s operation not work from the springs may be broken transmitter The opener does not have power Plug a device of similar voltage (e.g. a hairdryer) into the power point and check that it is OK The battery in the transmitter is flat Replace the battery... - Page 19 GDO-11 Instruction Manual 21. Troubleshooting Symptom Possible cause Remedy The SERVICE LED has A Fault has been detected. The fault Record opener function (How many beeps?) then started to flash and will be active each time an attempt is press the SET button once to reset the opener. If the is beeping numerous made to operate the door.
-
Page 20: Maintenance
When batteries reach the end of their usual life in accordance with Australian Battery Recycling Initiative please follow the next simple steps for protecting the environment. Refer to the Automatic Technology website for information on where to recycle batteries in Australia. -
Page 21: Service Schedule
GDO-11 Instruction Manual 25. Service Schedule Year / Date Details Approx. Cycles 1 / 3,000 2 / 6,000 3 / 9,000 4 / 12,000 5 / 15,000... -
Page 22: Warranty
(described as “you” below) Address:_____________________________________Installed by:__________________________________ Installed on (date):____________________________Invoice No:__________________________________ This Warranty is given by Automatic Technology (Australia) Pty Ltd (ABN 11 007 125 manually to the open or closed position; 368) (ATA), 6-8 Fiveways Boulevard, Keysborough 3173, 1300 133 944, sales@ GDO-11 Ero (i) the door surface area exceeding 16.5m... -
Page 23: Optional Accessories
GDO-11 Instruction Manual 27. Optional Accessories There are a range of additional accessories for your added convenience and security. Contact your Dealer for installation of these accessory items. • Safety Beams - Provides additional protection if the door is closing onto your property or person. Simply breaking the beam “stops”... - Page 24 Is your opener beeping or flashing? It may be time for a service (for more details see section 22) For a service, contact your dealer using the details below... Dealer:...
