C-Rail Attachment

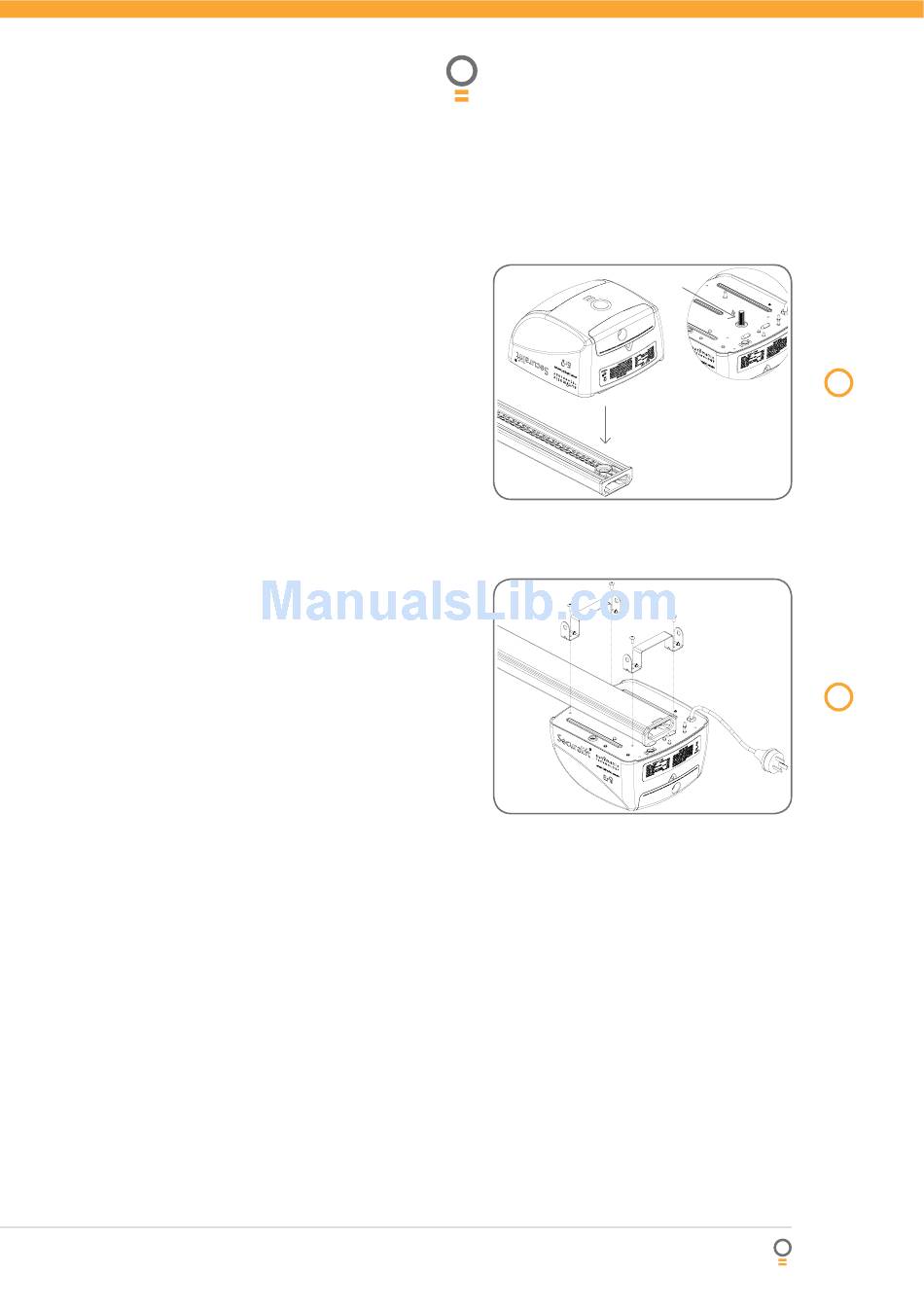

Step 2 - Secure C-Rail to Drive Unit
a. Locate and insert the shaft of drive unit into the C-
Rail's sprocket (Fig. 11).
b. Fix the two track brackets with four screws supplied
in accessory pack (Fig. 12).
Shaft
Locate shaft into sprocket
Mushroom Head Screw Taptite 'S' M4 x 8
GDO-11v1 SecuraLift ®
Owner Installation Instructions
fi g 11
Track bracket (x2)
fi g 12
13
