Summary of Contents for Automatic Technology GDO-11V3 Ero

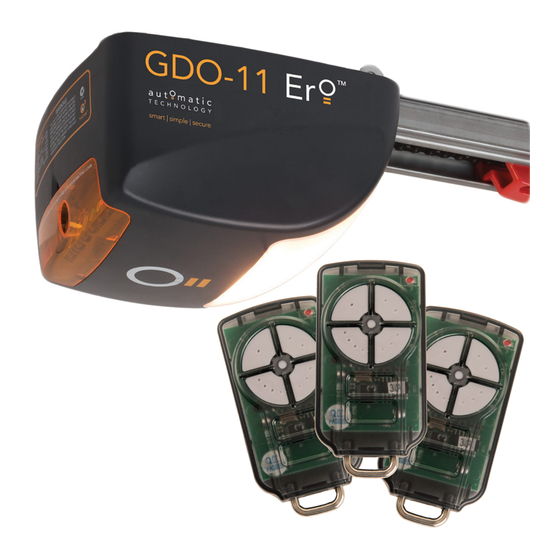

- Page 1 GDO-11V3 Ero ™ Overhead Garage Door Opener Home Owner’s Manual Doc #: 160058_01 Part #: 13433 Released: 28/10/2015...
-
Page 2: Table Of Contents
14. Warranty Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of a Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technolofy (Australia) Pty Ltd hereby further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from failure to install the Automatic Technology ( Australia) Pty Ltd Garage Door Opener in accordance with the installation instructions. -
Page 3: Safety Rules
GDO-11V3 Ero Home Owner’s Manual 1. Safety Rules Please read these important safety rules This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety rules. Failure to comply with the following instructions may result in death, serious personal injury or property damage. -
Page 4: Features
GDO-11V3 Ero Home Owner’s Manual 2. Features Warranty Manual Release Two (2) year/5,000 cycles full parts and labour The manual release handle allows the door to warranty on motor, electronics and mechanical be operated by hand in the event of a power components of the opener when installed by an failure. -
Page 5: Specifications
GDO-11V3 Ero Home Owner’s Manual 3. Specifications Technical Specifications Power supply 230V - 240Va.c. 50Hz Maximum door opening: Width: 5500mm (13.5m Height: 2440mm Weight: 100kg Minimum headroom 25mm Short Term Peak Force 650N (65kg) Rated force 400N (40kg) with Chain... -
Page 6: Operating Your Door
GDO-11V3 Ero Home Owner’s Manual 4. Operating your door For maximum efficiency of your opener, your garage door must be in good operating condition. An annual service of your garage door by an Approved Dealer is recommended. CAUTION: Activate the opener only... -
Page 7: User Operating Controls
GDO-11V3 Ero Home Owner’s Manual 5. User Operating Controls Button (Fig 5.1) Function 1. OPERATE Opens/stops/closes the door 2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation 4. -
Page 8: Opener Safety & Security
GDO-11V3 Ero Home Owner’s Manual 6. Opener Safety & Security 6.1 Manual Door Operation WARNING! When operating the To disengage the opener from the door (preferably manual release (while the door is with the door in the closed position), pull down... -
Page 9: Safety Testing
GDO-11V3 Ero Home Owner’s Manual y 7. Safety Testing 7.1 Test the Close Cycle CAUTION: Take care when a. Press the transmitter to open the door. (Fig 7.1) completing a safety test. Failure b. Place a piece of timber approximately 40mm high on... -
Page 10: Coding Transmitters
GDO-11V3 Ero Home Owner’s Manual 8. Coding Transmitters 8.1 Setting the Transmitter to Operate the Door ELECTROCUTION! The button The opener can only operate from transmitters that have cover is the only cover that should been programmed into its receiver. The receiver needs to be removed. -
Page 11: Operating Pet (Pedestrian) Mode
GDO-11V3 Ero Home Owner’s Manual 8. Coding Transmitters 8.4 Operating PET (Pedestrian) Mode a. Briefly press the DOOR CODE button three (3) times, then press it again and hold (the opener will beep four times on the fourth press. b. Choose a transmitter button not already coded into the receiver. -
Page 12: Troubleshooting Guide
GDO-11V3 Ero Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy The door stops or moves Garage door in poor condition e.g. Check the door’s operation - see very slowly springs may be broken monthly maintenance (Section 10.1) The opener does... -
Page 13: Troubleshooting
GDO-11V3 Ero Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy Courtesy Light flashes The opener has reached Contact your dealer and arrange and the opener beeps the number of cycles a door service. Alternatively press 5 times after each recommended before servicing. -
Page 14: Maintenance
GDO-11V3 Ero Home Owner’s Manual 10. Maintenance 10.1 Door Maintenance WARNING! Failure to maintain your Whilst your opener does not require any periodic garage door may void the warranty maintenance, the door that it is fitted to, does. Your on your garage door opener. -
Page 15: Door Service And Repair
GDO-11V3 Ero Home Owner’s Manual 10. Maintenance 10.3 Door Service and Repair If correct maintenance and servicing are not carried out, warranty may be voided. To keep your door running well, it is recommended that your door be serviced by an experienced technician, every 12 months or earlier if required: •... -
Page 16: Battery Replacement
Refer to the Automatic Technology website for information on where to recycle batteries in Australia. DO NOT throw the batteries in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in the municipal waste. -
Page 17: Service Schedule
GDO-11V3 Ero Home Owner’s Manual 13. Service Schedule Year / Date Details Approx. Cycles 1 / 3,000 2 / 6,000 3 / 9,000 4 / 12,000 5 / 15,000 Automatic Technology (Australia) Pty Ltd Phone: 1300 133 944 Website: www.automatictechnology.com.au... -
Page 18: Warranty
Address:_____________________________________Installed by:__________________________________ Installed on (date):____________________________Invoice No:__________________________________ This Warranty is given by Automatic Technology (Australia) Pty Ltd (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard, Keysborough, VIC, 3173, 1300 133 944, sales@automatictechnology.com.au 2. The Competition and Consumer Act 2010 (including the Australian Consumer Law) and other relevant statutes provide a set of statutory consumer guarantees and other legal rights that cannot be excluded, restricted or modified by contract. - Page 19 GDO-11V3 Ero Home Owner’s Manual 14. Warranty 10. This Warranty excludes damage resulting from: (a) normal wear and tear; (b) accidental damage; (c) incorrect installation of the Product; (d) blown fuses, electrical surges, power surges or power spikes; (e) theft, fire, flood, rain, water, lightning, storms or any other acts of God;...
- Page 20 Is your door sticking and hard to operate? It may be time for a service (for more details see section 10) For a service contact your dealer using the details below... Dealer:...
