PVDD1_SEL: LCD
The EITX-3000 Em-ITX SBC provides an onboard jumper named
"PVDD1_SEL" for setting the LCD signal power to either 5V or
3.3V for LVDS1 and PANEL interface connectors. When
connecting the LVDS LCD Panel display to LVDS1 or PANEL, the
setting of PVDD1_SEL must match the power requirements of the
connected LVDS Panel display. The default setting of PVDD1_SEL
is 3.3V

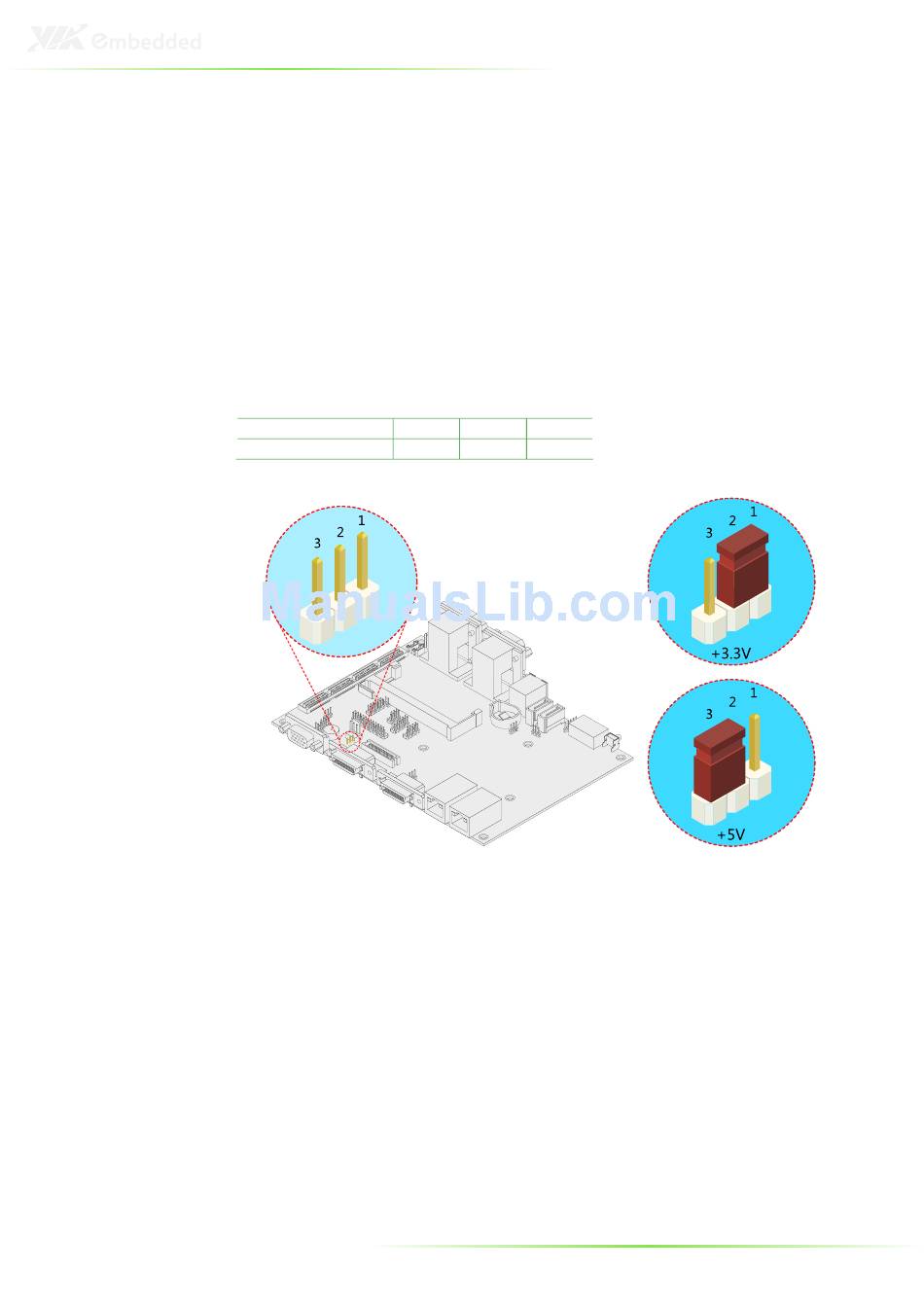

Setting 1
+3.3V (default) ON
+5V OFF
POWER JUMPER
2 3
ON OFF
ON ON
