LAN ports: Gigabit Ethernet Port 1 and 2

The EITX-3000 is equipped with two high performance of 1 Lane
of PCI-Express bus interface of VIA VT6130 Gigabit Ethernet
controllers, which supports two Gigabit Ethernet ports, both are
fully compliant with IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX),
and 802.3ab (1000BASE-T) standards. This two Gigabit Ethernet

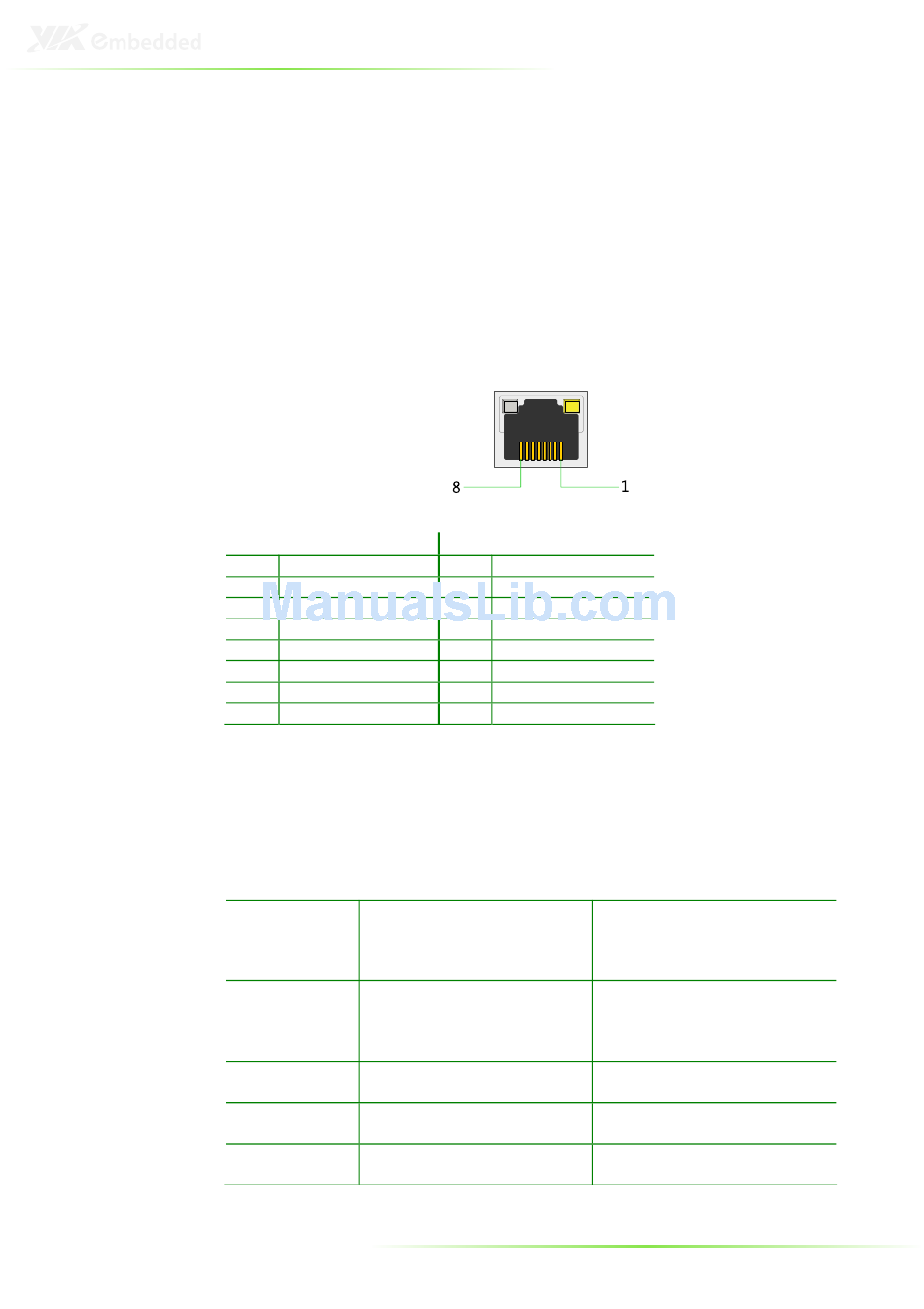

ports provides two standard RJ-45 jack connectors as LAN1 and
LAN2. The pin assignments of LAN1 and LAN2 connectors are
listed below.
LAN1
Pin Signal
1 LAN1_TD0+
2 LAN1_TD0-
3 LAN1_TD1+
4 LAN1_TD1-
5 LAN1_TD2+
6 LAN1_TD2-
7 LAN1_TD3+
8 LAN1_TD3-
Both LAN1 and LAN2 of RJ-45 connectors equip with 2 individual
LED indicators located on the front side to show its Active/Link
status and Speed status.
LAN LED Status
(Left LED on RJ-45 connector)
Active The LED always On in
different color, and it
depends on different of LAN
connection speed
Link The LED always On in
different color, and it
depends on different of LAN
connection speed
Speed_10Mbit The LED is always On in
Orange color
Speed_100 Mbit The LED is always On in
Green color
Speed_1000 Mbit The LED is always On in Red
color
LAN2
Pin Signal
1 LAN2_TD0+
2 LAN2_TD0-
3 LAN2_TD1+
4 LAN2_TD1-
5 LAN2_TD2+
6 LAN2_TD3-
7 LAN2_TD3+
8 LAN2_TD3-
Link LED
(Right LED on RJ-45 connector)
Flash in Orange color
LED is off
Flash in Orange color
Flash in Orange color
Flash in Orange color
Active LED
19
