LVDS LCD Panel connector: PANEL

Besides the two 24-bit single channel LVDS ports (LVDS1 and
LVDS2) on the rear I/O panel, the EITX-3000 also supports an
onboard 24-bit single channel LVDS interface through a high
density 30-pin (2x15-pin) wafer box connector that shares the
same pin assignments from LVDS1.

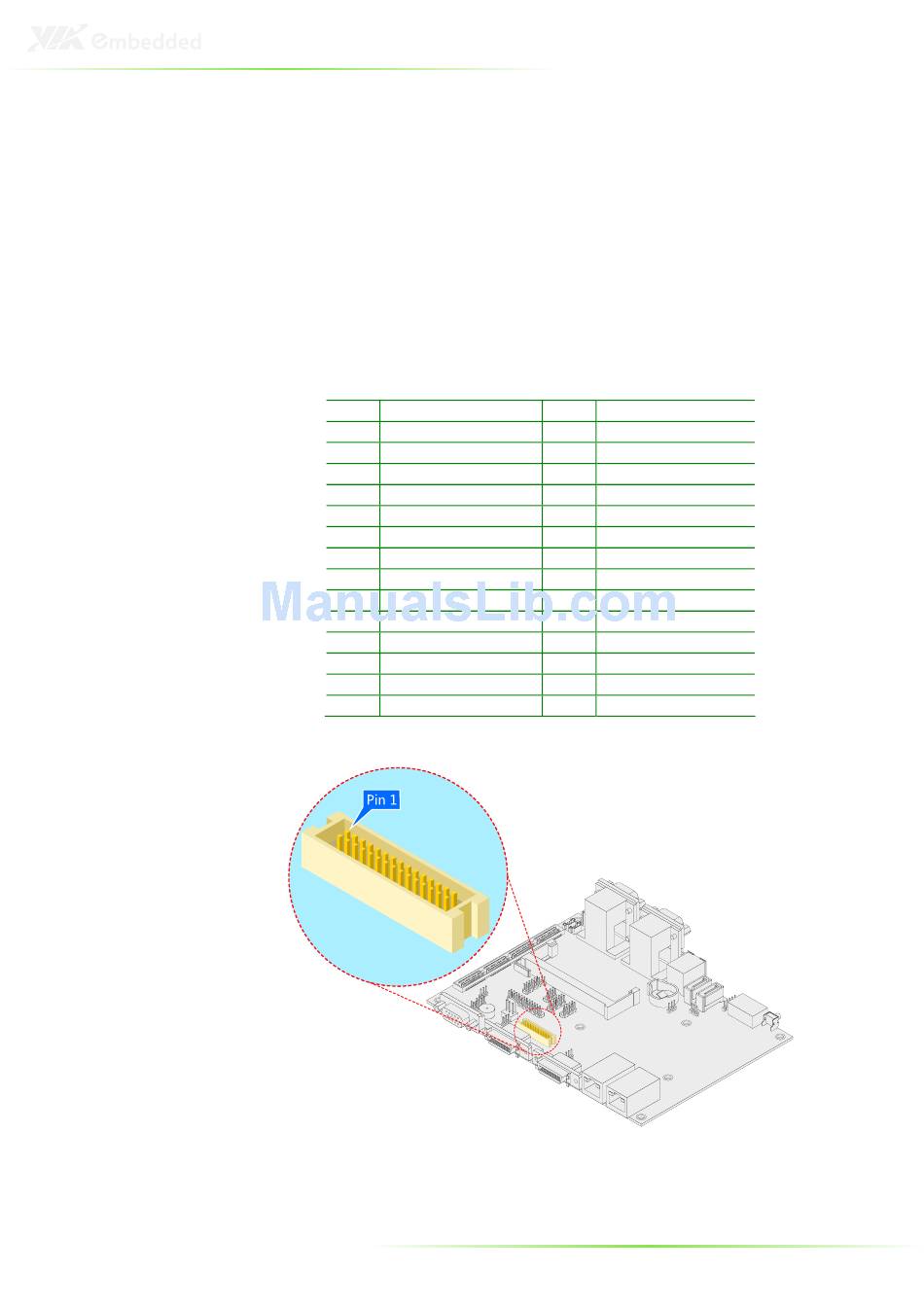

A detailed pin assignment of the 30-pin (2x15-pin) wafer box
connector is shown below.
Pin Signal
1 IVDD1_5V
2 PVDD1
3 IVDD1_5V
4 PVDD1
5 GND
6 GND
7 IVDD1_12V
8 -LD1C0
9 IVDD1_12V
10 +LD1C0
11 GND
12 GND
13 BLON1
14 -LD1C1
15 BRIGHTNESS_CTL1
Pin Signal
16 +LD1C1
17 GND
18 GND
19 SPCLK1
20 -LD1C2
21 SPD1
22 +LD1C2
23 GND
24 GND
25 -LCLK1
26 -LD1C3
27 +LCLK1
28 +LD1C3
29 GND
30 GND
