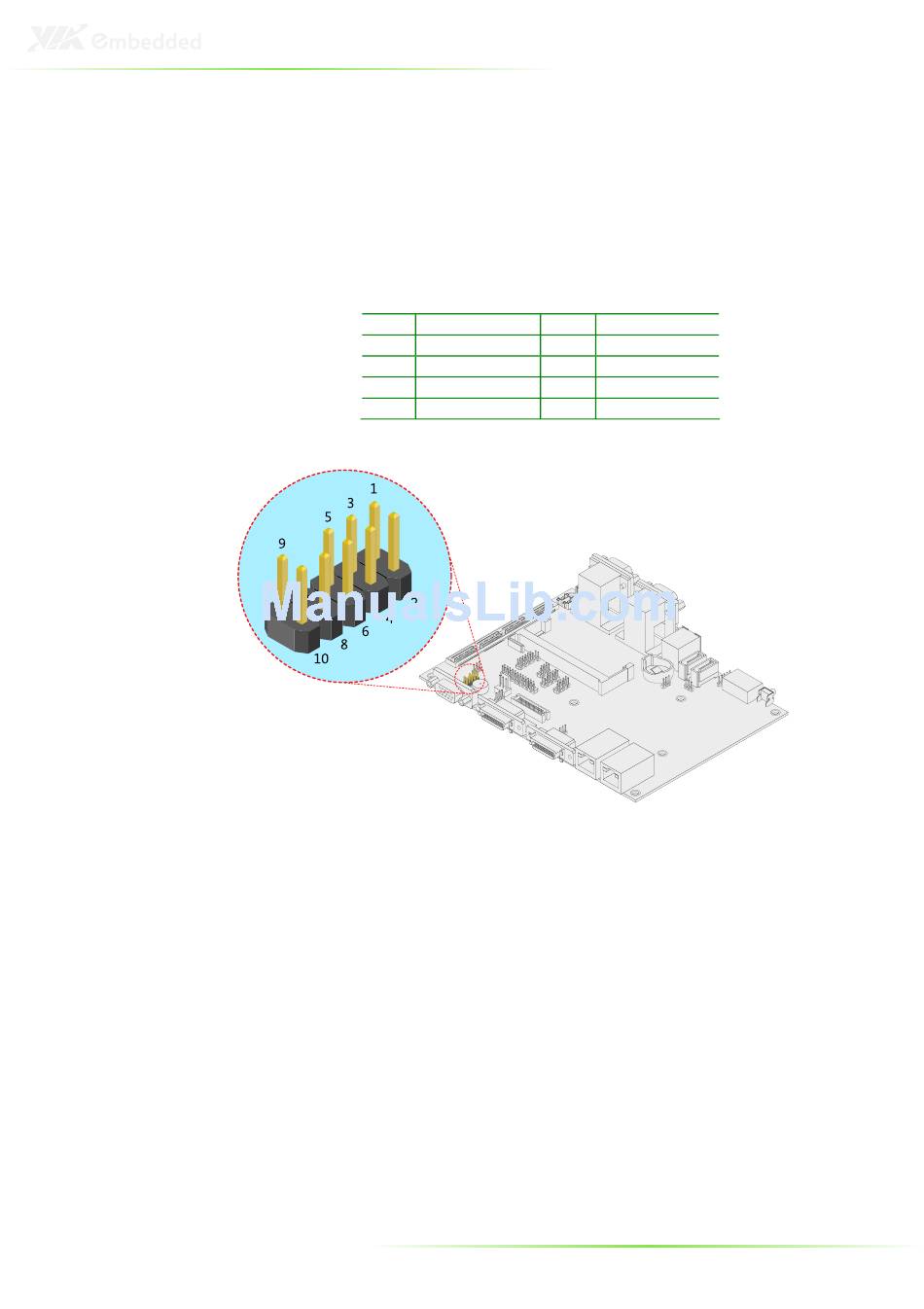

Front Panel Audio pin connector: F_Audio

The F_Audio interface enables access to the VIA High Definition
Audio signals through a 10-pin (2x5-pin) onboard pin-header. This
interface allows convenient connection and control of audio
devices.
Pin
1
3
5
7
9
Signal Pin
LINE_OUT_R 2
LINE_IN_R 4
MIC1_RE_R 6
KEY 8
AGND 10
Signal
LINE_OUT_L
LINE_IN_L
LINE_RE_L
NC
AGND
