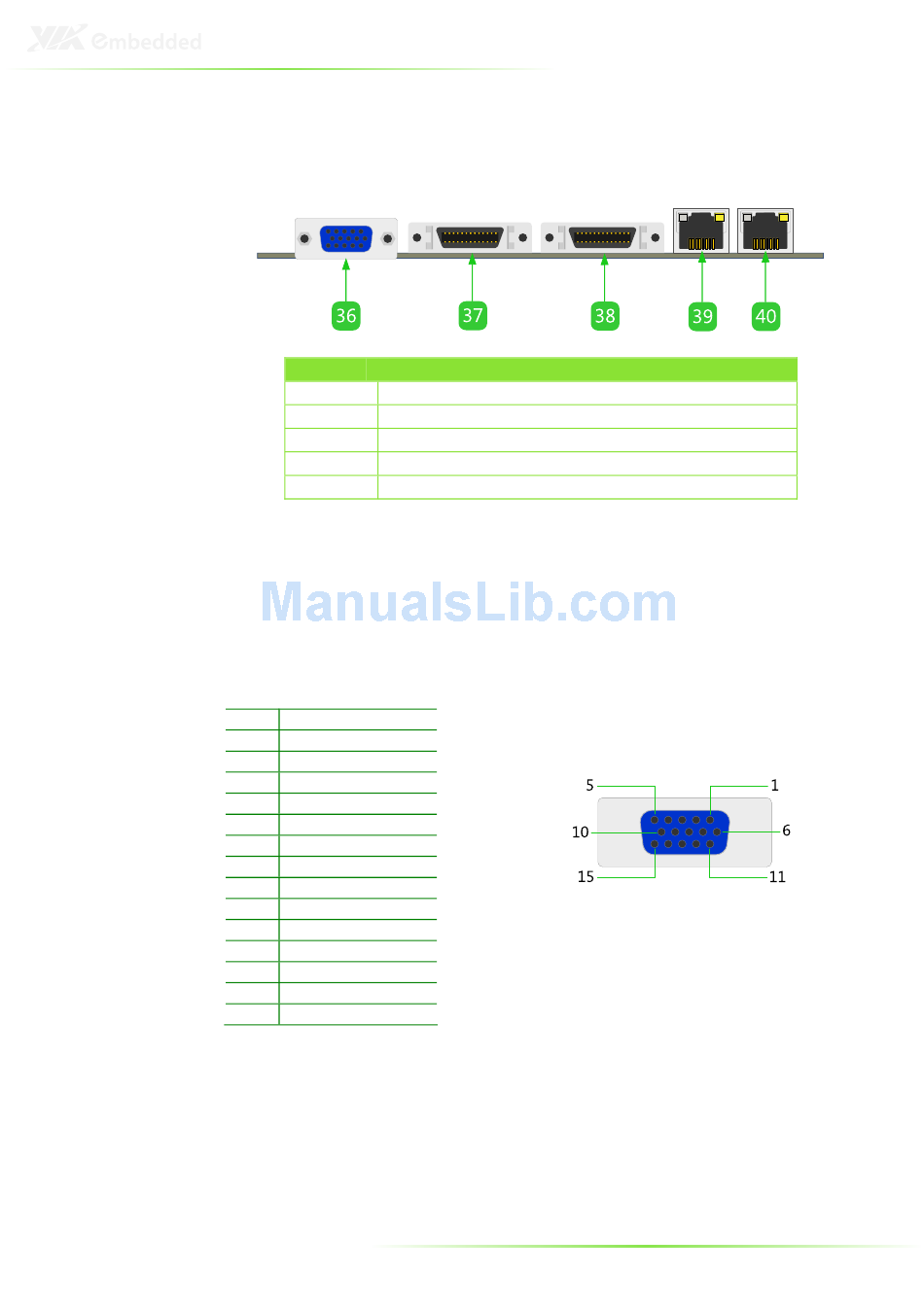

R I/O L
EAR AYOUT
Symbol Description
36 VGA port
37 LVDS port 1
38 LVDS port 2
39 RJ-45 Gigabit Ethernet LAN port 2
40 RJ-45 Gigabit Ethernet LAN port 1

VGA Connector

The EITX-3000 provides a high resolution VGA interface on the
rear I/O coastline by a D-sub 15-pin connector to support a VGA
CRT monitor. It supports resolution up to 1920 x 1200. The pin
assignments for the VGA display are listed below.
Pin Signal
1 Red
2 Green
3 Blue
4 NC
5 GND
6 GND
7 GND
8 GND
9 NC
10 GND
11 NC
12 NC
13 H-SYNC
14 V-SYNC
15 NC
