USB Port Connector: USB Port 1 and 2

The EITX-3000 can support up to six USB-interface connectors. By
default it provides two USB interface by one double-deck of mini-
DIN connectors located on the front I/O coastline as USB_0 and
USB_1, and an additional four USB-interface connectors can be
supported through adding two pieces of the Dual-USB Cable to
connect with onboard pin headers location of "USB_2/3" and
"USB_4/5". These USB-interface connectors give complete Plug &
Play and hot swap capability for up to 127 external devices. The
USB interface complies with USB UHCI, Rev. 2.0 compliance.
The USB-interface connector is used for connecting any device
that conforms to the USB interface. Many recent digital devices
conform to this standard. The USB interface supports Plug and
Play, which enables you to connect or disconnect a device
whenever you want, without turning off the computer

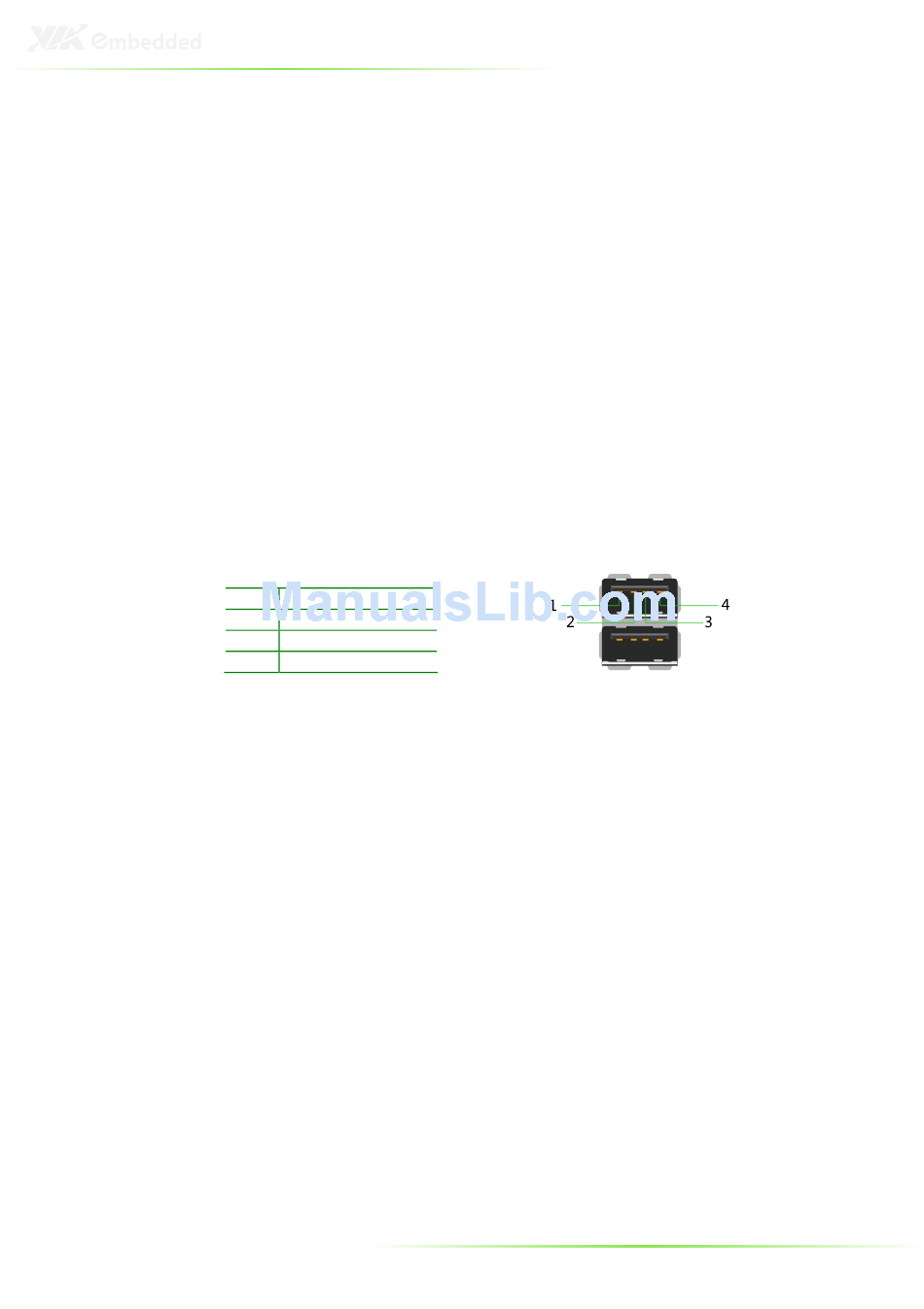

Pin Signal
1 VCC
2 USB_P0-
3 USB_P0+
4 GND
