Operating Guide
EPIA LN-Series Mini-ITX Mainboard
May 23, 2007
Version 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPIA LN-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VIA Technologies EPIA LN-Series

  • Page 1 Operating Guide EPIA LN-Series Mini-ITX Mainboard May 23, 2007 Version 1.01...
  • Page 2: Table Of Contents

    VIA EPIA LN Processor SKUs..............................4 VIA CN700 Chipset Overview ............................... 5 VIA EPIA LN-Series I/O Back Panel Layout..........................6 VIA EPIA LN-Series Layout Diagram & Mounting Holes ......................7 VIA EPIA LN-Series Layout Diagram & Height Distribution ....................8 Power Consumption ..................................9 VIA EPIA LN10000E...................................
  • Page 3: Via Epia Ln-Series Overview

    COM port and has one 10/100 Fast Ethernet port for extended broadband connectivity. The VIA EPIA LN-Series also has one PCI slot for expandability options. The VIA EPIA LN-Series is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX enclosures and power supplies.

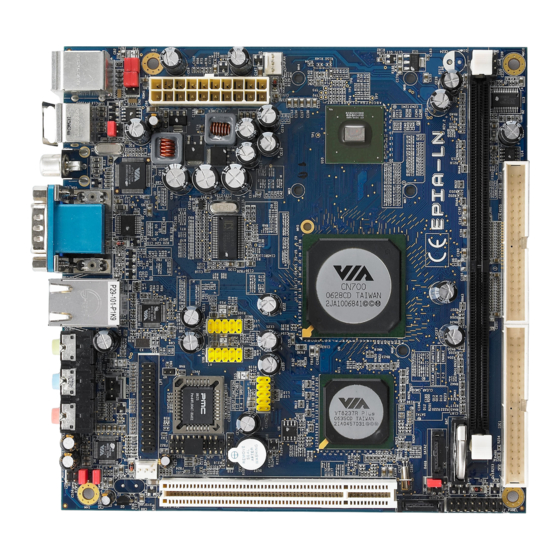

  • Page 4: Via Epia Ln-Series Layout

    EPIA LN-Series Operating Guide VIA EPIA LN-Series Layout May 23, 2007 - 2 - Version 1.01...
  • Page 5: Via Epia Ln-Series Specifications

    EPIA LN-Series Operating Guide VIA EPIA LN-Series Specifications Model Name - EPIA - LN10000E Processor - VIA C7 1.0GHz NanoBGA2 Chipset - VIA CN700 North Bridge - VIA VT8237R-Series South Bridge System Memory - 1 DDR2 533 DIMM slot - Up to 1GB memory size - Integrated VIA UniChrome™...
  • Page 6: Via Epia Ln Processor Skus

    EPIA LN-Series Operating Guide VIA EPIA LN Processor SKUs The VIA EPIA LN-Series is available in 1.0GHz speed grades. The VIA EPIA LN10000E utilizes the most efficient VIA C7™ V4 Bus NanoBGA2 processor. Suitable for small, low power, ultra efficient and secure x86 platform.
  • Page 7: Via Cn700 Chipset Overview

    EPIA LN-Series Operating Guide VIA CN700 Chipset Overview The VIA CN700 Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The CN700 features the embedded VIA UniChrome™ Pro 2D/3D MPEG-2 acceleration, DDR2 533/400MHz support, motion compensation and duo-view support to ensure a rich overall entertainment experience.
  • Page 8: Via Epia Ln-Series I/O Back Panel Layout

    EPIA LN-Series Operating Guide VIA EPIA LN-Series I/O Back Panel Layout The EPIA LN’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86 connectivity options as well as PS/2 Mouse port, PS/2 Keyboard port, VGA port, COM port, RJ45 LAN port, USB 2.0 ports, composite RCA jack, S-Video port and audio jacks.
  • Page 9: Via Epia Ln-Series Layout Diagram & Mounting Holes

    EPIA LN-Series Operating Guide VIA EPIA LN-Series Layout Diagram & Mounting Holes May 23, 2007 - 7 - Version 1.01...
  • Page 10: Via Epia Ln-Series Layout Diagram & Height Distribution

    EPIA LN-Series Operating Guide VIA EPIA LN-Series Layout Diagram & Height Distribution May 23, 2007 - 8 - Version 1.01...
  • Page 11: Power Consumption

    EPIA LN-Series Operating Guide Power Consumption Power consumption tests were carried out comparing the VIA EPIA LN10000E (running with the 1.0GHz VIA C7™ V4 Bus NanoBGA2 processor). The following tables are a comprehensive breakdown of the EPIA platform’s voltage, amp and wattage values while running common system applications.
  • Page 12 EPIA LN-Series Operating Guide D. S3 Status Measured Voltage Measured Amp. Watts Main Board +3.3V 0.032 -0.034 -0.001 Main Board +5V 0.003 -0.028 0.000 Main Board 5VSB 5.000 0.135 0.675 Main Board +12V -0.001 -0.006 0.000 Main Board Power Consumption 0.674...
  • Page 13: Power Specifications

    EPIA LN-Series Operating Guide Power Specifications The EPIA LN utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the EPIA LN platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications.
  • Page 14: Via Epia Ln-Series Microsoft And Linux Driver Support

    EPIA LN-Series Operating Guide VIA EPIA LN-Series Microsoft and Linux Driver Support Microsoft Driver Support VIA EPIA LN series offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 98/Me/2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com.
  • Page 15: Contact

    EPIA LN-Series Operating Guide Contact For more information on the VIA EPIA LN-Series Mini ITX Mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan 440 Mission Court, Suite 220 1F, No. 531, Chung Cheng Road Fremont, CA 94539...
