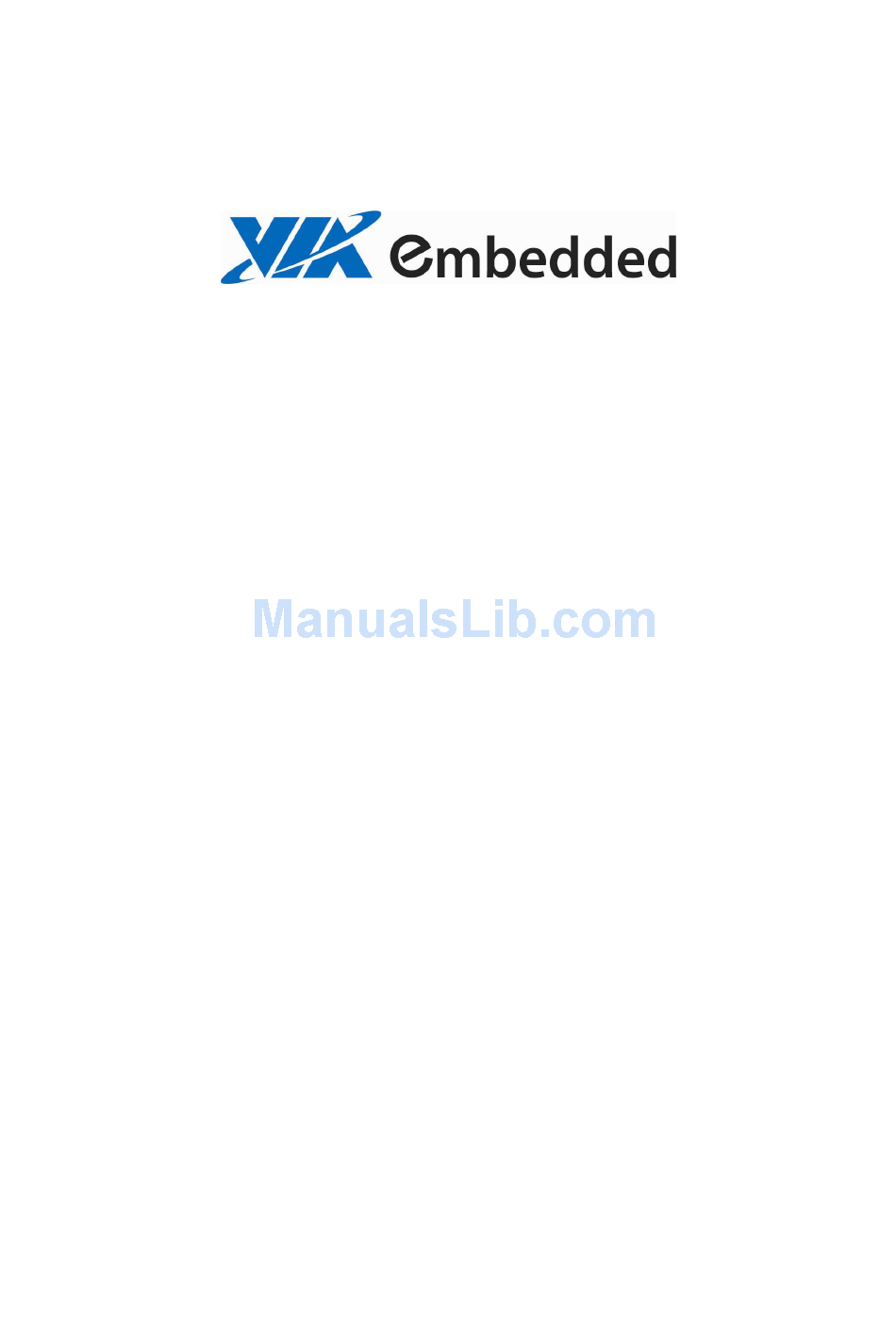

- Page 1 Operating Guide EPIA-M830 Mainboard...
-
Page 2: Table Of Contents
C. Running Network Application – Files Copy ........................11 D. Idle ........................................11 E. Running C.C. Winstone 2004..............................11 F. S3 mode......................................11 Power Specifications....................................12 VIA EPIA-M830 Microsoft and Linux Driver Support........................13 Microsoft Driver Support ..................................13 Linux Driver Support .....................................13 Contact..........................................14 June 24, 2013 - i - Version 1.05... -
Page 3: Via Epia-M830 Overview
VIA VT1708S High Definition Audio codec. In addition it supports two SATA 3Gb/s storage devices as well as IDE. The VIA EPIA-M830 is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX ®... -

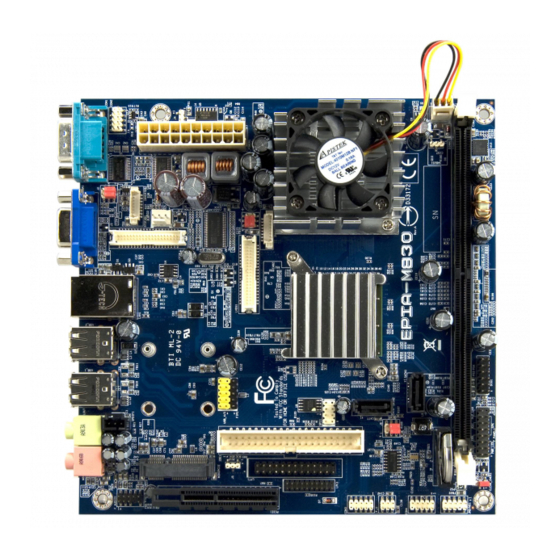

Page 4: Via Epia-M830 Layout
EPIA-M830 Operating Guide VIA EPIA-M830 Layout Figure 1: EPIA-M830 layout June 24, 2013 - 2 - Version 1.05... -
Page 5: Via Epia-M830 Specifications
EPIA-M830 Operating Guide VIA EPIA-M830 Specifications Model Name EPIA-M830-13 EPIA-M830-10 Processor - VIA Nano 1.3 GHz NanoBGA2 processor - VIA Nano 1.0 GHz NanoBGA2 (heatsink with fan) processor (fanless heatsink) Chipset - VIA VX800 Unified Digital Media IGP Chipset Super I/O... -
Page 6: Via Epia-M830 Processor Skus
EPIA-M830 Operating Guide VIA EPIA-M830 Processor SKUs The VIA EPIA-M830 is available in two speed grades as follows: • 1.3 GHz VIA Nano Processor • 1.0 GHz VIA Nano Processor (fanless) June 24, 2013 - 4 - Version 1.05... -
Page 7: Via Vx800 Chipset Overview
VIA Chrome™ 9 HC3 with 2D/3D graphics and video acceleration, DDR2 667/533 MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. Outstanding connectivity features include USB 2.0, GbE LAN, SATA 3Gb/s, and ATA/133. Figure 2: VX800 as implemented in the EPIA-M830 June 24, 2013 - 5 -... -
Page 8: Via Epia-M830 Dimensions
EPIA-M830 Operating Guide VIA EPIA-M830 Dimensions Figure 3: EPIA-M830 mounting layout and dimensions June 24, 2013 - 6 - Version 1.05... -
Page 9: Via Epia-M830 Height Distribution
EPIA-M830 Operating Guide VIA EPIA-M830 Height Distribution Figure 4: EPIA-M830 height distribution June 24, 2013 - 7 - Version 1.05... -
Page 10: Via Epia-M830 Side Profile
EPIA-M830 Operating Guide VIA EPIA-M830 Side Profile Figure 5: EPIA-M830 back panel ports June 24, 2013 - 8 - Version 1.05... -
Page 11: Power Consumption
EPIA-M830 Operating Guide Power Consumption Power consumption tests were performed on the VIA EPIA-M830 for both processor options. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA EPIA-M830 13000 A. -
Page 12: S3 Mode
EPIA-M830 Operating Guide F. S3 mode Measured Voltage Measure Amp Watts Main Board +3.3V 0.000 0.000 0.000 Main Board +5V 0.072 0.000 0.000 Main Board 5VSB 5.224 0.205 1.071 Main Board +12V 0.000 0.000 0.000 Total Power Consumption 1.071 June 24, 2013 - 10 - Version 1.05... -
Page 13: Via Epia-M830 10000
EPIA-M830 Operating Guide VIA EPIA-M830 10000 A. Playing DVD – Power DVD 8.0 Measured Voltage Measure Amp Watts Main Board +3.3V 3.241 0.946 3.066 Main Board +5V 4.878 3.089 15.068 Main Board 5VSB 5.088 0.127 0.646 Main Board +12V 12.089 0.126... -
Page 14: Power Specifications
EPIA-M830 Operating Guide Power Specifications The VIA EPIA-M830 mainboard utilizes utilizes an industry standard 20-pin ATX power connector for connecting to the power supply. Due to its ultra low power requirements, a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -
Page 15: Via Epia-M830 Microsoft And Linux Driver Support
RIVER UPPORT The VIA EPIA-M830 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VIA Embedded website at www.viaembedded.com. For embedded operating systems (Windows CE and Windows XP Embedded), the related drivers can be found in the VIA Embedded website at www.viaembedded.com. -
Page 16: Contact
EPIA-M830 Operating Guide Contact For more information on the VIA EPIA-M830 Mini-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan Headquarters Europe 1F, 531 Zhong-Zheng Road 940 Mission Court In den Dauen 6 Xindian District, New Taipei City, 23148...
