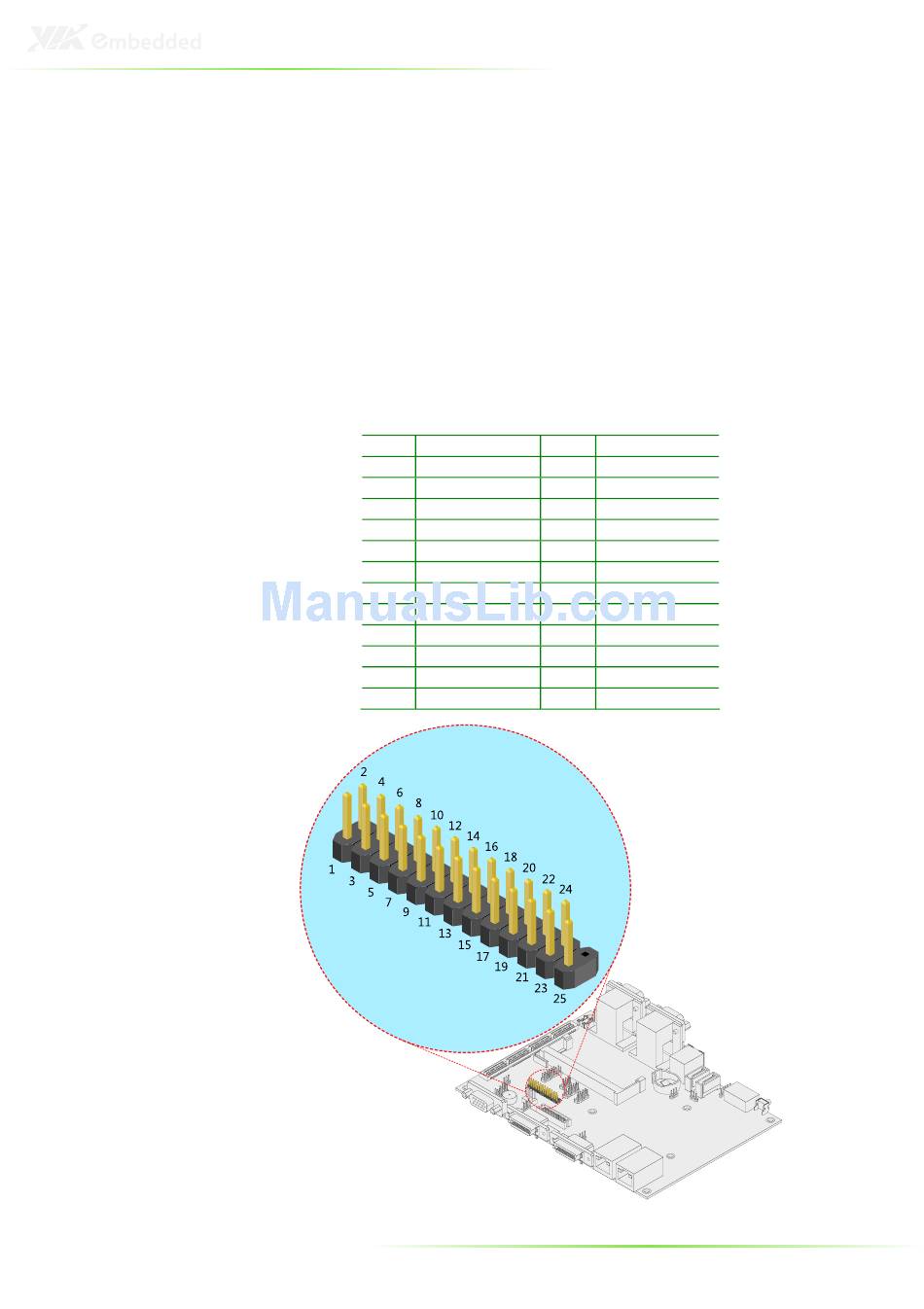

LPT pin connector

The LPT port is used to connect the board to a printer. The board
includes a multi-mode (EPP+ECP/ECP/EPP/SPP) parallel port
accessed via an onboard 26-pin flat-cable connector. An adapter
cable is required in order to use a traditional DB-25 connector. The
adapter cable has a 26-pin (2x13-pin) female connector on one
end, and a DB-25 connector on the other end.
The parallel port is designated as LPT. The parallel port interrupt
channel is designated to be IRQ7. Changing the settings between
ECP/EPP DMA channels can be done in the BIOS Setup menu.
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
Signal Pin
STROBE 2
D0 4
D1 6
D2 8
D3 10
D4 12
D5 14
D6 16
D7 18
ACK 20
BUSY 22
PE 24
SLCT 26
Signal
AUTOFD
ERR
INIT
SLCTINI
GND
GND
GND
GND
GND
GND
GND
GND
KEY
30
