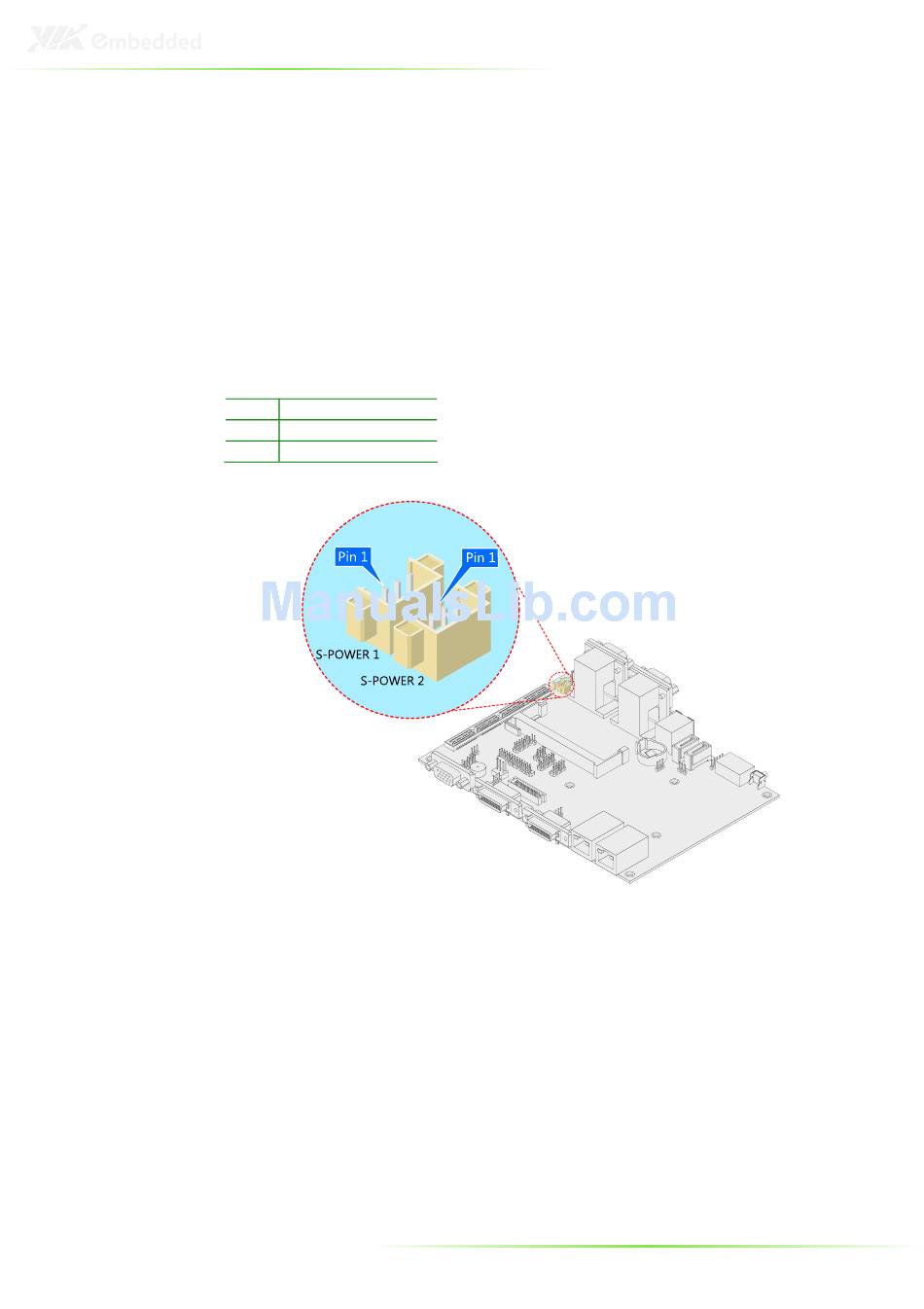

SATA-Power Connectors: S-Power 1 and
S-Power 2
The mainboard supports two 3-pin SATA power connectors with
5V power sources: S-Power 1 and S-Power 2.
When connecting the SATA power cables via onboard S-Power 1
and S-Power 2 connectors, make sure that the power plug is
inserted in the proper orientation and pins are properly aligned.
Pin
Signal
1
GND
2
+5V Power
3
+5V Power
24
