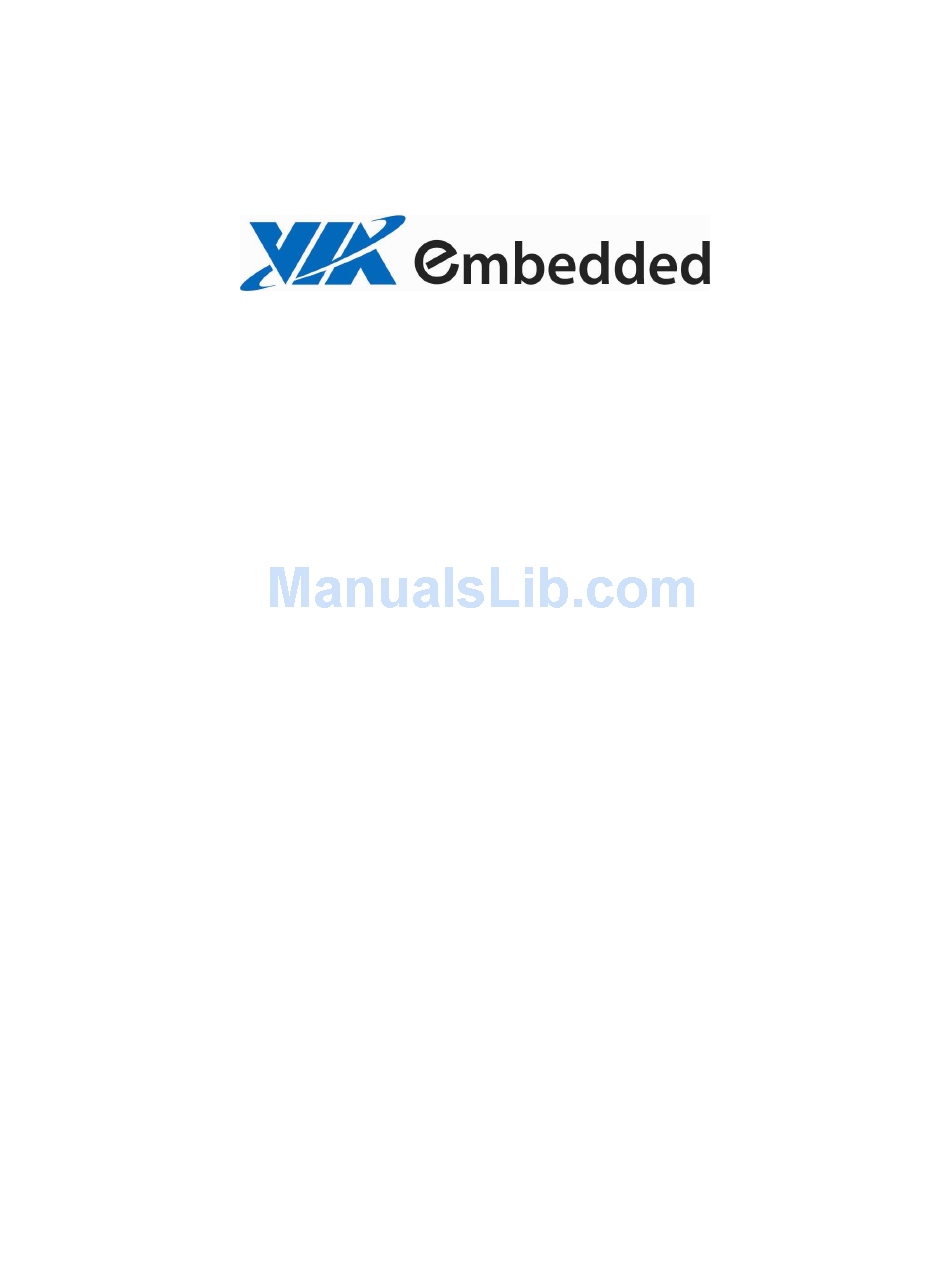

- Page 1 Operating Guide EPIA-M840 Mainboard...
-
Page 2: Table Of Contents
VIA EPIA-M840 specifications..................................3 VIA EPIA-M840 processor SKUs..................................4 VIA VX800 chipset overview..................................... 5 VIA EPIA-M840 mounting hole and board dimensions ........................6 VIA EPIA-M840 component placement and height distribution ....................... 7 VIA EPIA-M840 side profile....................................8 Power consumption......................................9 VIA EPIA-M840 1.6 GHz (ATX).................................. -
Page 3: Via Epia-M840 Overview
VIA VT1708S High Definition Audio codec. In addition it supports two SATA 3Gb/s storage devices as well as IDE and CompactFlash Type II. The VIA EPIA-M840 is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX enclosures ®... -
Page 4: Via Epia-M840 Layout
EPIA-M840 Operating Guide VIA EPIA-M840 layout Figure 1: EPIA-M840 layout July 27, 2010 - 2 - Version 1.02... -
Page 5: Via Epia-M840 Specifications
EPIA-M840 Operating Guide VIA EPIA-M840 specifications Model Name EPIA-M840-16 EPIA-M840-12 Processor - VIA 1.3 GHz Nano processor - VIA 1.2CHz Nano processor - processor speed at 1.6 GHz - processor speed at 1.2 GHz - Heatsink with fan - Fanless heatsink... -
Page 6: Via Epia-M840 Processor Skus
EPIA-M840 Operating Guide VIA EPIA-M840 processor SKUs The VIA EPIA-M840 is available in two speed grades as follows: • VIA 1.3 GHz Nano processor running at 1.6 GHz • VIA 1.2GHz Nano processor running at 1.2 GHz July 27, 2010 - 4 - Version 1.02... -
Page 7: Via Vx800 Chipset Overview
Chrome9™ HC3 with 2D/3D graphics and video acceleration, DDR2 533/667 MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. Outstanding connectivity features include USB 2.0, GbE LAN, SATA 3Gb/s, and ATA/133. Figure 2: VX800 as implemented in the EPIA-M840 July 27, 2010 - 5 -... -
Page 8: Via Epia-M840 Mounting Hole And Board Dimensions
EPIA-M840 Operating Guide VIA EPIA-M840 mounting hole and board dimensions Figure 3: EPIA-M840 mounting hole and board dimensions July 27, 2010 - 6 - Version 1.02... -
Page 9: Via Epia-M840 Component Placement And Height Distribution
EPIA-M840 Operating Guide VIA EPIA-M840 component placement and height distribution Figure 4: EPIA-M840 component placement and height distribution July 27, 2010 - 7 - Version 1.02... -
Page 10: Via Epia-M840 Side Profile
EPIA-M840 Operating Guide VIA EPIA-M840 side profile Figure 5: EPIA-M840 back panel ports July 27, 2010 - 8 - Version 1.02... -
Page 11: Power Consumption
EPIA-M840 Operating Guide Power consumption Power consumption tests were performed on the VIA EPIA-M840 for both processor options. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA EPIA-M840 1.6 GH (ATX) A. -
Page 12: Idle
EPIA-M840 Operating Guide E. Idle Measured Voltage Measure Amp Watts Main Board +3.3V 3.335 1.069 3.565 Main Board +5V 5.075 1.383 7.019 Main Board 5VSB 4.961 0.105 0.521 Main Board +12V 12.051 0.173 2.085 Total Power Consumption 13.190 F. Running C.C. Winstone 2004... -
Page 13: Via Epia-M840 1.6 Ghz (Dc)
EPIA-M840 Operating Guide VIA EPIA-M840 1.6 GH (DC) A. Playing DVD – Power DVD 5.0 Measured Voltage Measure Amp Watts DC-in +12V 11.820 2.534 29.952 Total Power Consumption 29.952 B. Playing MP3 – Media Player Measured Voltage Measure Amp Watts DC-in +12V 11.800... -
Page 14: Via Epia-M840 1.2 Ghz (Atx)
EPIA-M840 Operating Guide VIA EPIA-M840 1.2 GH (ATX) A. Playing DVD – Power DVD 5.0 Measured Voltage Measure Amp Watts Main Board +3.3V 3.323 1.045 3.473 Main Board +5V 5.066 1.406 7.123 Main Board 5VSB 4.954 0.100 0.495 Main Board +12V 12.046... -
Page 15: Running C.c. Winstone 2004
EPIA-M840 Operating Guide F. Running C.C. Winstone 2004 Measured Voltage Measure Amp Watts Main Board +3.3V 3.316 1.034 3.429 Main Board +5V 5.052 1.889 9.543 Main Board 5VSB 4.948 0.103 0.510 Main Board +12V 12.051 0.178 2.145 Total Power Consumption 15.627... -
Page 16: Via Epia-M840 1.2 Ghz (Dc)
EPIA-M840 Operating Guide VIA EPIA-M840 1.2 GH (DC) A. Playing DVD – Power DVD 5.0 Measured Voltage Measure Amp Watts DC-in +12V 11.854 2.213 26.233 Total Power Consumption 26.233 B. Playing MP3 – Media Player Measured Voltage Measure Amp Watts DC-in +12V 11.845... -
Page 17: Power Specifications
EPIA-M840 Operating Guide Power Specifications The VIA EPIA-M840 mainboard is available with two power options: ATX and 12V DC. The ATX SKU utilizes an industry standard 20-pin ATX power connector for connecting to the power supply. The DC-in SKU utilizes the industry standard ATX12V DC connector. -
Page 18: Via Epia-M840 Microsoft And Linux Driver Support
RIVER UPPORT The VIA EPIA-M840 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows CE and Windows XP Embedded), the related drivers can be found in the VIA Embedded website at www.viaembedded.com. -
Page 19: Contact Information
EPIA-M840 Operating Guide Contact information For more information on the VIA EPIA-M840 Mini-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com MERICA 940 Mission Court Fremont, CA 94539 Tel: (510) 683 3300 Fax: (510) 687 4654 Email: vpsd_sales@viatech.com TAIWAN 1F, No.
