2.2.5 Network Connectivity, and Data Rate

When you plug in the Ethernet cable or power supply:
•
•
•
2.2.5.1 Verify Network Activity
The square, yellow Activity light blinks when there is network activity.
Operations Guide
The square, green Link light above the Ethernet port indicates that the network connection has
been established (see Figure
baud rate:
This light is yellow at 10 Mbps.
It is orange at 100 Mbps.
Installing the VoIP Indoor Intercom with Keypad (Flush-Mounted)
2-7). The Link light changes color to confirm the auto-negotiated

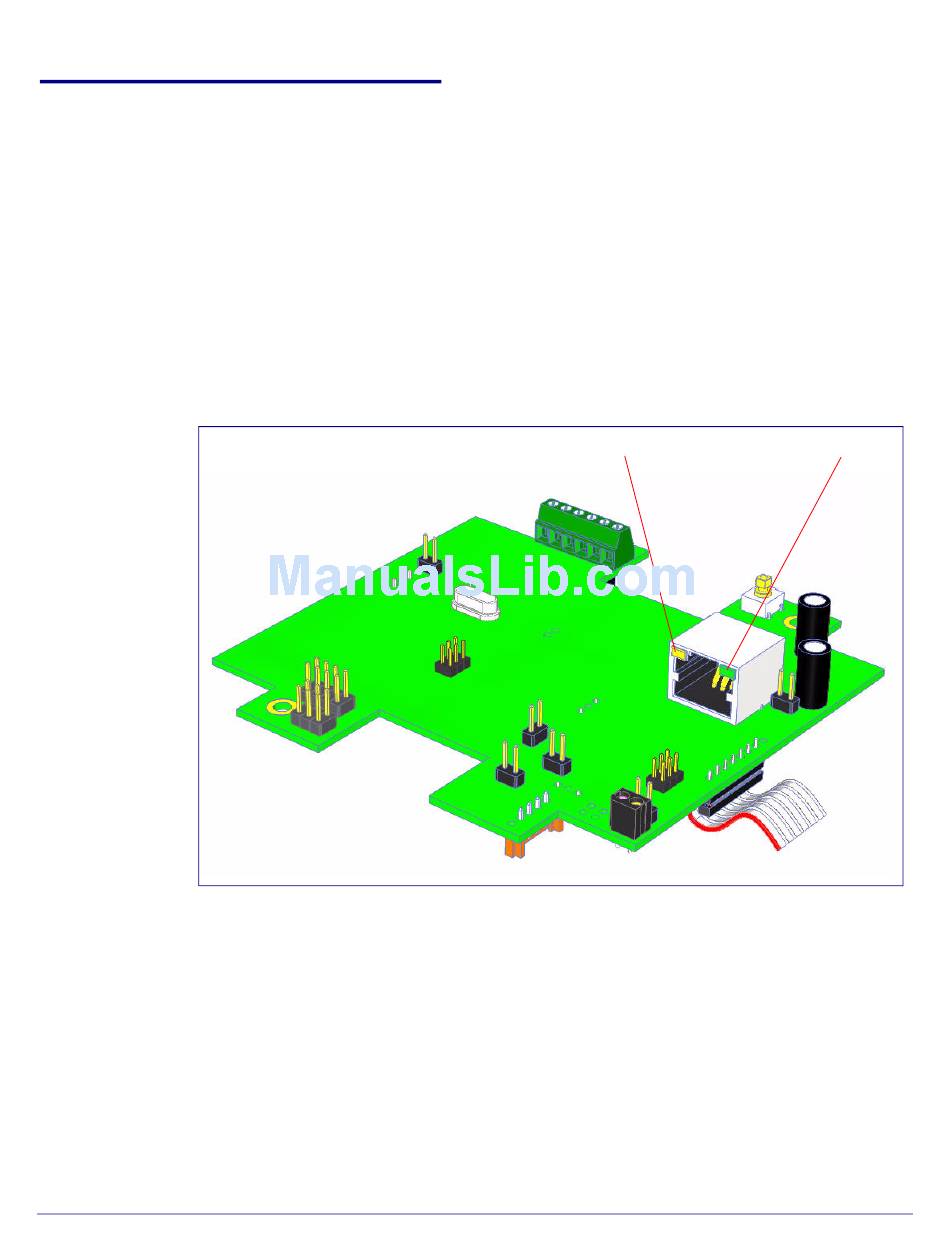

Figure 2-7. Network Connector
930370N
Activity
