Figure A-1
Mounting
Screw (4x)
To mount the Intercom:
1. Cut out a section of the wall that is 6.03 inches [153 mm] from left to right and 5.28 inches [134
2. Use a flat blade screwdriver to remove the knockout (KO) from the back of the gang box.
3. Feed the network cable from the wall cutout through the knockout of gang box and into J1 of the
4. Install the gang box into the wall cutout.
5. Tighten the four flag nuts with a Phillips screwdriver.
6. Place the Intercom over the gang box.
7. Secure the Intercom to the gang box with the four mounting screws.
Operations Guide
shows a wall mounting option.

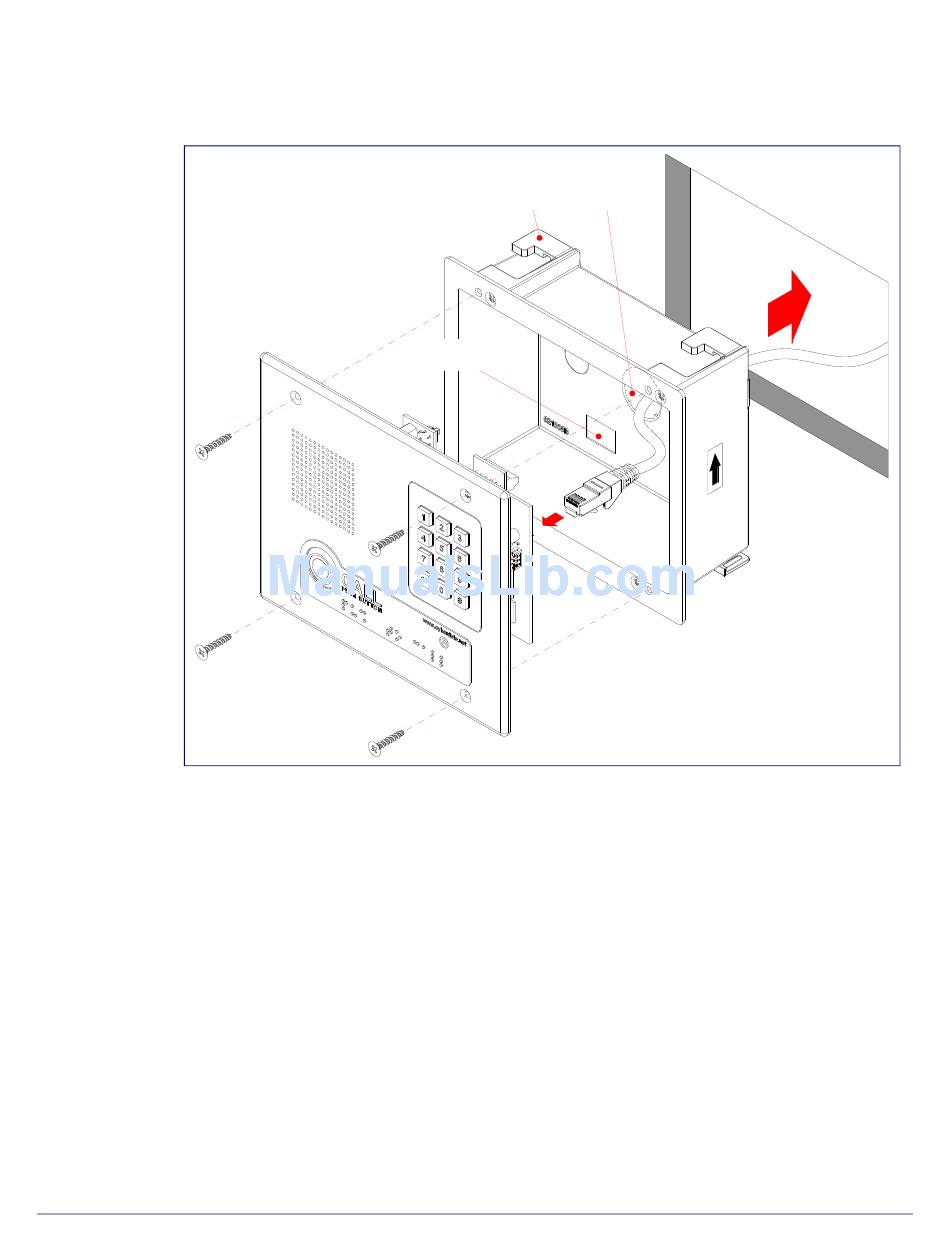

Figure A-1. Wall Mounting Option
mm] from top to bottom.
Intercom.
Mount the VoIP Indoor Intercom with Keypad (Flush-Mounted)
Flagnut (4x)
Reflective
Tape Here
VoIP Indoor Intercom
with Keypad Assembly
930370N
KO
Wall Cutout
Gang Box
to J1
CyberData Corporation
70
Network
Cable
