2.2 VoIP Indoor Intercom with Keypad (Flush-Mounted)
Setup

2.2.1 Connections

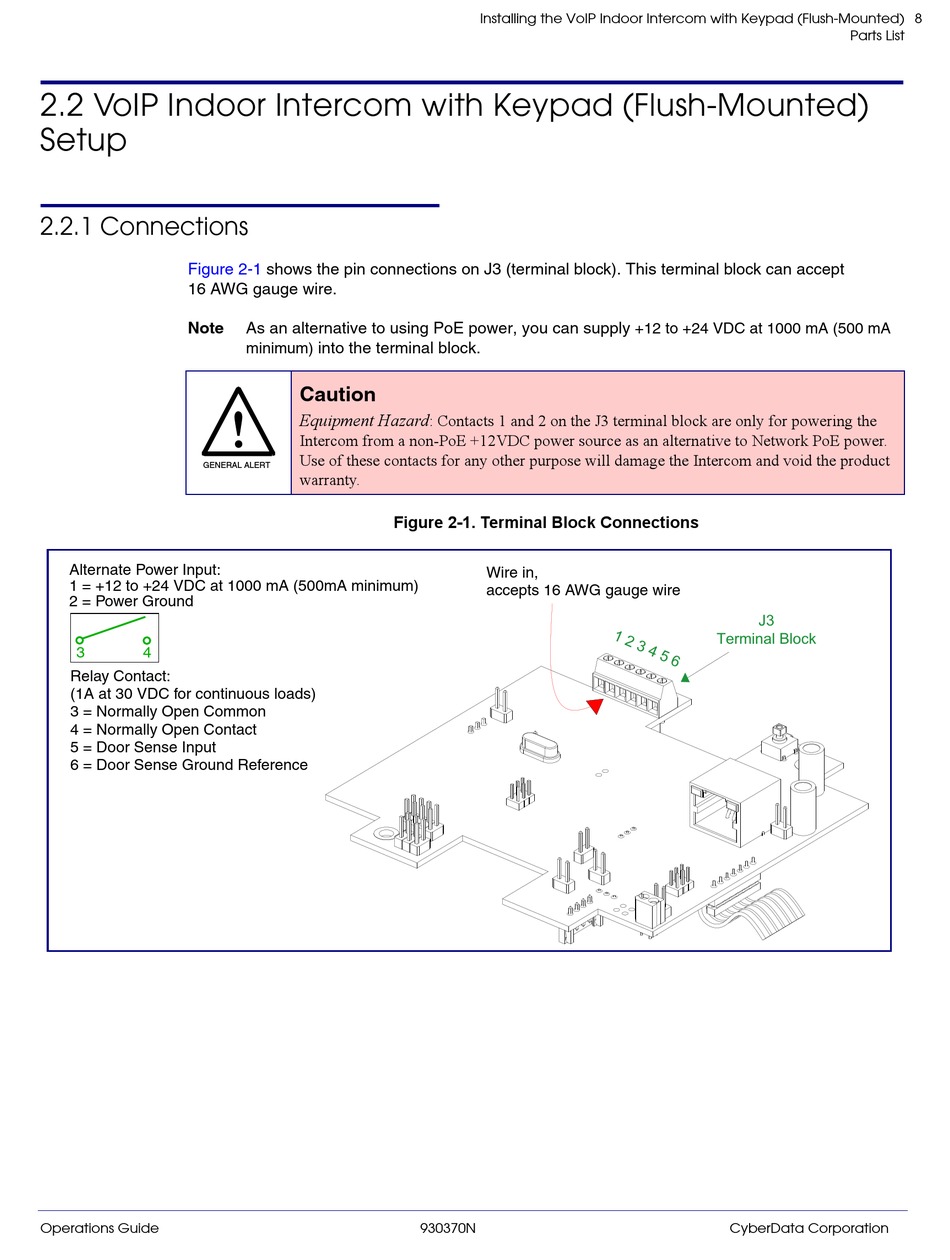

Figure 2-1
16 AWG gauge wire.
Note
GENERAL ALERT
Alternate Power Input:
1 = +12 to +24 VDC at 1000 mA (500mA minimum)
2 = Power Ground
3 4
Relay Contact:
(1A at 30 VDC for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
Operations Guide
shows the pin connections on J3 (terminal block). This terminal block can accept
As an alternative to using PoE power, you can supply
minimum) into the terminal block.
Caution
Equipment Hazard : Contacts 1 and 2 on the J3 terminal block are only for powering the
Intercom from a non-PoE +12VDC power source as an alternative to Network PoE power.
Use of these contacts for any other purpose will damage the Intercom and void the product
warranty.
Figure 2-1. Terminal Block Connections
930370N
Installing the VoIP Indoor Intercom with Keypad (Flush-Mounted)
+12 to +24 VDC at 1000 mA (500 mA
Wire in,
Wire in,
accept wire range
accepts 16 AWG gauge wire
up to 16 AWG
Parts List
J3
Altern
Terminal Block
1 = +
2 = P
3
Relay
(2A a
for c
3 = N
4 = N
5 = D
6 = D
