Table 2-18
Web Page Item
Enable Event Generation
Remote Event Server
Remote Event Server IP
Remote Event Server Port
Remote Event Server URL
Events
Enable Button Events
Enable Call Active Events
Enable Call Terminated Events
Enable Relay Activated Events
Enable Relay Deactivated Events
Enable Ring Events
Enable Night Ring Events
Enable Multicast Start Events
Enable Multicast Stop Events
Enable Power On Events
Enable Door Sensor Events
Enable Intrusion Sensor Events
Enable Security Events
Enable 60 Second Heartbeat Events
Operations Guide

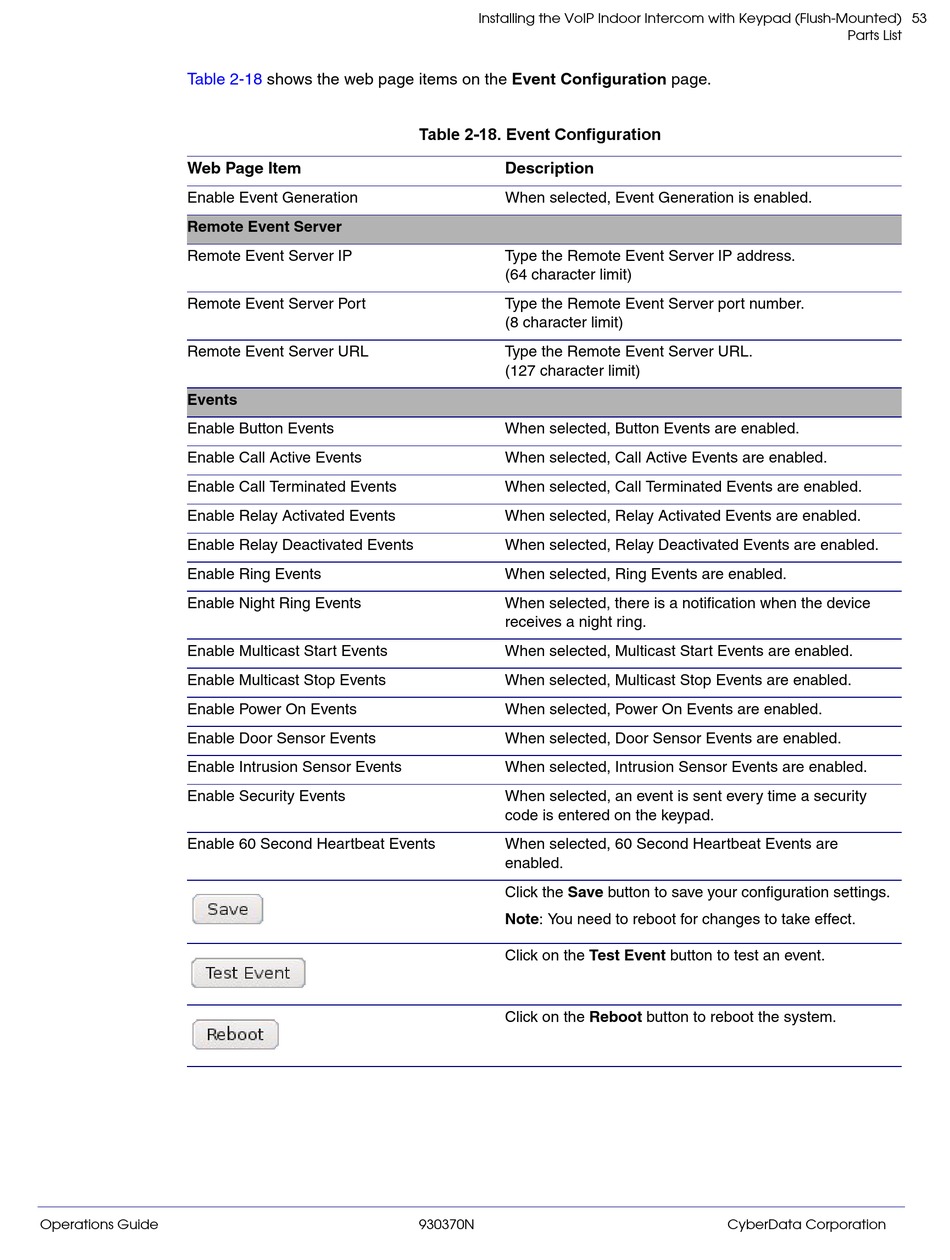

shows the web page items on the Event Configuration page.
Table 2-18. Event Configuration
930370N
Installing the VoIP Indoor Intercom with Keypad (Flush-Mounted)
Description
When selected, Event Generation is enabled.
Type the Remote Event Server IP address. 
(64 character limit)
Type the Remote Event Server port number.
(8 character limit)
Type the Remote Event Server URL.
(127 character limit)
When selected, Button Events are enabled.
When selected, Call Active Events are enabled.
When selected, Call Terminated Events are enabled.
When selected, Relay Activated Events are enabled.
When selected, Relay Deactivated Events are enabled.
When selected, Ring Events are enabled.
When selected, there is a notification when the device
receives a night ring.
When selected, Multicast Start Events are enabled.
When selected, Multicast Stop Events are enabled.
When selected, Power On Events are enabled.
When selected, Door Sensor Events are enabled.
When selected, Intrusion Sensor Events are enabled.
When selected, an event is sent every time a security
code is entered on the keypad.
When selected, 60 Second Heartbeat Events are
enabled.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Test Event button to test an event.
Click on the Reboot button to reboot the system.
