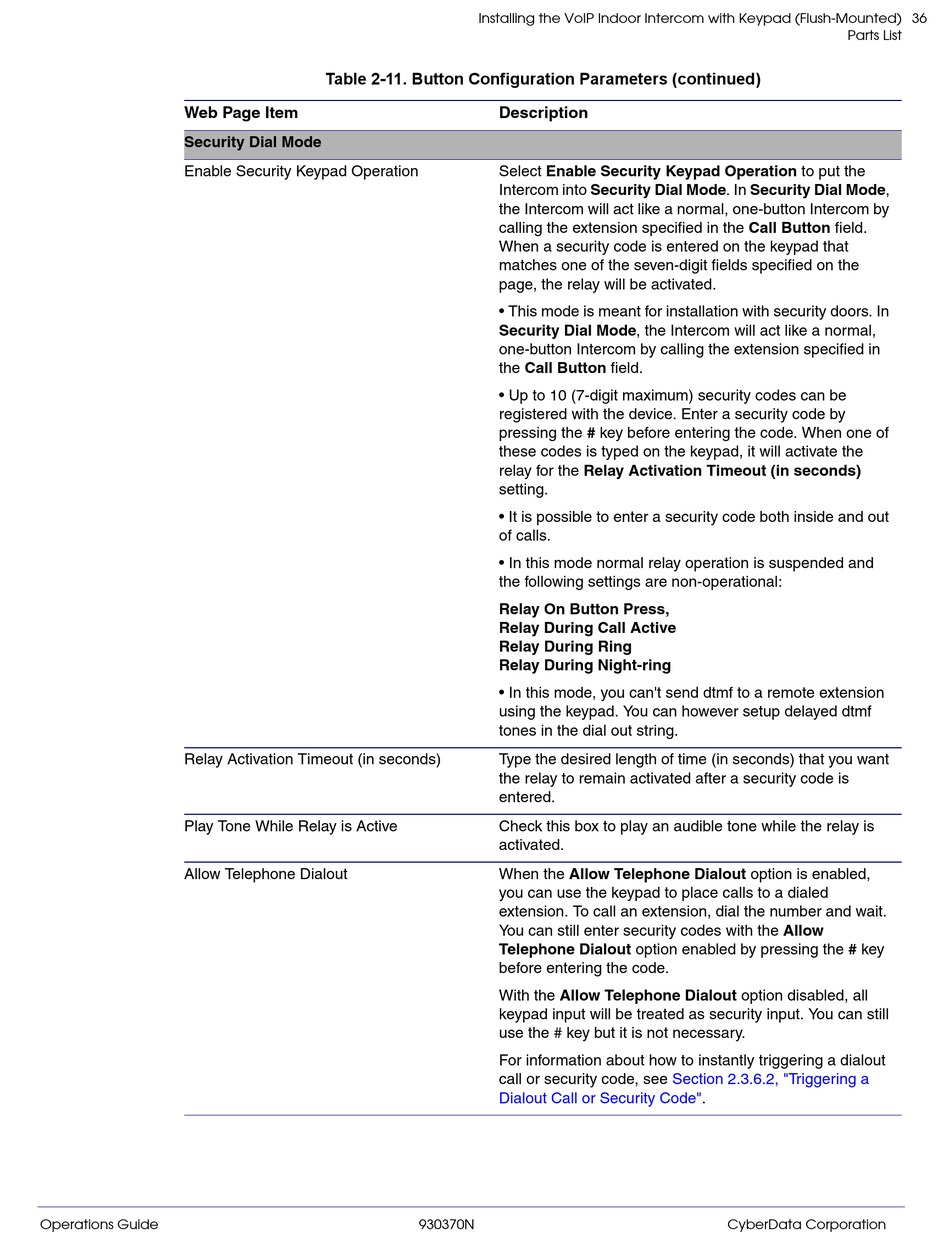

CyberData 011123x Operation Manual page 43

Web Page Item
Security Dial Mode
Enable Security Keypad Operation
Relay Activation Timeout (in seconds)
Play Tone While Relay is Active
Allow Telephone Dialout
Operations Guide
Installing the VoIP Indoor Intercom with Keypad (Flush-Mounted)
Table 2-11. Button Configuration Parameters (continued)
Description
Select Enable Security Keypad Operation to put the
Intercom into Security Dial Mode. In Security Dial Mode,
the Intercom will act like a normal, one-button Intercom by
calling the extension specified in the Call Button field.
When a security code is entered on the keypad that
matches one of the seven-digit fields specified on the
page, the relay will be activated.
• This mode is meant for installation with security doors. In
Security Dial Mode, the Intercom will act like a normal,
one-button Intercom by calling the extension specified in
the Call Button field.
• Up to 10 (7-digit maximum) security codes can be
registered with the device. Enter a security code by
pressing the # key before entering the code. When one of
these codes is typed on the keypad, it will activate the
relay for the Relay Activation Timeout (in seconds)
setting.
• It is possible to enter a security code both inside and out
of calls.
• In this mode normal relay operation is suspended and
the following settings are non-operational:
Relay On Button Press,
Relay During Call Active
Relay During Ring
Relay During Night-ring
• In this mode, you can't send dtmf to a remote extension
using the keypad. You can however setup delayed dtmf
tones in the dial out string.
Type the desired length of time (in seconds) that you want
the relay to remain activated after a security code is
entered.
Check this box to play an audible tone while the relay is
activated.
When the Allow Telephone Dialout option is enabled,
you can use the keypad to place calls to a dialed
extension. To call an extension, dial the number and wait.
You can still enter security codes with the Allow
Telephone Dialout option enabled by pressing the # key
before entering the code.
With the Allow Telephone Dialout option disabled, all
keypad input will be treated as security input. You can still
use the # key but it is not necessary.
For information about how to instantly triggering a dialout
call or security code, see
Dialout Call or Security
930370N
Section 2.3.6.2, "Triggering a
Code".
