2.2 VoIP Indoor Intercom with Keypad (Flush-Mounted)
Setup

2.2.1 Connections

Figure 2-1
16 AWG gauge wire.
Note
Alternate Power Input:
1 = +12 to +24 VDC at 1000mA (500mA minimum)
2 = Power Ground
3 4
Relay Contact:
(1A at 30 VDC for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
Operations Guide
shows the pin connections on J3 (terminal block). This terminal block can accept
As an alternative to using PoE power, you can supply +12 to +24 VDC at 1000 ma (500 mA
minimum) into the terminal block.

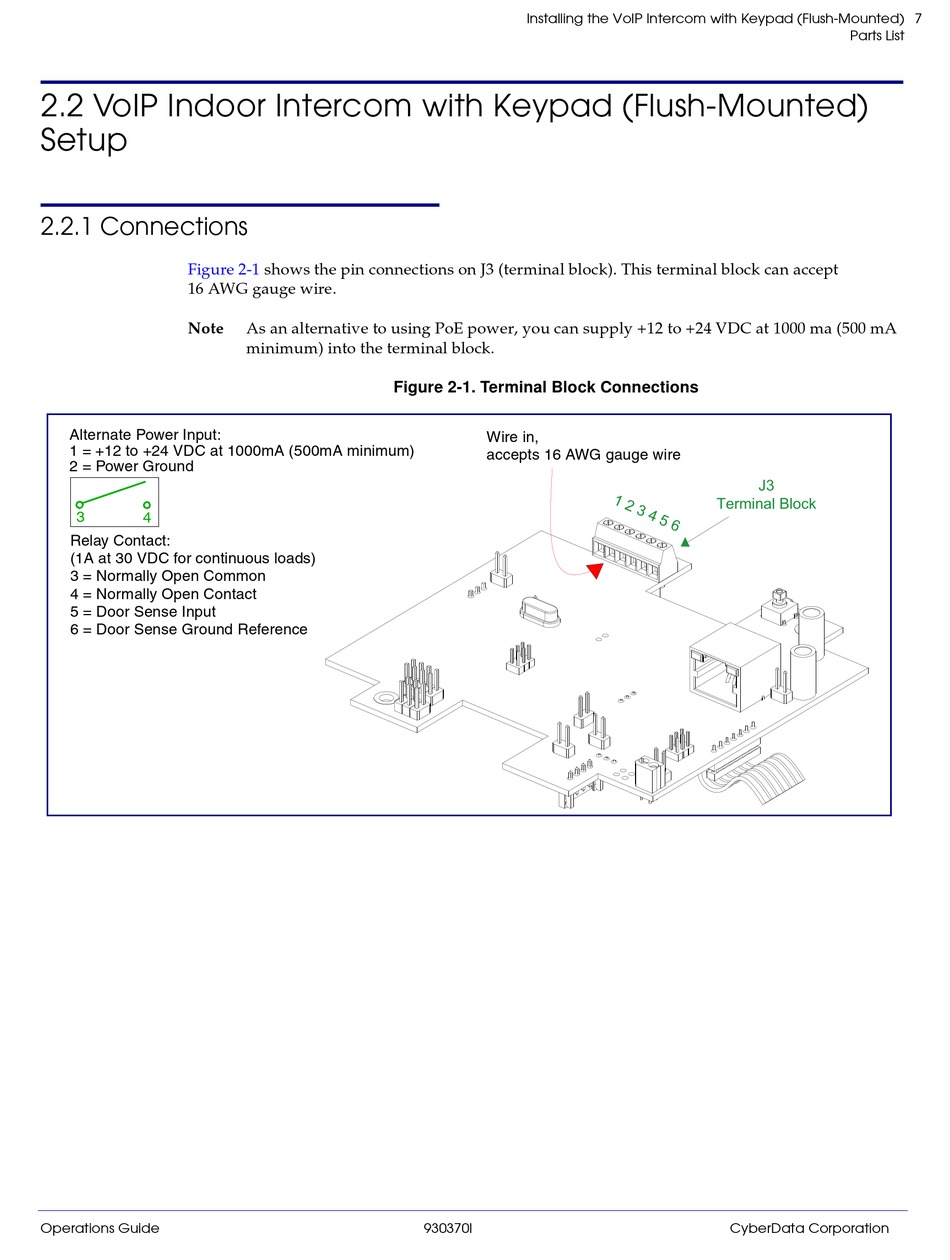

Figure 2-1. Terminal Block Connections
930370I
Installing the VoIP Intercom with Keypad (Flush-Mounted)
Wire in,
Wire in,
accept wire range
up to 16 AWG
accepts 16 AWG gauge wire
Parts List
J3
Altern
Terminal Block
1 = +
2 = P
3
Relay
(2A a
for c
3 = N
4 = N
5 = D
6 = D
