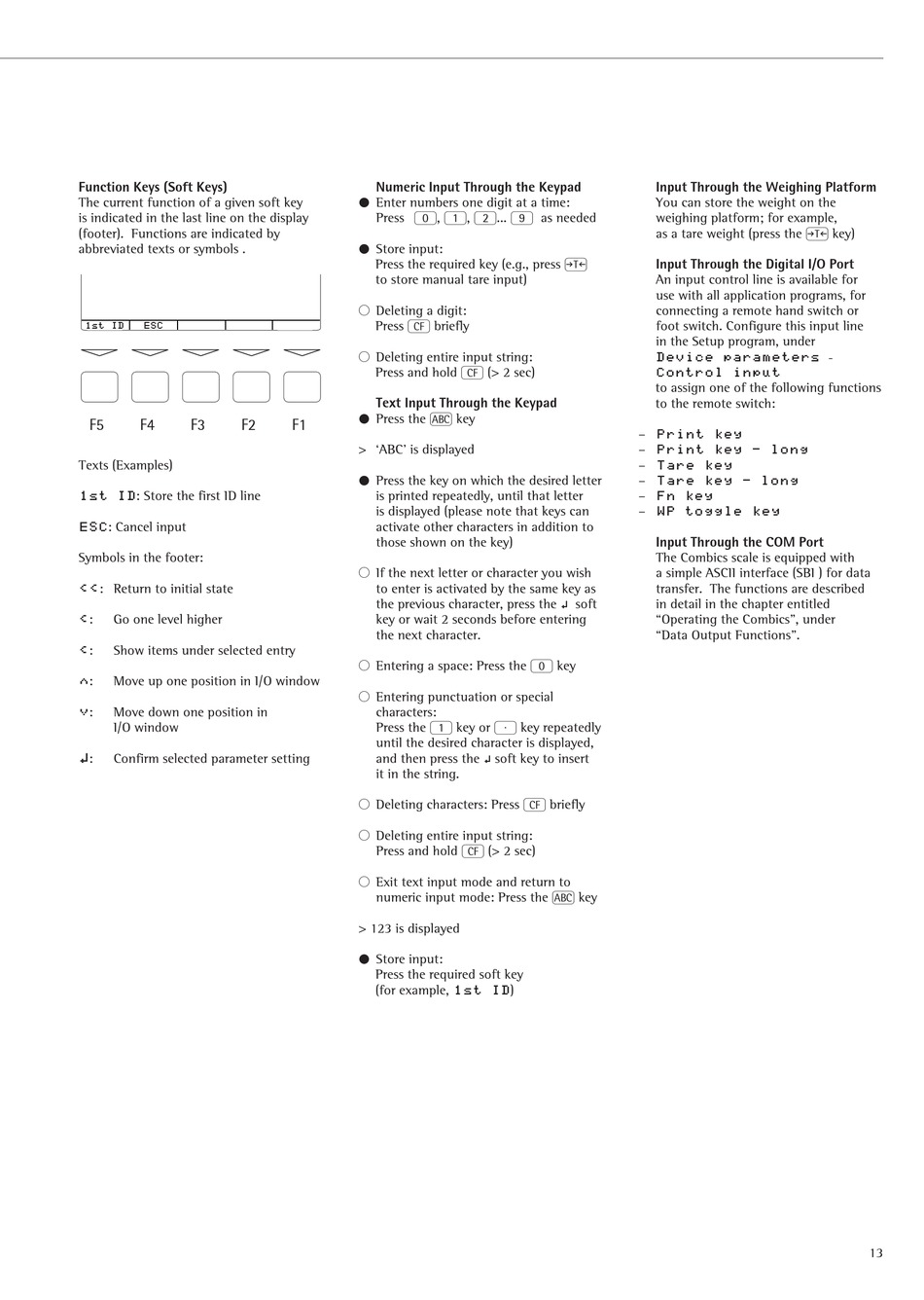

Function Keys (Soft Keys)
The current function of a given soft key
is indicated in the last line on the display
(footer). Functions are indicated by
abbreviated texts or symbols .
1st ID ESC
F5 F4 F3 F2
Texts (Examples)
1st ID
: Store the first ID line
ESC
: Cancel input
Symbols in the footer:
: Return to initial state
oo
: Go one level higher
o
: Show items under selected entry
o
: Move up one position in I/O window
Q
: Move down one position in
q
I/O window
: Confirm selected parameter setting
l
Numeric Input Through the Keypad
§ Enter numbers one digit at a time:
Press 0, 1, 2... 9 as needed
§ Store input:
Press the required key (e.g., press )
to store manual tare input)
$ Deleting a digit:
Press c briefly
$ Deleting entire input string:
Press and hold c (> 2 sec)
Text Input Through the Keypad
§ Press the a key
F1
> 'ABC' is displayed
§ Press the key on which the desired letter
is printed repeatedly, until that letter
is displayed (please note that keys can
activate other characters in addition to
those shown on the key)
$ If the next letter or character you wish
to enter is activated by the same key as
the previous character, press the
key or wait 2 seconds before entering
the next character.
$ Entering a space: Press the 0 key
$ Entering punctuation or special
characters:
Press the 1 key or . key repeatedly
until the desired character is displayed,
and then press the
it in the string.
$ Deleting characters: Press c briefly
$ Deleting entire input string:
Press and hold c (> 2 sec)
$ Exit text input mode and return to
numeric input mode: Press the a key
> 123 is displayed
§ Store input:
Press the required soft key
1st ID
(for example,
Input Through the Weighing Platform
You can store the weight on the
weighing platform; for example,
as a tare weight (press the ) key)
Input Through the Digital I/O Port
An input control line is available for
use with all application programs, for
connecting a remote hand switch or
foot switch. Configure this input line
in the Setup program, under
Device parameters -
Control input
to assign one of the following functions
to the remote switch:
Print key
–
Print key - long
–
Tare key
–
Tare key - long
–
Fn key
–
WP toggle key
–
Input Through the COM Port
The Combics scale is equipped with
a simple ASCII interface (SBI ) for data
transfer. The functions are described
soft in detail in the chapter entitled
l
"Operating the Combics", under
"Data Output Functions".
soft key to insert
l
)
