Sartorius CW3P Operating Instructions Manual page 72

Overview

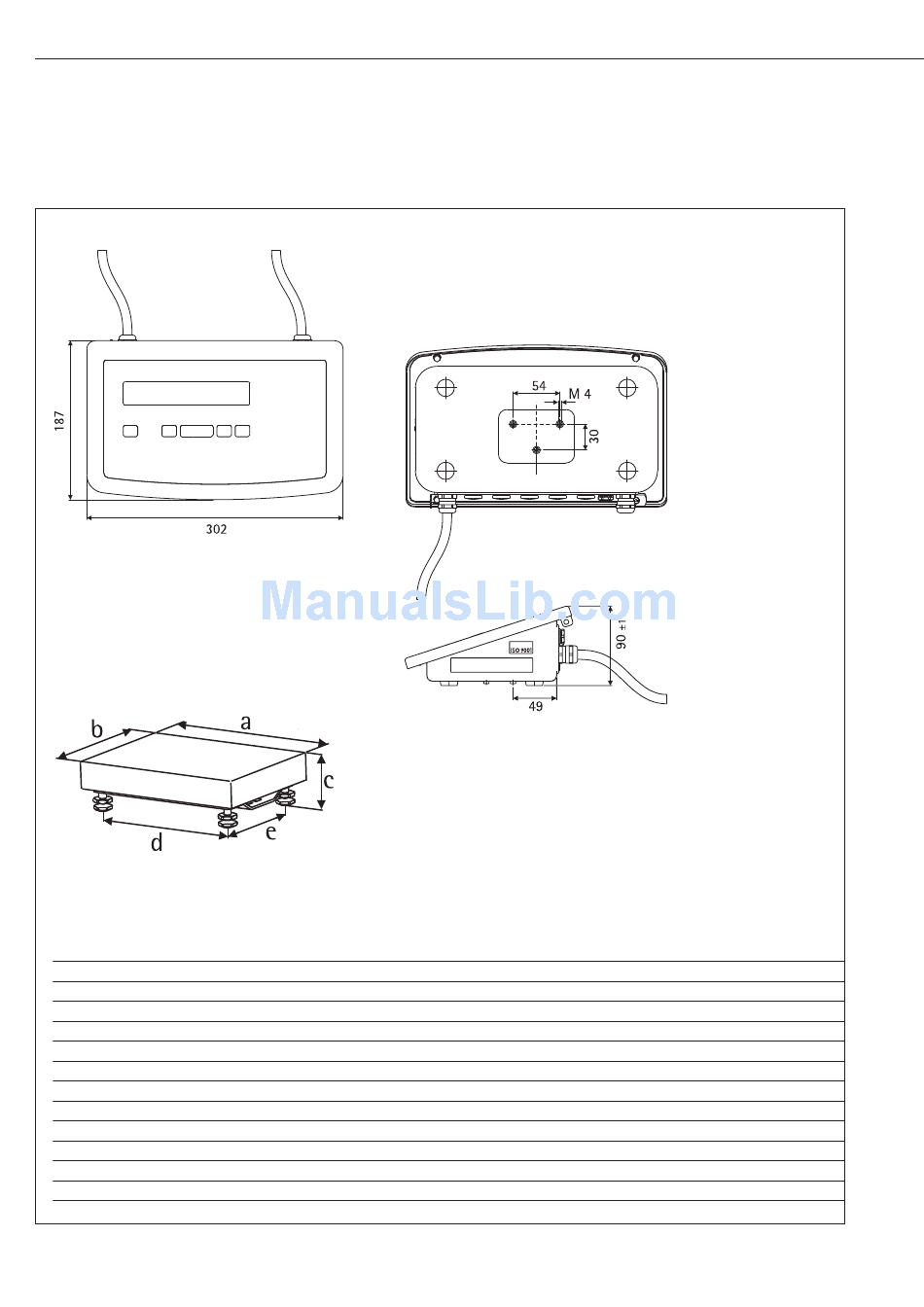

Dimensions (Scale Drawings)
Indicators:
All dimensions are given in millimeters
Weighing Platforms:
Standard and Stainless Steel Versions
ength Width
L
b
a
(mm) (mm)
320 240
400 300
500 400
650 500
800 600
800 800
1,000 800
1,000 1,000
1,250 1,000
1,500 1,250
1,500 1,500
2000 1500
72
Height, Height,
standard stainless
version steel version
c c
(mm) (mm)
72 82
94 101
96 104
145 90
145 90
90 90
90 90
90 90
90 90
90 90
90 90
100 100
Distance Distance
between feet, between feet,
standard version stainless steel version
d e d
(mm) (mm) (mm)
264 184 264
344 244 344
443 343 443
530 434 550
680 534 700
604 604 604
804 604 804
804 804 804
1,054 804 1,054
1,304 1,054 1,304
1,304 1,304 1,304
1804 1304 1804
Cable length
e
(mm) (m) approx.
184 1.5
244 1.5
343 1.5 (painted) | 3.0 (stainless steel)
400 3.0
500 3.0
604 6.0
604 6.0
804 6.0
804 6.0
1,054 6.0
1,304 6.0
1304 6.0
