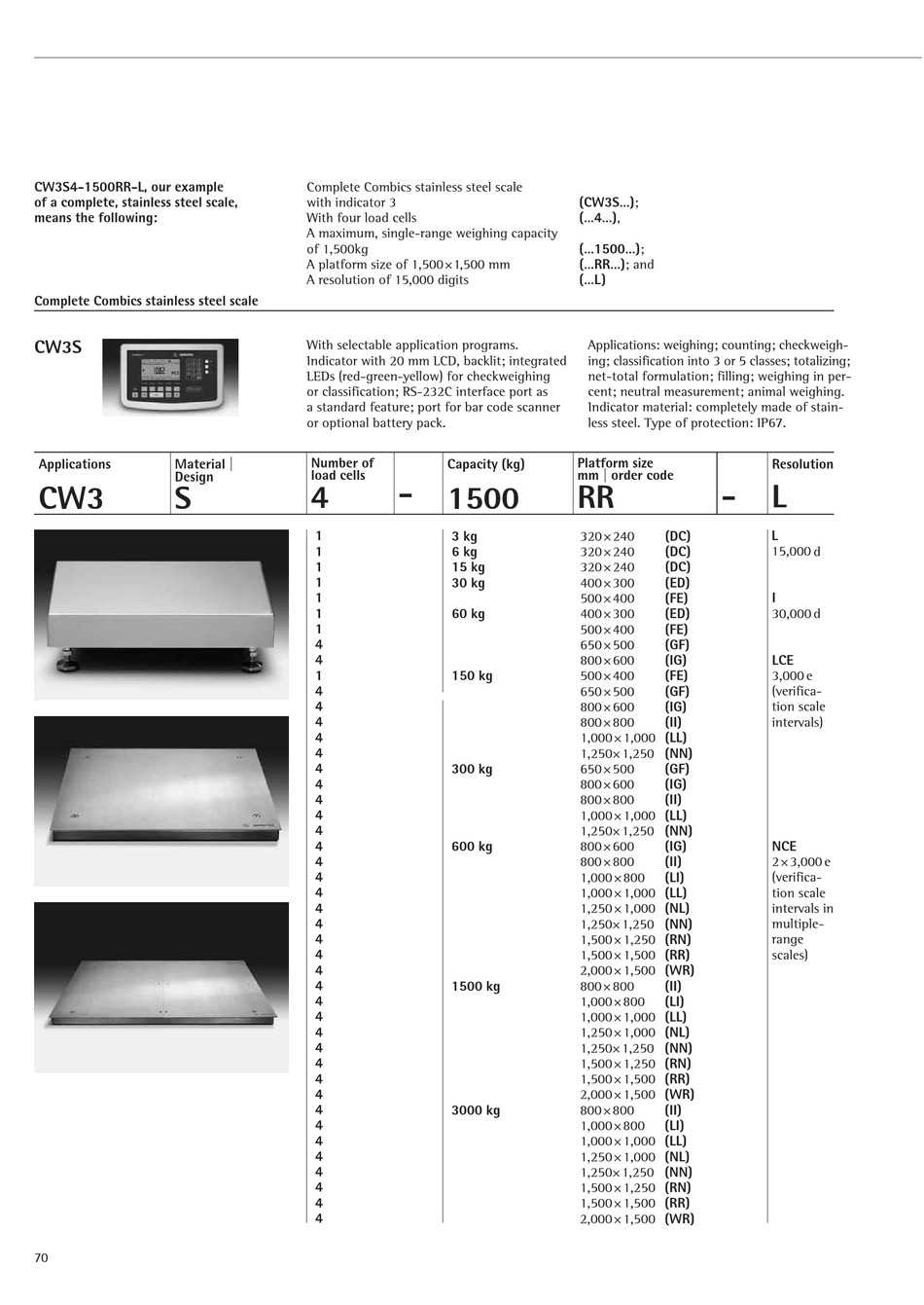

Sartorius CW3P Operating Instructions Manual page 70

CW3S4-1500RR-L, our example
of a complete, stainless steel scale,
means the following:
Complete Combics stainless steel scale
CW3S
Applications Material |
Design
CW3 S
70
Complete Combics stainless steel scale
with indicator 3
With four load cells
A maximum, single-range weighing capacity
of 1,500kg
A platform size of 1,500+1,500 mm
A resolution of 15,000 digits
With selectable application programs.
Indicator with 20 mm LCD, backlit; integrated
LEDs (red-green-yellow) for checkweighing
or classification; RS-232C interface port as
a standard feature; port for bar code scanner
or optional battery pack.
Number of
Capacity (kg)
load cells
-
4
1500
1
3 kg
1
6 kg
1
15 kg
1
30 kg
1
1
60 kg
1
4
4
1 150 kg
4
4
4
4
4
4 300 kg
4
4
4
4
4 600 kg
4
4
4
4
4
4
4
4
4
1500 kg
4
4
4
4
4
4
4
4 3000 kg
4
4
4
4
4
4
4
(CW3S...);
(...4...),
(...1500...);
(...RR...); and
(...L)
Applications: weighing; counting; checkweigh-
ing; classification into 3 or 5 classes; totalizing;
net-total formulation; filling; weighing in per-
cent; neutral measurement; animal weighing.
Indicator material: completely made of stain-
less steel. Type of protection: IP67.
Platform size
mm | order code
-
RR
320+240 (DC)
320+240 (DC)
320+240 (DC)
400+300 (ED)
500+400 (FE)
400+300 (ED)
500+400 (FE)
(GF)
650+500
800+600 (IG)
500+400 (FE)
650+500 (GF)
800+600 (IG)
800+800 (II)
1,000+1,000 (LL)
1,250+1,250 (NN)
650+500 (GF)
800+600 (IG)
800+800 (II)
1,000+1,000 (LL)
1,250+ 1,250 (NN)
800+600 (IG)
800+800 (II)
1,000+800 (LI)
1,000+1,000 (LL)
1,250+1,000 (NL)
1,250+1,250 (NN)
1,500+1,250 (RN)
1,500+1,500 (RR)
2,000+1,500 (WR)
800+800 (II)
1,000+800 (LI)
1,000+1,000 (LL)
1,250+1,000 (NL)
1,250+1,250 (NN)
1,500+1,250 (RN)
1,500+1,500 (RR)
2,000+1,500 (WR)
800+800 (II)
1,000+800 (LI)
1,000+1,000 (LL)
1,250+1,000 (NL)
1,250+ 1,250 (NN)
1,500+1,250 (RN)
1,500+1,500 (RR)
2,000+1,500 (WR)
Resolution
L
L
15,000 d
I
30,000 d
LCE
3,000 e
(verifica-
tion scale
intervals)
NCE
2 +3,000 e
(verifica-
tion scale
intervals in
multiple-
range
scales)
