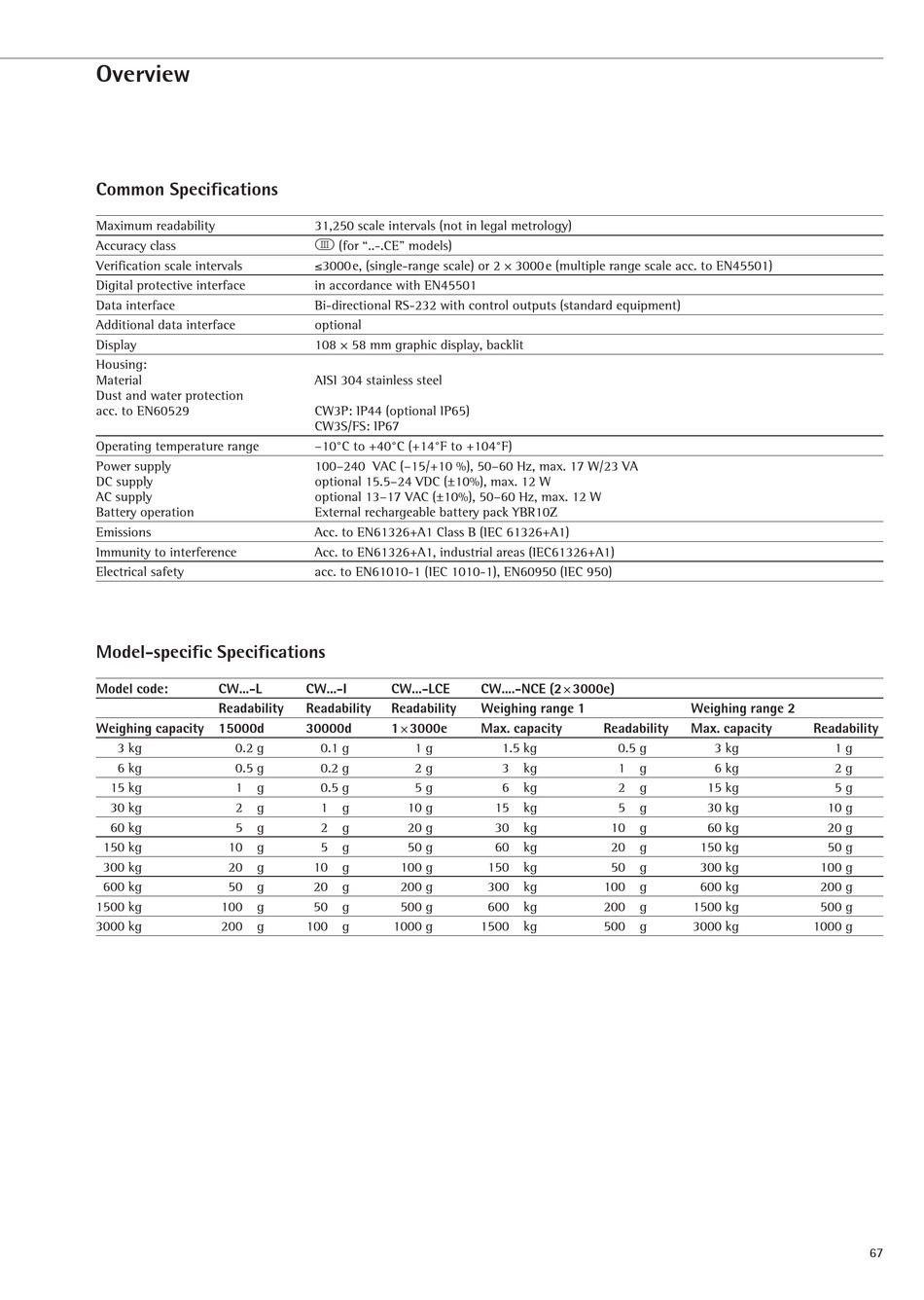

Overview
Common Specifications
Maximum readability
Accuracy class
Verification scale intervals
Digital protective interface
Data interface
Additional data interface
Display
Housing:
Material
Dust and water protection
acc. to EN60529
Operating temperature range
Power supply
DC supply
AC supply
Battery operation
Emissions
Immunity to interference
Electrical safety
Model-specific Specifications
Model code: CW...-L
Readability
Weighing capacity 15000d
3 kg 0.2 g
6 kg 0.5 g
15 kg 1 g
30 kg 2 g
60 kg 5 g
150 kg 10 g
300 kg 20 g
600 kg 50 g
1500 kg 100 g
3000 kg 200 g
31,250 scale intervals (not in legal metrology)
l (for "..-.CE" models)
<3000e, (single-range scale) or 2 + 3000e (multiple range scale acc. to EN45501)
in accordance with EN45501
Bi-directional RS-232 with control outputs (standard equipment)
optional
108 + 58 mm graphic display, backlit
AISI 304 stainless steel
CW3P: IP44 (optional IP65)
CW3S/FS: IP67
–10°C to +40°C (+14°F to +104°F)
100–240 VAC (–15/+10 %), 50–60 Hz, max. 17 W/23 VA
optional 15.5–24 VDC (±10%), max. 12 W
optional 13–17 VAC (±10%), 50–60 Hz, max. 12 W
External rechargeable battery pack YBR10Z
Acc. to EN61326+A1 Class B (IEC 61326+A1)
Acc. to EN61326+A1, industrial areas (IEC61326+A1)
acc. to EN61010-1 (IEC 1010-1), EN60950 (IEC 950)
CW...-I CW...-LCE
Readability Readability
30000d 1+ 3000e
0.1 g 1 g
0.2 g 2 g
0.5 g 5 g
1 g 10 g
2 g 20 g
5 g 50 g
10 g 100 g
20 g 200 g
50 g 500 g
100 g 1000 g
CW....-NCE (2 +3000e)
Weighing range 1
Max. capacity Readability
1.5 kg 0.5 g
3 kg 1 g
6 kg 2 g
15 kg 5 g
30 kg 10 g
60 kg 20 g
150 kg 50 g
300 kg 100 g
600 kg 200 g
1500 kg 500 g
Weighing range 2
Max. capacity Readability
3 kg 1 g
6 kg 2 g
15 kg 5 g
30 kg 10 g
60 kg 20 g
150 kg 50 g
300 kg 100 g
600 kg 200 g
1500 kg 500 g
3000 kg 1000 g
67
