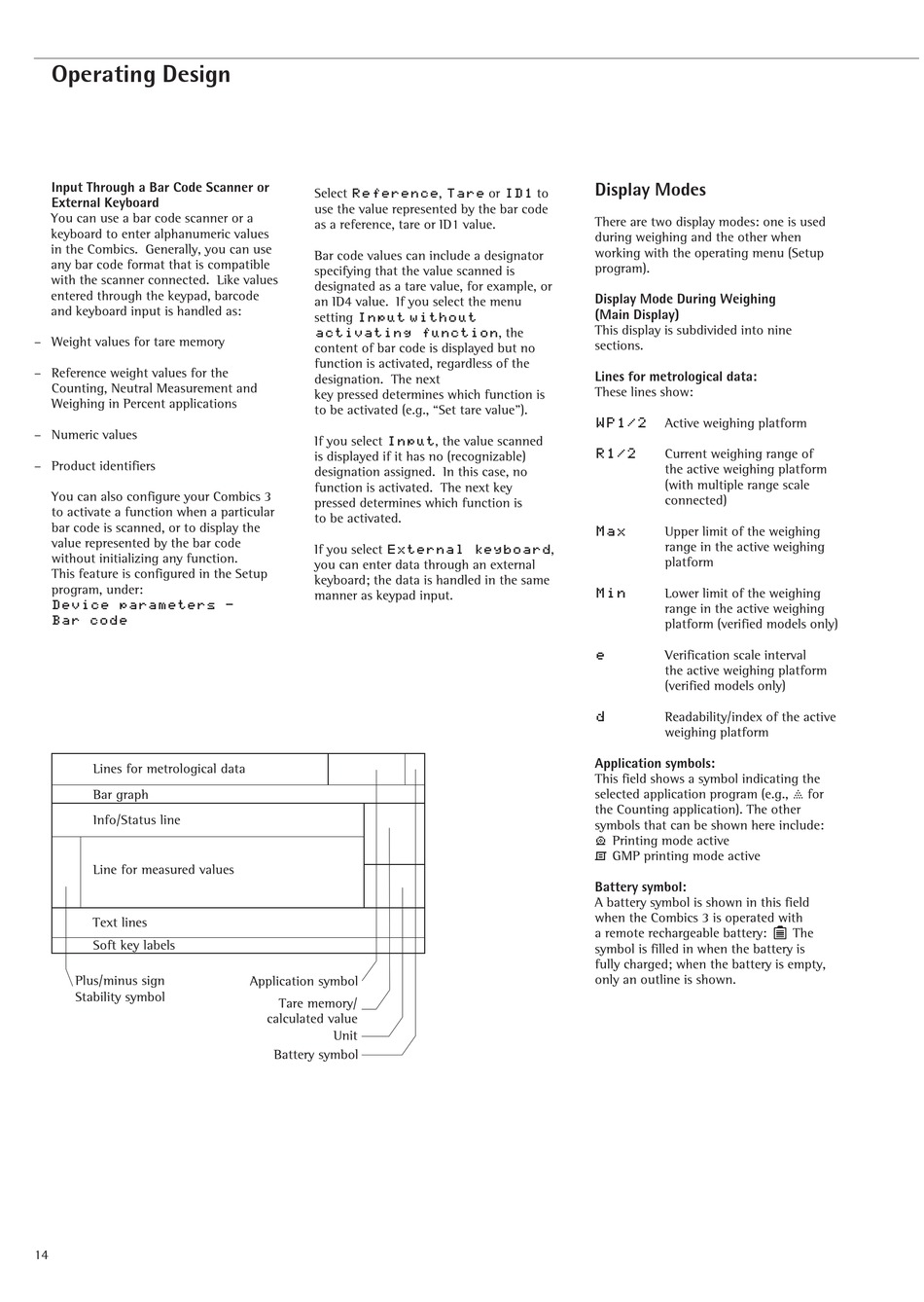

Sartorius CW3P Operating Instructions Manual page 14

Operating Design
Input Through a Bar Code Scanner or
External Keyboard
You can use a bar code scanner or a
keyboard to enter alphanumeric values
in the Combics. Generally, you can use
any bar code format that is compatible
with the scanner connected. Like values
entered through the keypad, barcode
and keyboard input is handled as:
– Weight values for tare memory
– Reference weight values for the
Counting, Neutral Measurement and
Weighing in Percent applications
– Numeric values
– Product identifiers
You can also configure your Combics 3
to activate a function when a particular
bar code is scanned, or to display the
value represented by the bar code
without initializing any function.
This feature is configured in the Setup
program, under:
Device parameters -
Bar code
Lines for metrological data
Bar graph
Info/Status line
Line for measured values
Text lines
Soft key labels
Plus/minus sign
Stability symbol
14
Reference
Select
use the value represented by the bar code
as a reference, tare or ID1 value.
Bar code values can include a designator
specifying that the value scanned is
designated as a tare value, for example, or
an ID4 value. If you select the menu
Input without
setting
activating function
content of bar code is displayed but no
function is activated, regardless of the
designation. The next
key pressed determines which function is
to be activated (e.g., "Set tare value").
Input
If you select
is displayed if it has no (recognizable)
designation assigned. In this case, no
function is activated. The next key
pressed determines which function is
to be activated.
External keyboard
If you select
you can enter data through an external
keyboard; the data is handled in the same
manner as keypad input.
Application symbol
Tare memory/
calculated value
Unit
Battery symbol
Display Modes
Tare ID1
, or to
There are two display modes: one is used
during weighing and the other when
working with the operating menu (Setup
program).
Display Mode During Weighing
(Main Display)
This display is subdivided into nine
, the
sections.
Lines for metrological data:
These lines show:
WP1/2
, the value scanned
R1/2
Max
,
Min
e
d
Application symbols:
This field shows a symbol indicating the
selected application program (e.g.,
the Counting application). The other
symbols that can be shown here include:
S
T
Battery symbol:
A battery symbol is shown in this field
when the Combics 3 is operated with
a remote rechargeable battery:
symbol is filled in when the battery is
fully charged; when the battery is empty,
only an outline is shown.
Active weighing platform
Current weighing range of
the active weighing platform
(with multiple range scale
connected)
Upper limit of the weighing
range in the active weighing
platform
Lower limit of the weighing
range in the active weighing
platform (verified models only)
Verification scale interval
the active weighing platform
(verified models only)
Readability/index of the active
weighing platform
Printing mode active
GMP printing mode active
for
A
