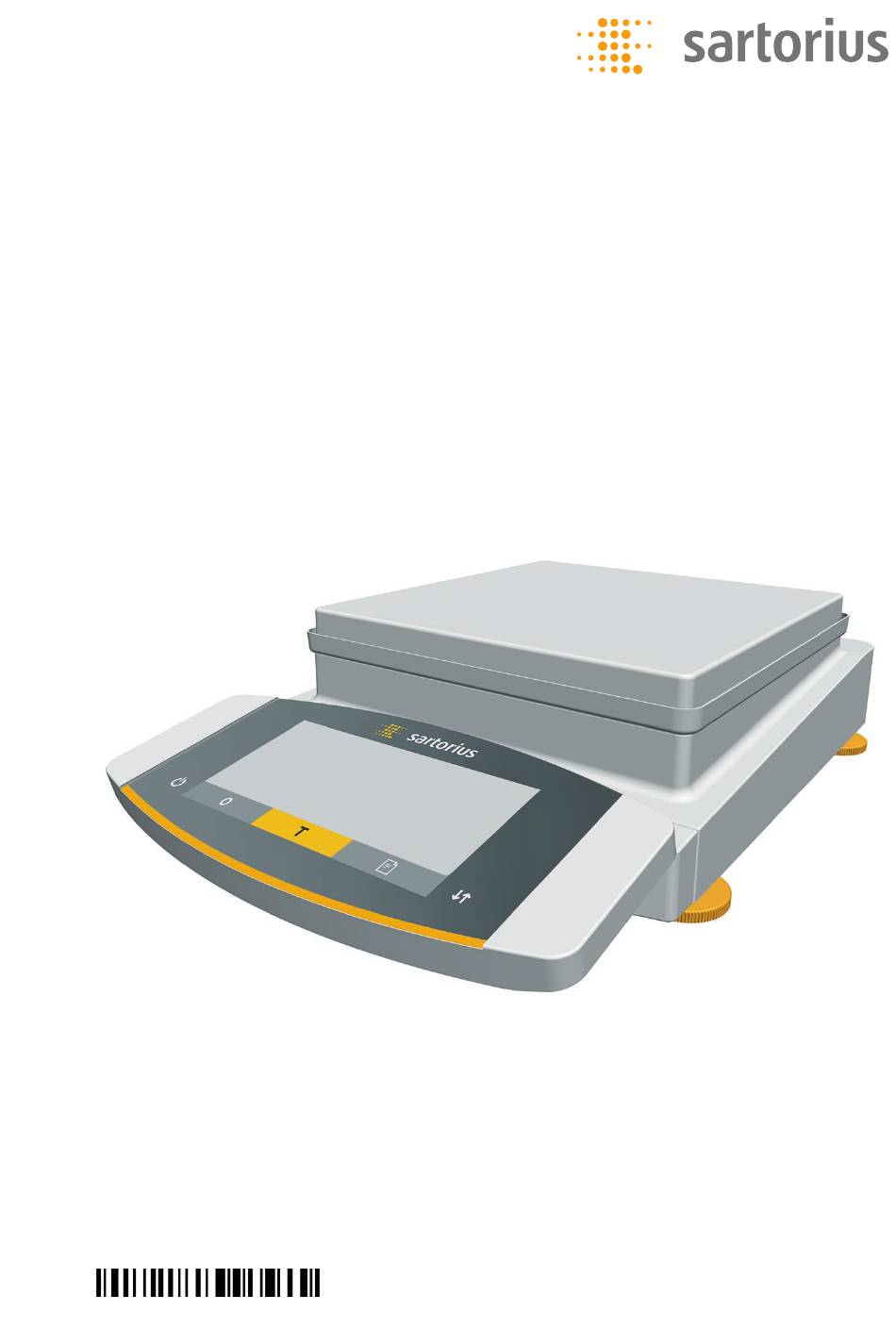

Operating Instructions
Original Operating Instructions
Cubis
®
MCE Models
Precision Balances
1000047954

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cubis MCE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sartorius Cubis MCE Series

  • Page 1 Operating Instructions Original Operating Instructions Cubis ® MCE Models Precision Balances 1000047954...
  • Page 3: Table Of Contents

    Contents Contents 7 System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 1 About these Instructions .
  • Page 4 17 Sartorius Service . . . . . . . . . . . . . . . . . . .
  • Page 5: About These Instructions

    About these Instructions About these Instructions Scope These instructions are part of the device . These instructions apply to the device in the following versions: Device Model Cubis precision balance MCE10202S- . . . | MCE1202S- . . . | ®...
  • Page 6: Target Groups

    About these Instructions Target Groups These instructions are addressed to the following target groups . The target groups must possess the specified knowledge . Target group Knowledge and responsibilities User The user is familiar with the operation of the device and the associated work processes .
  • Page 7: Safety Instructions

    The actions described are addressed to the “User” target group . If individual actions must be carried out by other target groups or by Sartorius Service personnel: The qualification required will be indicated in the description of the action .
  • Page 8: Proper Working Order Of The Device

    Working on the Device’s Electrical Equipment Only Sartorius Service personnel may work on or modify the electrical equipment of the device . The device may only be opened by Sartorius Service personnel . 2.6.3 AC Adapter and Power Supply Cable Serious injury can result, e .g .
  • Page 9: Accessories, Consumables, And Spare Parts

    − Malfunction of the device − Device failure Only use approved accessories, consumables, and spare parts supplied by Sartorius . Information on operational quality is available upon request from Sartorius . Only use accessories, consumables, and spare parts that are in proper working order .
  • Page 10: Device Description

    Device Description Device Description Device Overview Fig . 1: Precision balance (example) Pos. Designation Description Manufacturer’s ID label Not depicted Depending on the model: Not adjustable, is screwed Leveling foot in for leveling . Weighing module Leveling foot Motorically or manually adjustable Control unit Operating display Touchscreen...
  • Page 11: Weighing Pan And Associated Components

    9-pin, for connection to a PC or PLC Access switch Protects the device from changes to the device settings . Is sealed for conformity-assessed devices . Peripheral connection For connecting Sartorius accessories Power supply For connection to the power supply Slot For attaching a “Kensington” anti-theft device Cubis ®...
  • Page 12: Connections On The Control Unit

    Pos. Designation Description USB connection Concealed, no function, for Sartorius Service only Conformity-assessed Devices Some settings of conformity-assessed models are protected against user changes, e .g . external calibration for devices in accuracy class II . This measure is intended to ensure the suitability of the devices for use in legal metrology .
  • Page 13: Operating Concept

    Operating Concept Operating Concept Operating Display in Weighing Mode Fig . 1: Operating display in weighing mode (example) Pos. Designation Description Symbols for the selected application Weight value display In the selected basic unit . Metrological data Weight units Shows the selected basic unit, e .g . grams, [g] . Visual touch-feedback Visual note on an active button or key .
  • Page 14: Operating Display In The Menu

    Operating Concept Operating Display in the Menu Fig . 2: Operating display in the menu (example) Pos. Designation Description Position in the 1st menu level Shows the position of the displayed menu or configuration value in up to 4 menu levels .
  • Page 15: Displays In The Operating Display

    Operating Concept Pos. Symbol Designation Description [Toggle between weight If the “Toggle between weight units” function is active: units] button − If the button is held down: Accesses the “Toggle between weight units” function menu . − When the button is pressed: Switches between the basic unit display and up to 4 other units .
  • Page 16 Operating Concept Pos. Symbol Designation Description [Weighing in percent] Indicates that the “Weighing in percent” application is selected . display [Calculation] display Indicates that the “Calculation” application is selected . [Animal weighing] Indicates that the “Animal weighing” application is selected . display [Net-total] display Indicates that the “Net-total”...
  • Page 17: Menu Structure

    Operating Concept Menu Structure 4.5.1 Overview of the Device Settings Menu Navigating in Menus (see Chapter 4 .6, page 21) . Level 1 Level 2 Level 3 Description SETUP BALANCE AMBIENT Enter the ambient conditions at the device’s installation “Ambient conditions” site .
  • Page 18 Operating Concept Level 1 Level 2 Level 3 Description DEVICE RS-232 DAT .REC . Set the communication protocol for the connected device . “COM-RS232, 9-pin” BAUD Set the baud rate for the connected device . PARITY Set the parity for the connected device . STOPBIT Set the number of stop bits .
  • Page 19 Operating Concept Level 1 Level 2 Level 3 Description PRNT .PARA . ACTIVATE Define whether a printout is triggered via a software “Printout settings” “Triggers” command or using the [Print] key . FORMAT Define the format for the printout (characters per line) . PRT .INIT .
  • Page 20 Operating Concept Level 1 Level 2 Level 3 Description INPUT ID NO . Save the entered ID number for the device . LOT ID Activates / deactivates the printout of a line for the LOT ID in the GLP printout . The LOT ID can be entered in the line manually .
  • Page 21: Navigating The Menus

    Operating Concept Overview of the “Toggle between weight units” Function Navigating in Menus (see Chapter 4.6, page 21). Level 1 Description Unit 1 Define the displayed weight unit and the resolution for the 1st convertible unit. Unit 2 Define the displayed weight unit and the resolution for the 2nd convertible unit. Unit 3 Define the displayed weight unit and the resolution for the 3rd convertible unit.
  • Page 22 Operating Concept If an integer reference value needs to be selected in the reference value display (1) of a selected application, e .g . “Weighing in percent” or “Animal weighing” applications: Press the [Up] or [Down] button . This increases or decreases the reference value by 1 .
  • Page 23: Installation

    Installation Installation Scope of Delivery Item Quantity Device Weighing pan Shield plate Pan support Power supply unit Country-specific power supply cable with test seal USB connection cable In-use dust cover for control unit In-use dust cover for the weighing module Selecting an Installation Site Procedure Ensure that the following conditions are met at the installation site:...
  • Page 24: Unpacking The Device

    Installation Unpacking the Device Procedure Unpack the device at the intended installation location . Lift the device in the Styrofoam padding out of the packaging . Place the device in the Styrofoam padding on its side . Lift the Styrofoam padding off the device . Place the device on its base .
  • Page 25: Preparing Below-Cell Weighing

    Installation Carefully pull the connection cable between the control unit and the weighing module (1) out of the control unit’s retainer and unroll it . Turn the device over again and place it on an even surface . Preparing Below-cell Weighing Samples that cannot be placed on the weighing pan can be mounted to the device base and weighed using the below-cell weighing equipment .
  • Page 26: Positioning The Weighing Pan And Associated

    Installation Pull the cover of the below-balance weighing equipment out . NOTICE Damage to the device from cross-threading! Ensure that the hook for below-balance weighing is inserted straight into the thread opening (1) . Install a draft protection shield . Suspend the sample on the hook for below-balance weighing, e .g .
  • Page 27: Getting Started

    WARNING Severe injuries caused by using a defective power supply cable! Check the power supply cable for damage, e .g ., cracks in the insulation . If required: Contact Sartorius Service . Check whether the country-specific power plug matches the power connections at the installation site .
  • Page 28: System Settings

    System Settings System Settings Performing System Settings Default settings can be adjusted for the device and the applications in order to align with the ambient conditions and individual operating requirements . The following settings are necessary to operate the device together with connected components: −...
  • Page 29: Parameter List

    System Settings Parameter List 7.3.1 Parameters in the “Setup” Main Menu Parameters in the “Balance” Submenu Parameters Setting values Explanation AMBIENT V .STABLE Sets the ambient conditions to “very stable”: Activates a fast change in the weight values in the event of a load change with a high output rate . Recommended for the following work environment: −...
  • Page 30 System Settings Parameters Setting values Explanation ST .DEL . NONE Sets the stability delay to “none”: The stability symbol is displayed after the stability criterion is reached . SHORT* Sets the stability delay to “short”: The stability symbol only appears after a short delay in order to provide a reliable result despite fluctuations .
  • Page 31: Parameters In The "Device" Main Menu

    System Settings Parameters Setting values Explanation CAL ./ADJ . EXT .CAL . The [Adjust] button starts an external calibration with the preset calibration weight . E .CAL .USR . The [Adjust] button starts an external calibration with the user-defined calibration weight value .
  • Page 32 System Settings Parameters in the “Leveling” Submenu Parameters Setting values Explanation LEVEL The device does not display messages on the status of the level . NOTE* The [LEVELING] display flashes if the device needs to be leveled . ERR .MSG . The [LEVEL .ERR .] message appears in the operating display if the device has not been leveled .
  • Page 33 System Settings Parameters Setting values Explanations BAUD Sets the baud rate to 600 baud . 1200 Sets the baud rate to 1200 baud . 2400 Sets the baud rate to 2400 baud . 4800 Sets the baud rate to 4800 baud . 9600* Sets the baud rate to 9600 baud .
  • Page 34: Parameters In The "Data Output

    System Settings Parameters Setting values Explanations STOPBIT 1 BIT* Sets the number of stop bits to 1 . 2 BITS Sets the number of stop bits to 2 . HANDSHK . SOFTWARE Sets the handshake protocol to software handshake . HARDWARE Sets the handshake protocol to hardware handshake .
  • Page 35: Parameters In The "Applications

    System Settings Parameters in the “Settings for Printouts” Submenu Parameters Setting values Explanation ACTIVATE MAN . NO Manual without stability: Print process can be started manually at any time . MAN .AFTER* Manual after stability: After pressing the [Print] key, the print command is only executed once stability is achieved .
  • Page 36 System Settings Parameters in the “Counting” Submenu Parameters Setting values Explanation RESOLUT . DISP .ACC .* Sets the resolution to “display resolution” . The “Counting” application is started with the displayed value . 10-FOLD Sets the resolution to 10-times more accurate than “display resolution” . 100-FOLD Sets the resolution to 100-times more accurate than “display resolution”...
  • Page 37 System Settings Parameters in the “Animal Weighing” Submenu Parameters Setting values Explanation ACTIVITY CALM Sets the intensity of the “Animal activity” to “calm” . Recommended for minor movements of the sample, e .g . caused by placement on the weighing pan . MEDIUM* Sets the intensity of the “Animal activity”...
  • Page 38: Parameters In The "Input" Main Menu

    System Settings 7.3.5 Parameters in the “Input” Main Menu Parameters Setting values Explanation ID NO . Maximum of Saves the entered ID number for the device . 8 characters 09-0, A-Z, - , space LOT ID OFF* Deactivates the prompt of lot ID number during data output . Activates the prompt of the lot ID number during data output .
  • Page 39: Operation

    Operation Operation Switching the Device On and Off The device only delivers accurate values if it has reached the necessary operating temperature . The warm-up time after switching the device on must therefore be complied with . Procedure Connect the device to the power supply . If the device does not switch on automatically after it is connected to the power supply: Press the on key on the weighing module .
  • Page 40: Leveling A Device With Manual Feet With

    Operation 8.2.2 Leveling a Device with Manual Feet with Inclination Sensor The inclination sensor detects inclines in the alignment of the device . If leveling is necessary: The “Leveling” display flashes . Procedure Press the “Leveling” button . The leveling process starts . The “RETRACT”...
  • Page 41: Weighing

    Operation Weighing Procedure Zero the device . If necessary, place a container for the sample on the device . To compensate the weight of the container: Tare the device . To do so, press the [Tare] key . If a container is used for the sample: Place the sample in the container . If no container is used for the sample: Place the sample on the weighing pan .
  • Page 42: Internally Calibrating And Adjusting The Device

    Operation Possible conditions are: − The ambient temperature has changed since the last adjustment / calibration . − The interval time was exceeded (interval time, see Chapter “15 .8 Recommended Calibration Weight”, page 62) . − The device has been leveled . −...
  • Page 43: Externally Calibrating And Adjusting The Device

    Operation Manually Starting Adjustment after Calibration Requirements − The weighing pan is unloaded . − The operating display shows a stable weight value . Procedure To set the internal adjustment in the menu: In the “SETUP” / “BALANCE” menu, for the “CAL ./ADJ .” parameter, select the “INT .CAL .” configuration value . To set the sequence of the adjustment function to calibration without subsequent automatic adjustment: In the “SETUP”...
  • Page 44 Operation Calibration and Subsequent Adjustment Requirements − The weighing pan is unloaded . − The operating display shows a stable weight value . − The device is not locked against external calibration . − Keep calibration weight ready for use . Procedure To set the external calibration in the menu: In the “SETUP”...
  • Page 45: Printing Results

    The GLP header is printed with the ID marking set in the menu and the current ---------------------- weight value . The [GLP] button appears in the operating display . 23-Apr-2018 13:06 To exit the GLP printout: Press the [GLP] button . Sartorius The GLP footer is printed . Mod. MCE6202S Ser. no. 12345678 Ver.
  • Page 46: Running Applications (Examples)

    Operation 8.11 Running Applications (Examples) 8.11.1 Executing the “Toggle Between Weight Units” Function The “Toggle between weight units” function enables a switch between the basic unit display and up to 4 other units . The units can be set during the weighing process and the decimal places can be adjusted .
  • Page 47 Operation Procedure Select the Statistics application in the “APPLIC .” menu . Exit the settings menu . Place a sample on the weighing pan . Change the displayed weight unit if necessary . To start the recording of the statistics: Press the [Confirm] button on the keypad .
  • Page 48: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Preparing the Device Procedure Turn the device off . Disconnect the device from the power supply . Remove the weighing pan and all associated components from the weighing module, e .g . shield plate, pan support . Cleaning the Device NOTICE Corrosion or damage to the device due to unsuitable cleaning agents!
  • Page 49: Assembling And Connecting The Device

    − The software update is saved on a USB mass storage device . Procedure Download the software update from the Sartorius website onto the USB mass storage device . If this relates to a zip file: Unzip the software update on a USB stick .
  • Page 50: Malfunctions

    USB mass storage device . update is connected: The USB mass storage device . Procure the software update device cannot find a valid files from Sartorius Service . update . 10.2 Warning Messages Warning Fault Cause...
  • Page 51 Perform a software update . 9 .5, 49 medium is faulty . firmware . If the problem occurs again: Contact Sartorius Service . The device is not No communication exists COMM .ERR . Wait until the control unit receiving any weight...
  • Page 52: Troubleshooting

    Malfunctions 10.3 Troubleshooting Fault Cause Remedy Chapter, page The operating display The device is disconnected . Check the connection to the power 6 .3, 27 is blank . supply . The AC adapter is not connected . Connect the power supply cable to 6 .3, 27 the power supply .
  • Page 53: Decommissioning

    Decommissioning 11 Decommissioning 11.1 Decommissioning the Device Procedure Turn the device off . Disconnect the device from the power supply . Disconnect the device from all connected devices and all accessories, e .g . printeror electronics module . Clean the device (see Chapter “9 .2 Cleaning the Device”, page 48) . Re-insert all components into the device (see Chapter “9 .1 Preparing the Device”, page 48, Chapter “9 .3 Assembling and Connecting the Device”, page 49) .
  • Page 54: Storage And Shipping

    .g . in the original packaging . Transport damage as well as measures for subsequent cleaning and disinfection of the device or device components by Sartorius shall be charged to the sender . WARNING Risk of injury due to contaminated devices! Devices contaminated with hazardous materials (nuclear, biological, or chemical –...
  • Page 55: Disposal

    WARNING Risk of injury due to contaminated devices! Devices contaminated with hazardous materials (NBC contamination) will not be accepted by Sartorius for repair or disposal . 14.2 Dispose of Device and Parts 14.2.1 Information on Disposal The device and the device accessories must be disposed of properly by disposal facilities .
  • Page 56: Technical Data

    425 x 240 x 95 Weighing pan size 206 x 206 Weight, approx . 5 .4 15.2 Power Supply 15.2.1 Device Only by Sartorius AC adapter YEPS03-15V0 15.2.2 Power Supply Unit Unit Value Item No . YEPS03-15V0 Primary AC voltage 100 –...
  • Page 57: Safety Of Electrical Equipment

    Technical Data 15.2.3 Safety of Electrical Equipment According to EN 61010-1 / IEC 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General Requirements 15.2.4 Electromagnetic Compatibility Interference resistance Suitable for use in industrial areas Transient emissions Class B Suitable for use in residential areas and areas that are...
  • Page 58: Ambient Conditions

    Technical Data 15.6 Ambient Conditions 15.6.1 Installation Site Unit Value Installation site Standard laboratory rooms Installation site according to IEC 60259-1, 3000 maximum altitude above sea level For indoor use only Temperature In operation °C +5 – +40 In operation for conformity-assessed devices: See information on the device’s ID plate During storage and transport °C...
  • Page 59: Protection Class

    Technical Data 15.6.3 Protection Class Value IP protection according to IEC 60529-1 IP 54 15.7 Metrological Data 15.7.1 Models MCE14202S | MCE14202P | MCE10202S | MCE8202S MCE14202S MCE14202P MCE10202S MCE8202S Unit Value Value Value Value Scale interval (d) 10 | 20 | 50 Maximum capacity (Max) 14200 3500 | 7000 |...
  • Page 60: Models Mce6202S | Mce6202P

    Technical Data 15.7.2 Models MCE6202S | MCE6202P | MCE4202S | MCE2202S MCE6202S MCE6202P MCE4202S MC2202S Unit Value Value Value Value Scale interval (d) 10 | 20 | 50 Maximum capacity (Max) 6200 1500 | 3000 | 4200 2200 6200 Repeatability at 5 % load Standard deviation of the load values, tolerance Standard deviation of the load values,...
  • Page 61: Models Mce1202S | Mce12201S

    Technical Data 15.7.3 Models MCE1202S | MCE12201S | MCE8201S | MCE5201S MCE1202S MCE12201S MCE8201S MC5201S Unit Value Value Value Value Scale interval (d) Maximum capacity (Max) 1200 12200 8200 5200 Repeatability at 5 % load Standard deviation of the load values, tolerance Standard deviation of the load values, typical value...
  • Page 62: Recommended Calibration Weight

    Technical Data 15.8 Recommended Calibration Weight MCE14202S MCE14202P MCE10202S MCE8202S Unit Value Value Value Value External test weight 14000 14000 10000 7000 Recommended accuracy class MCE6202S MCE6202P MCE4202S MCE2202S Unit Value Value Value Value External test weight 5000 5000 3000 1500 Recommended accuracy class MCE1201S...
  • Page 63: Interfaces

    Pin 8: Request to Send (RTS) Pin 9: Not assigned 15.10.2 Specifications for the USB-A Interface Communication: USB host (master) Connectable devices: Sartorius printers, USB sticks with software update 15.10.3 Specifications for the USB-B Interface Communication: USB device (slave) Type of interface: Virtual serial interface (virtual COM-port, VCP) and “PC direct”...
  • Page 64: Accessories

    1000 69Y03092 Display cable, 3 m, for separate installation of On request display and weighing units, installation by Sartorius Service or at the factory (order code VF4016) Installation of display cable, 3 m, for separate VF4016 installation of display and weighing units...
  • Page 65: Special Applications

    Accessories 16.1.3 Special Applications Item Quantity Order number Density determination set for solids and liquids for precision balance YDK04MS 16.1.4 Weighing Tables Item Quantity Order number Weighing table made from synthetic stone, with vibration YWT03 dampening made from wood with synthetic stone YWT09 Wall console YWT04...
  • Page 66: Sartorius Service

    Sartorius Service 17 Sartorius Service Sartorius Service is available for queries regarding the device . For information about the service addresses, services provided, or to contact a local representative, please visit the Sartorius website (www .sartorius .com) . When contacting Sartorius Service with questions about the system or in the event of malfunctions, be sure to have the device information, e .g ., serial number, hard-...
  • Page 67 Conformity & Certificates Cubis ® MCE Operating Instructions...
  • Page 68: Certificate Of Compliance

    Project: Date Issued: 70185847 2018-09-24 Issued to: Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 Goettingen, Niedersachsen 37079 GERMANY The products listed below are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and US or with adjacent indicator 'US' for US only or without either indicator for Canada only.
  • Page 69 Conformity & Certificates Certificate: 70185847 Master Contract: 167555 Project: 70185847 Date Issued: 2018-09-24 APPLICABLE REQUIREMENTS CSA Standards: CAN/CSA-C22.2 No. 61010-1-12 Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use, Part 1: General Requirements UL Standards: UL Std. No. 61010-1 (3 Edition) - Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use - Part 1: General Requirements...
  • Page 70: Fcc Supplier's Declaration Of Conformity

    Connections between the device and peripherals must be made using shielded cables in order to maintain compliance with FCC radio frequency emission limits. Any modifications made to this device that are not approved by Sartorius may void the authority granted to the user by the FCC to operate this equipment.
  • Page 71 Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 37079 Goettingen, Germany Phone: +49.551.308.0 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
