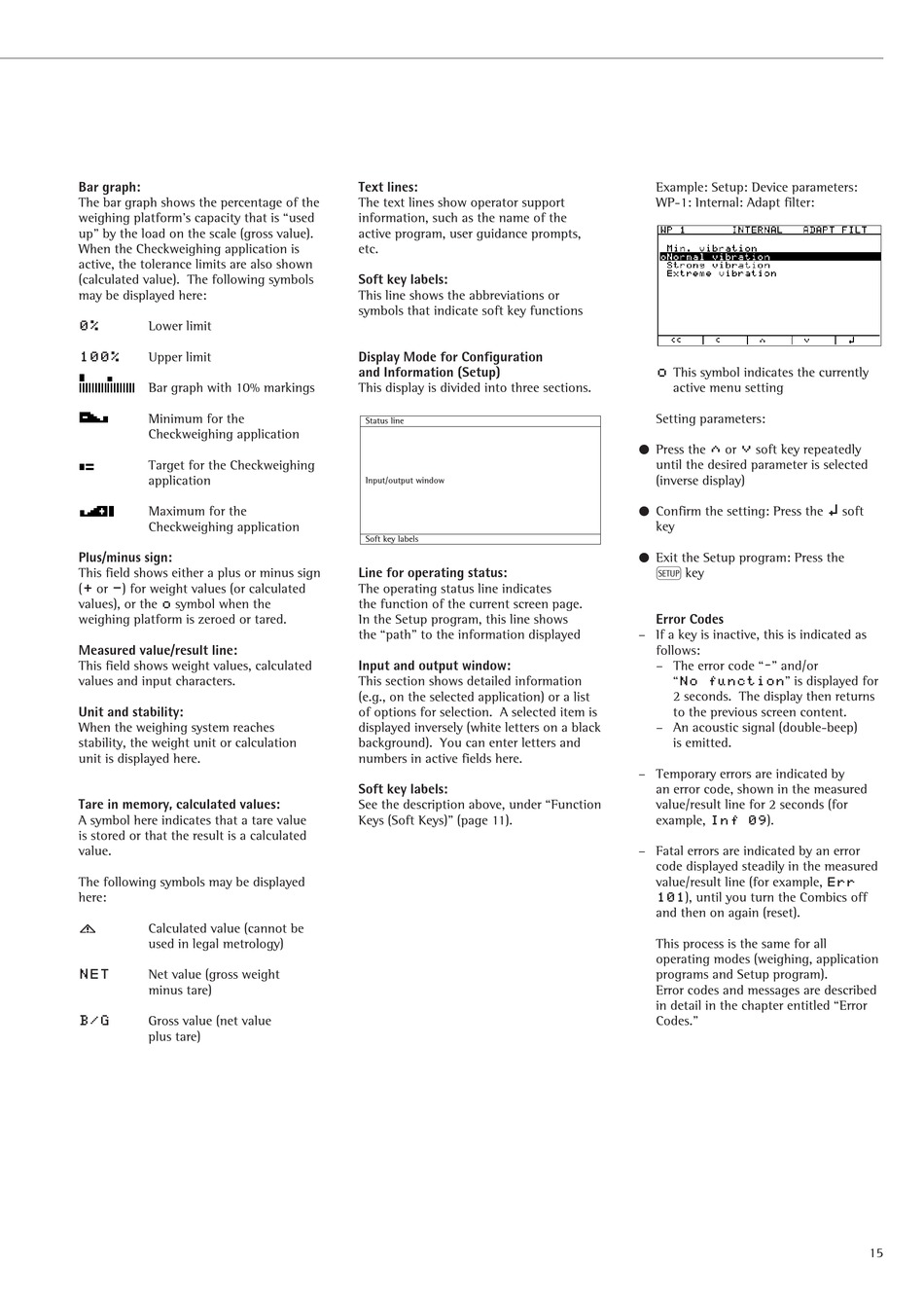

Bar graph:
The bar graph shows the percentage of the
weighing platform's capacity that is "used
up" by the load on the scale (gross value).
When the Checkweighing application is
active, the tolerance limits are also shown
(calculated value). The following symbols
may be displayed here:
0%
Lower limit
100%
Upper limit
Bar graph with 10% markings
Minimum for the
Checkweighing application
Target for the Checkweighing
application
Maximum for the
Checkweighing application
Plus/minus sign:
This field shows either a plus or minus sign
+ -
( or ) for weight values (or calculated
o
values), or the symbol when the
weighing platform is zeroed or tared.
Measured value/result line:
This field shows weight values, calculated
values and input characters.
Unit and stability:
When the weighing system reaches
stability, the weight unit or calculation
unit is displayed here.
Tare in memory, calculated values:
A symbol here indicates that a tare value
is stored or that the result is a calculated
value.
The following symbols may be displayed
here:
Calculated value (cannot be
a
used in legal metrology)
NET
Net value (gross weight
minus tare)
B/G
Gross value (net value
plus tare)
Text lines:
The text lines show operator support
information, such as the name of the
active program, user guidance prompts,
etc.
Soft key labels:
This line shows the abbreviations or
symbols that indicate soft key functions
Display Mode for Configuration
and Information (Setup)
This display is divided into three sections.
Status line
Input/output window
Soft key labels
Line for operating status:
The operating status line indicates
the function of the current screen page.
In the Setup program, this line shows
the "path" to the information displayed
Input and output window:
This section shows detailed information
(e.g., on the selected application) or a list
of options for selection. A selected item is
displayed inversely (white letters on a black
background). You can enter letters and
numbers in active fields here.
Soft key labels:
See the description above, under "Function
Keys (Soft Keys)" (page 11).
Example: Setup: Device parameters:
WP-1: Internal: Adapt filter:
o This symbol indicates the currently
active menu setting
Setting parameters:
§ Press the Q or q soft key repeatedly
until the desired parameter is selected
(inverse display)
§ Confirm the setting: Press the l soft
key
§ Exit the Setup program: Press the
M key
Error Codes
– If a key is inactive, this is indicated as
follows:
– The error code "-" and/or
No function
" " is displayed for
2 seconds. The display then returns
to the previous screen content.
– An acoustic signal (double-beep)
is emitted.
– Temporary errors are indicated by
an error code, shown in the measured
value/result line for 2 seconds (for
Inf 09
example, ).
– Fatal errors are indicated by an error
code displayed steadily in the measured
value/result line (for example,
101
), until you turn the Combics off
and then on again (reset).
This process is the same for all
operating modes (weighing, application
programs and Setup program).
Error codes and messages are described
in detail in the chapter entitled "Error
Codes."
Err
15
