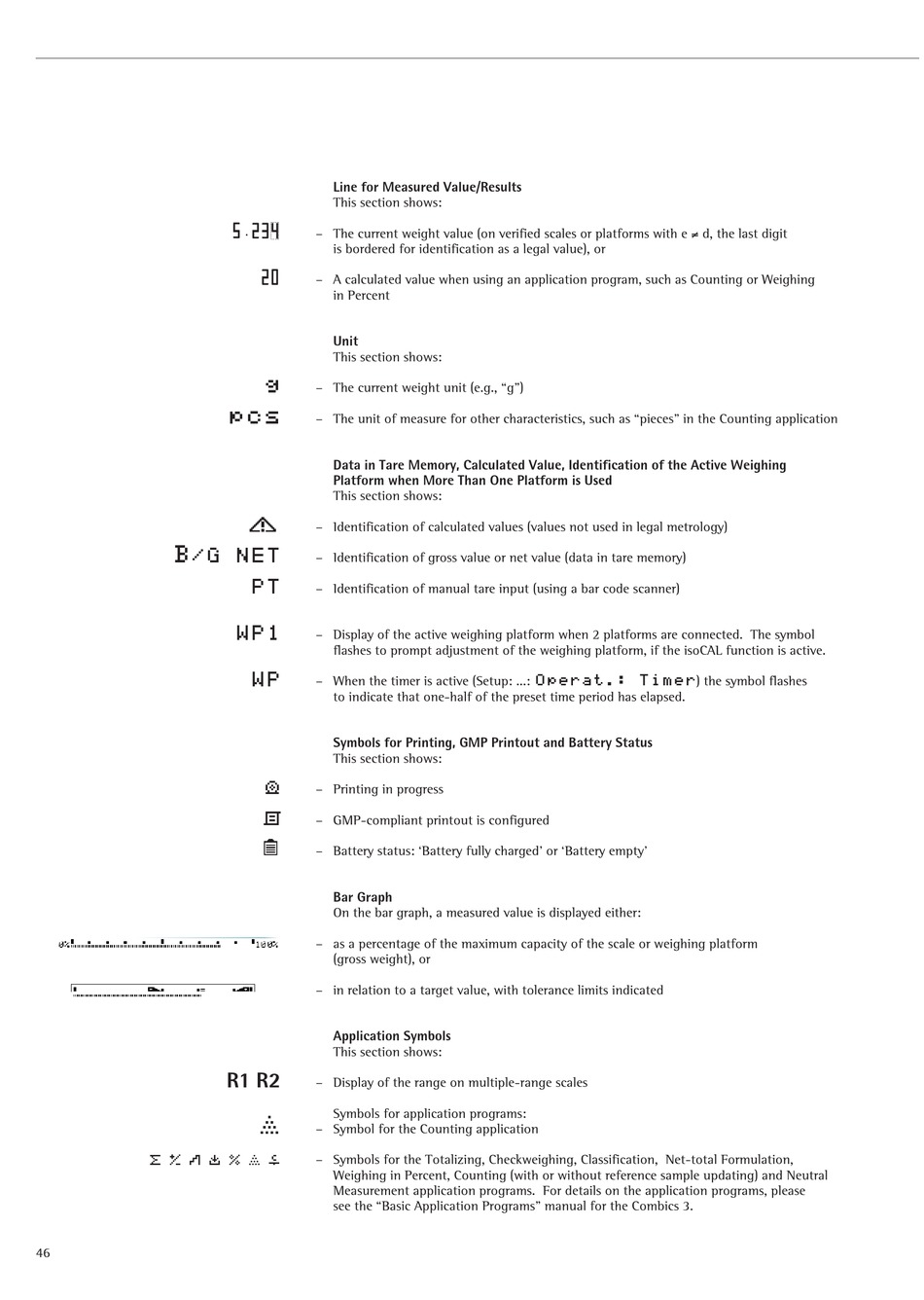

Line for Measured Value/Results
This section shows:
5.23r
– The current weight value (on verified scales or platforms with e = d, the last digit
is bordered for identification as a legal value), or
20
– A calculated value when using an application program, such as Counting or Weighing
in Percent
Unit
This section shows:
g
– The current weight unit (e.g., "g")
pcs
– The unit of measure for other characteristics, such as "pieces" in the Counting application
Data in Tare Memory, Calculated Value, Identification of the Active Weighing
Platform when More Than One Platform is Used
This section shows:
a
– Identification of calculated values (values not used in legal metrology)
– Identification of gross value or net value (data in tare memory)
PT
– Identification of manual tare input (using a bar code scanner)
WP1
– Display of the active weighing platform when 2 platforms are connected. The symbol
flashes to prompt adjustment of the weighing platform, if the isoCAL function is active.
WP
– When the timer is active (Setup: ...: Operat.: Timer) the symbol flashes
to indicate that one-half of the preset time period has elapsed.
Symbols for Printing, GMP Printout and Battery Status
This section shows:
– Printing in progress
S
T – GMP-compliant printout is configured
– Battery status: 'Battery fully charged' or 'Battery empty'
Bar Graph
On the bar graph, a measured value is displayed either:
– as a percentage of the maximum capacity of the scale or weighing platform
(gross weight), or
– in relation to a target value, with tolerance limits indicated
Application Symbols
This section shows:
R1 R2
– Display of the range on multiple-range scales
Symbols for application programs:
A
– Symbol for the Counting application
– Symbols for the Totalizing, Checkweighing, Classification, Net-total Formulation,
Weighing in Percent, Counting (with or without reference sample updating) and Neutral
Measurement application programs. For details on the application programs, please
see the "Basic Application Programs" manual for the Combics 3.
