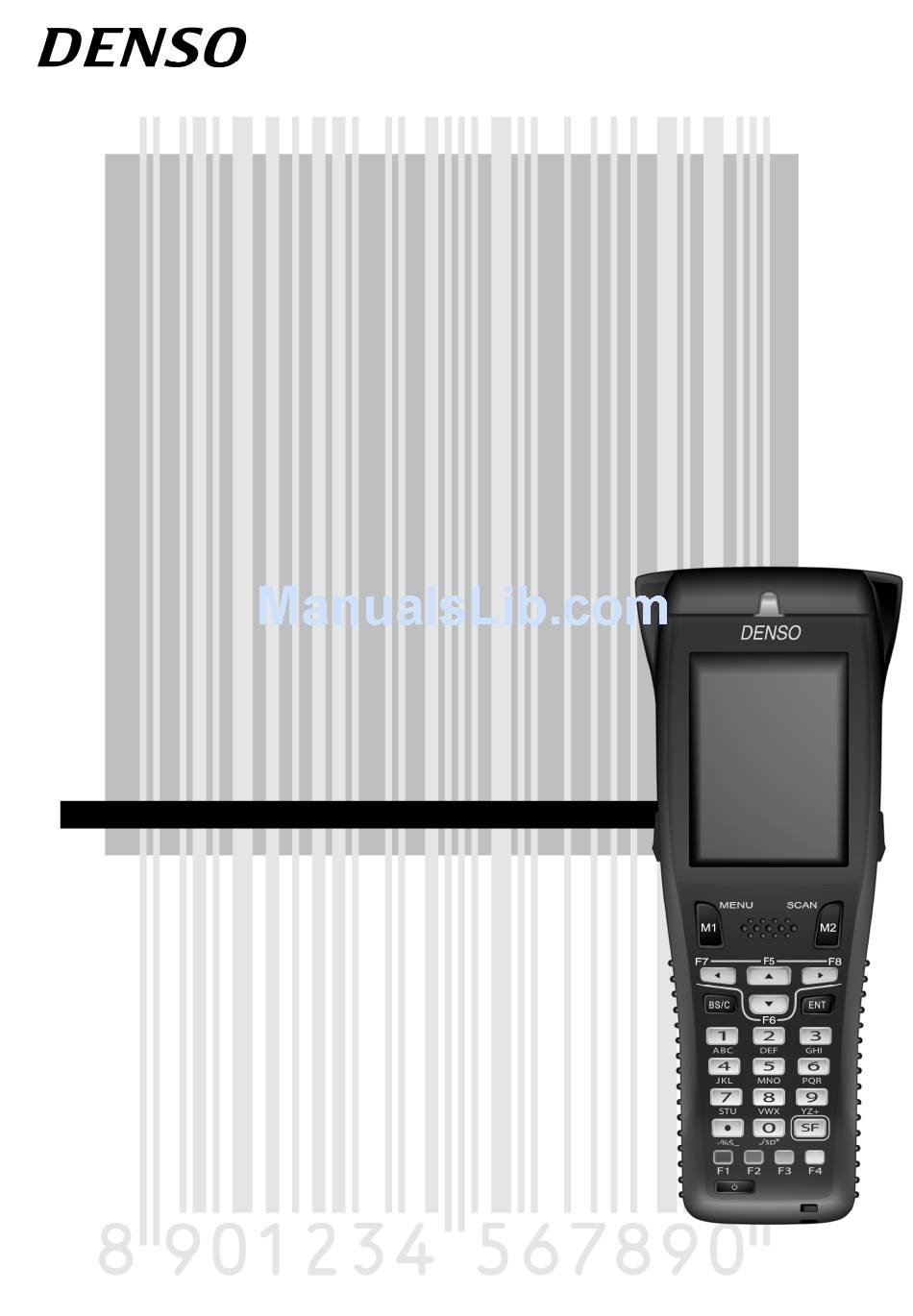

Barcode Handy Terminal
BHT-805BWB
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Denso WAVE BHT-805BWB

Summary of Contents for Denso WAVE BHT-805BWB

  • Page 1 Barcode Handy Terminal BHT-805BWB User’s Manual...
  • Page 2 3) The modification of DENSO WAVE's products by parties other than DENSO WAVE. • If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product having been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty...
  • Page 3 Barcode Handy Terminal Customer Registration and Inquiries Customer Registration To allow us to provide our customers with comprehensive service and support, we request that all customers complete a Member Registration Form. Registered members will be offered the following privileges. • The latest upgrade information •...
  • Page 4 • Every attempt has been made to ensure that the content of this manual is thorough and up to date, however, we kindly ask that any questionable content, mistakes, or omissions be reported to DENSO WAVE. • The copyright for this User’s Manual belongs to DENSO WAVE INCORPORATED.
  • Page 5 Barcode Handy Terminal Viewing this Manual − About the Bookmark The PDF Bookmark function can be used to jump to the Contents page. <Procedure> Click the “Bookmark” tab. Click to search for the desired item. Click the item to be read. Click the “Bookmarks”...
  • Page 6 BHT-805BWB − Searching by Word The PDF search function can be used to jump to the target page by entering words or characters related to the item being searched. (1) Click the Search icon. (Or select “Edit” – “Search”.) (2) Enter the word(s) or character(s) to be searched for.
  • Page 7 Barcode Handy Terminal Related Documentation • BHT-BASIC Programmer’s Manual (BHT-800 Series) This is an instruction manual used to create handy terminal programs with BHT-BASIC. • BHT-BASIC 4.0 Transfer Utility User’s Guide This is an instruction manual for software relating to data transfer between the computer and BHT-800 and comes bundled with the BHT-BASIC 4.0 Transfer Utility.

  • Page 8: Safety Precautions

    BHT-805BWB SAFETY PRECAUTIONS Be sure to observe all these safety precautions. Please READ through this manual carefully. It will enable you to use the BHT and CU correctly. Always keep this manual nearby for speedy reference. Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury and substantial property damage.
  • Page 9 Barcode Handy Terminal Handling the battery cartridge • Never disassemble or heat the battery cartridge, nor put it into fire or water; doing so could cause battery-rupture or leakage of battery fluid, resulting in a fire or bodily injury. • Do not carry or store the battery cartridge together with metallic ball-point pens, necklaces, coins, hairpins, etc.
  • Page 10 BHT-805BWB Handling the CU • If smoke, abnormal odors or noises come from the CU, immediately unplug the AC adapter from the wall socket or CU and contact your nearest dealer. Failure to do so could cause fire or electrical shock.
  • Page 11 Barcode Handy Terminal To System Designers: • When introducing BHTs in those systems that could affect human lives (e.g., medicines management system), develop applications carefully through redundancy and safety design which avoids the feasibility of affecting human lives even if a data error occurs. Handling the battery cartridge •...
  • Page 12 BHT-805BWB • If the BHT has been stored in a hot (50°C to 60°C, 122°F to 140°F) and humid place, allow it to sit at room temperature and humidity for at least one day before use. Using the BHT with its inside being hot...
  • Page 13 Barcode Handy Terminal Handling the CU • Never disassemble or modify the CU; doing so could result in an accident such as fire or malfunction. • Never put the CU in places where there are excessively high temperatures, such as inside closed-up automobiles, or in places exposed to direct sunlight.

  • Page 14: Declaration Of Conformity

    1999/5/EG. Malti: Hawn hekk, DENSO WAVE INCORPORATED tiddikjara li dan il- BHT-805BWB fih Wireless LAN Module (tip: DWWL001) u Bluetooth® Board (tip: DWBT011), li huma konformi mar-rekwiżiti essenzjali u ma’ dispożizzjonijiet relevanti oħrajn tad-Direttiva 1999/5/KE.
  • Page 15 LAN (typu: DWWL001) oraz moduł Bluetooth® (typu: DWBT011), które są zgodne z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Português: DENSO WAVE INCORPORATED declara que este BHT-805BWB inclui um Módulo LAN sem fios (tipo: DWWL001) e uma Placa Bluetooth® (tipo: DWBT011), que estão conforme aos requisitos essenciais e a outras disposições da Directiva 1999/5/CE.
  • Page 16 BHT-805BWB...

  • Page 17: Table Of Contents

    BHT-805BWB Chapter 1 Outline This chapter describes the BHT system and provides an overall outline of the BHT. System Configuration ···················································································2 1.1.1 Hardware Configuration ···················································································2 1.1.2 Software Configuration·····················································································4 Component Names and Functions ·······························································7 1.2.1 BHT Front/Rear································································································7 1.2.2 Keypad ·············································································································8 1.2.3...

  • Page 18: System Configuration

    BHT-805BWB 1.1 System Configuration This section describes the hardware required for the barcode data collection system used by the BHT and the BHT software. 1.1.1 Hardware Configuration In addition to the BHT, the following hardware and software are required for the barcode data collection system used by the BHT.
  • Page 19 Barcode Handy Terminal Host Computer Allows you to edit, manage and download user programs and data, as well as downloading system programs. Models : PC/AT Compatible Operating Systems and Optional Application Programs Windows XP Windows Vista Windows NT Windows 2000 Operating Systems (OS) Windows 98 3.51/4.0...

  • Page 20: Software Configuration

    BHT-805BWB 1.1.2 Software Configuration This section describes the software used for BHT Series application development and application in addition to the software used at the BHT unit. Please note that the above-mentioned software can be downloaded (Certain versions may be for trial use.) from the QBdirect service discussed at “Customer Registration”...
  • Page 21 Barcode Handy Terminal Software Used at the BHT Unit The BHT unit FLASH memory has a system area and user area, with the system program stored in the system area and font files and user programs stored in the user area. The BHT unit is shipped with the system program and font files stored in their respective areas.
  • Page 22 BHT-805BWB • System Mode This program is used to operate files, make system environment settings, and perform various types of tests. Refer to “Chapter 4 System Operation” –“4.4 System Mode” for further details. Font File These files are required to display JIS 1 and 2 standard Kanji characters at the BHT unit LCD display.

  • Page 23: Component Names And Functions

    Barcode Handy Terminal 1.2 Components and Functions 1.2.1 BHT Front/Rear (10) (11) (12) Name Function and Description LCD (Liquid crystal display) Displays the characters and graphic patterns. Indicator LED Indicates the barcode read status. Illuminates in blue when the BHT has successfully read a barcode. Press when scanning a barcode.

  • Page 24: Keypad

    BHT-805BWB 1.2.2 Keypad The BHT key functions can be set at user programs. The diagram below shows an example of settings for each key function. (10) (11) Name Function and Description Used to move the cursor and select menus. Cursor keys Magic •...
  • Page 25 Barcode Handy Terminal Name Function and Description Used to enter data. Numerical keys Press to finalize entered data or execute operations. Enter key Used to select functions. *Function key functions are assigned at user programs. Refer to Function keys the “BHT-BASIC Programmer’s Manual (For BHT-800 Series)” for further details Power key Turns the BHT power ON or OFF.

  • Page 26: Bht Screen

    BHT-805BWB 1.2.3 BHT Screen If the system display is set to ON at the system settings or in the user program, icons display at the bottom of the screen (default) indicating the key shift status, alphabet entry status, and status of the link with the CU-811.
  • Page 27 BHT-805BWB Chapter 2 BHT Preparation This chapter describes inserting and charging the battery cartridge, turning the BHT power ON and OFF, and use of the hand strap. “BHT Preparation” Procedure ·····································································12 Loading and Charging the Battery Cartridge ··············································12 2.2.1 Battery Power Level Indicator ········································································18 Attaching the Hand Strap············································································19...

  • Page 28: Bht Preparation" Procedure

    High-temperatures may activate the charger’s protective device, preventing from charging, and lead to protective device damage, overheating, blowout or combustion. • Terminate charging if not completed even after the specified time has elapsed. • Do not use battery cartridges other than that specified by DENSO WAVE.
  • Page 29 Do not use battery cartridges other than − Point − that specified by DENSO WAVE. Insert the battery cartridge cover tab (1), and then close the battery cartridge cover (2) to lock the cover in position.
  • Page 30 BHT-805BWB Connect the dedicated AC adapter to the DC input connector on the charger and plug the adapter into the wall socket. The charger Power LED (green) turns ON. Power for the CU-821 can be obtained from a USB connection port (host computer or hub), −...
  • Page 31 Barcode Handy Terminal Charging with the battery charger (CH-201A and CH-704) Terminal Check the battery cartridge terminals and insert the cartridge. Connect the power cable to the CH-201A and Red LED ON connect the plug to a commercial AC power source (230 V AC).
  • Page 32 Do not use battery cartridges other than − Point − that specified by DENSO WAVE. Insert the battery cartridge cover tab (1), and then close the battery cartridge cover (2) to lock the cover in position. Press the battery cover into place until a click is heard.
  • Page 33 Barcode Handy Terminal Mishandling of the charger may result in charger overheating, smoke generation, blowout or combustion. Please read the following items prior to use. Never disassemble or modify the battery cartridge. Never connect the battery cartridge (+) and (-) terminals with a metal object such as a piece of wire.

  • Page 34: Battery Power Level Indicator

    BHT-805BWB 2.2.1 Battery Power Level Indicator Confirming at the Power Level Icon The battery power level can be confirmed at the battery icon ( ) that displays in the bottom left of the LCD display. The battery power displays in four levels.

  • Page 35: Attaching The Hand Strap

    Barcode Handy Terminal 2.3 Attaching the Hand Strap Attach the hand strap to prevent the BHT from being accidentally dropped during use. 2.3.1 Attaching the Hand Strap Attach the hand strap as shown below. 2.3.2 Holding the BHT Attach the hand strap to your wrist and hold the BHT as shown below.

  • Page 36: Initial Setup

    BHT-805BWB 2.4 Initial Setup Turn ON the power after inserting the fully charged battery cartridge into the BHT. The clock will not have been set at the time of purchase, and therefore it is necessary to set the date and time when turning ON the power for the first time.

  • Page 37: Turning Off The Power

    Barcode Handy Terminal 2.5 Turning OFF the Power Use one of the following three methods to turn OFF the BHT power. → Press the Power key ( Normal power OFF → Hold down the Power key ( Turning the power OFF after data back-up ) for at least 3 seconds.

  • Page 38: If The Bht Is Shut Down Abnormally

    BHT-805BWB 2.5.4 If the BHT Is Shut Down Abnormally If the BHT is shut down abnormally* and is left without a battery cartridge or with a discharged battery cartridge loaded, then unsaved data may be lost. (*"Normally shut down" refers to "2.5 Turning OFF the Power.") The right message will appear when you load a charged battery cartridge and turn the BHT on.
  • Page 39 Barcode Handy Terminal If Scandisk finds a broken file(s), the right screen will appear. (As long as a broken file exits, the screen displays every time the BHT System is started up.) (Refer to “About “$$BRKLST.SYS” on the following page.) Scandisk when the resume function is enabled If Scandisk runs when the resume function is enabled, the screen given right may appear.

  • Page 40: If Broken Files Are Found

    BHT-805BWB About “$$BRKLST.SYS” If Scandisk finds a broken file(s), it will automatically create the "$$BRKLST.SYS" file. To check the contents of the file, upload the file in System Mode to the host computer. (Refer to “Chapter 4 System Operation" – “4.5.3 Uploading Files (UPLOAD MENU).") Contents of the “$$BRKLST.SYS”...

  • Page 41: Data Transmission

    BHT-805BWB Chapter 3 Basic Operation This chapter describes basic operations such as barcode scanning, numerical data entry and item selection using the BHT, basic changes to settings, and BHT data transmission. Scanning Barcodes ···················································································26 Numeric Data Entry ·················································································28 Task Selection·························································································28 Changing the Default Settings·································································29...

  • Page 42: Scanning Barcodes

    BHT-805BWB 3.1 Scanning Barcodes Follow the procedure below to scan barcodes. Turn the BHT power ON. Power key Press the trigger switch. Illumination LED The BHT emits an illumination LED. The trigger switch is assigned to magic − Point −...
  • Page 43 Barcode Handy Terminal When unable to successfully read barcodes… Cause Countermeasure Change the BHT scanning angle and try again. When the illumination LED is focused on the printed surface of the barcode from Specular directly above, there are times when reflection scanning may be unsuccessful due to specular reflection.

  • Page 44: Numeric Data Entry

    BHT-805BWB 3.2 Numeric Data Entry Enter numeric data such as product volume with the numeric keys and Enter ( ) key. If numeric data is entered incorrectly, use the backspace/clear key ( ) to delete the data and then reenter with the numeric keys.

  • Page 45: Changing The Default Settings

    Barcode Handy Terminal 3.4 Changing the Default Settings The volume, vibrator, LCD display brightness and power save settings can be changed at the MENU screen. Item Details Setting Used to set the volume of the speaker that notifies the user when barcode scanning is complete.
  • Page 46 BHT-805BWB Use the [▲] and [▼] cursor keys to select the item to be changed. The selected item is highlighted. Use the [◄] and [►] cursor keys to select the setting. Press any of the following keys to exit the settings screen.

  • Page 47: Transmitting Data

    Barcode Handy Terminal 3.5 Transmitting Data Data gathered by the BHT can be transmitted to the host computer by infrared communication, wireless communication and Bluetooth® wireless communication . The data transmission method and BHT setting method will differ depending on the system used, and therefore the system administrator should be contacted for details of operation.

  • Page 48: Infrared Communication

    BHT-805BWB 3.5.1 Infrared Communication When performing data communication between BHT units Point the BHT infrared communication ports toward each other and perform communication. Requests • Ensure that the light path between the BHT and any target stations is not obstructed.

  • Page 49: Wireless Communication

    Barcode Handy Terminal 3.5.2 Wireless Communication Transmit data to host computer via the wireless LAN access point. To perform wireless communication, it is necessary to configure the wireless local area network (wireless LAN) at the BHT and access point. The BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option) software is required.
  • Page 50 BHT-805BWB...
  • Page 51 BHT-805BWB Chapter 4 System Operation This chapter describes how to initialize and update the system, start up a user program, and operate System Mode. Initializing the BHT System ·······································································36 4.1.1 Selecting the Memory Area to be Initialized···············································37 4.1.2 Selecting the Message Version (English or Japanese) ·····························38 4.1.3...

  • Page 52: Initializing The Bht System

    BHT-805BWB 4.1 Initializing the BHT System By initializing the system, program files and data files downloaded to the BHT user area are deleted, and system settings are returned to the default status when shipped from the factory. The system must be initialized when: •...

  • Page 53: Selecting The Memory Area To Be Initialized

    Barcode Handy Terminal 4.1.1 Selecting the Memory Area to be Initialized Press the Power key ( ) while holding down the SF, M1 and 0 keys together. The screen on the right displays. Select the memory area to be initialized. (1) To exempt font files from deletion: Ensure that “1:USER AREA EXCEPT FONTS”...

  • Page 54: Selecting The Message Version (English Or Japanese)

    BHT-805BWB 4.1.2 Selecting the Message Version (English or Japanese) When the screen on the right displays, select the message display language with the numerical keys. “1: Japanese” Changes the message language to Japanese. “2: English” Changes the message language to English.

  • Page 55: Performing System Initialization

    Barcode Handy Terminal 4.1.4 Performing System Initialization screen right displays during system initialization. Upon completion of system initialization, the BHT displays the screen on the right for a second and then turns OFF automatically. • Never turn OFF the BHT power during system initialization. Turning the power OFF too - Point - early will interrupt the process, requiring initialization to be performed again.

  • Page 56: Updating The System

    BHT-805BWB 4.2 Updating the System 4.2.1 Updating the BHT System The BHT system update procedure is as follows. BHT System Update File Download ↓ BHT System Update BHT System Update File Download Refer to sections “4.5.3 Downloading Files (DOWNLOAD Menu)” and ”4.5.9 Downloading/Uploading Files by FTP (FTP MENU)”, and download the BHT system update file to the BHT.

  • Page 57: System Update

    (F)” check box at the Transfer Utility Options screen and then download. The CU-811 system update file can be downloaded from the following Web site. - Note - http://www.denso-wave.com/en/ CU-811 System Update Refer to section “4.5.16 Updating the System (MODIFY MENU)” and update the CU-811 system.

  • Page 58: Executing User Programs

    BHT-805BWB 4.3 Executing User Programs User programs (application programs) can be executed using the following methods. Select the most appropriate method to meet the objective. 4.3.1 Executing from the SYSTEM MENU “EXECUTE PROGRAM” Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu.
  • Page 59 Barcode Handy Terminal Several directory management program examples are given below. The names of the files used in these examples are as follows. MAIN.PD4 Program to be executed by pressing the Power key ( ) only SUBMAIN.PD4 Program chained from MAIN.PD4 using the BHT-BASIC CHAIN statement USER.PD4 New program...

  • Page 60: Executing By Wake-Up

    BHT-805BWB (Example 3) Recommended download method After system initialization, first download the program to be executed simply by pressing the Power key ( ). In this case, this program is always registered at the beginning of the system directory management unless the program has been deleted and another file downloaded.

  • Page 61: System Mode

    Barcode Handy Terminal 4.4 System Mode By starting up the BHT in System Mode and selecting each menu, the following operations can be performed individually. • Setup initialization • Executing user programs • File download/upload • System environment setting • BHT operation test •...

  • Page 62: System Mode Basic Operation

    BHT-805BWB 4.4.2 System Mode Basic Operation Menu Selection and Display Use the following procedure to select and display each menu. Operation example Press the numerical key corresponding to the menu to be selected. [4]キー、または[ ]キーか Select [4: SET SYSTEM] with...
  • Page 63 Barcode Handy Terminal Setting Value Selection Operation example Use the following procedure to select setting values. Press the numerical key corresponding to the item to be selected. Alternatively, press the cursor keys ([▲] [▼]) to select the item. The selected item will be highlighted. Select the setting value with the cursor keys ([◄] [►]).

  • Page 64: System Menu Configuration

    BHT-805BWB 4.4.3 SYSTEM MENU Configuration Menu Configuration for Items Displayed at the SYSTEM MENU Screen Select the item with the numerical keys or cursor keys ([▲] [▼]) and press the ENT key. SYSTEM MENU Setup Menu Refer to section “4.5.1 Setup”.
  • Page 65 Barcode Handy Terminal Uploading Refer to section “4.5.4 Uploading Files”. 3 and ENT keys System Environment Setting Refer to section “4.5.6 System Environment Setting”. 4 and ENT keys BS/C Testing Refer to section “4.5.7 BHT Operation Test”. 5 and ENT keys System Information Display Refer to section “4.5.8 System Information”.
  • Page 66 BHT-805BWB DEVICE MENU Refer to section “4.5.10 Wireless Communication Settings”. BS/C 8 and ENT keys...
  • Page 67 Barcode Handy Terminal Menu Configuration for Items Not Displayed at the SYSTEM MENU Screen Press the corresponding numerical key while holding down the SF key. SYSTEM MENU Deleting Program/Data Files Refer to section “4.5.11 Deleting Program/Data Files”. 0 with SF held down BS/C Deleting Font Files...
  • Page 68 BHT-805BWB Setting Remote Wake-up Refer to section “4.5.14 Setting Remote Wake-up”. 4 with SF held down BS/C Downloading/Uploading the System Message File Refer to section “4.5.15 Downloading/Uploading System the Message File”. 6 with SF held down Updating the System Refer to section “4.5.16 Updating the System”.

  • Page 69: System Menu

    Barcode Handy Terminal 4.5 SYSTEM MENU 4.5.1 Executing Setup (SETUP Menu) The BHT setup can be effectively executed using the BHT Setting and clone functions. The following explains setup using two BHTs with the clone function. Use the procedure below for BHT setup.
  • Page 70 BHT-805BWB Execute the master-side setup. Setup is performed with the BHT Setting and other SYSTEM MENU functions. Perform the settings for the master-side clone using “2: CLONE” and “3:OPTION” from the SETUP menu. Use the “OPTION” menu to perform settings such as the clone number, and authentication key.
  • Page 71 Barcode Handy Terminal Align the BHTs as shown below, and then press ENT on the transmitting device. Data 15 cm or less Slave Side Master Side (Test Use) The data transmission progress status is shown as per the screens below. •...
  • Page 72 BHT-805BWB When communication is complete, the screen will return to the CLONE MENU (the previous screen.) In the event of a communication error, “Screen 2” below will appear. Screen 1: Error occurrence Screen 2: Error/correctly completed List of possible errors when cloning...

  • Page 73: Executing User Programs (Execute Program Menu)

    Barcode Handy Terminal 4.5.2 Executing User Programs (EXECUTE PROGRAM Menu) Individually select and execute user programs downloaded to the BHT. Use the following procedure to execute user programs. Select “1: EXECUTE PROGRAM” at the SYSTEM MENU and then press the ENT key. The screen on the right displays.

  • Page 74: Downloading Files (Download Menu)

    BHT-805BWB 4.5.3 Downloading Files (DOWNLOAD Menu) Download files to the BHT user area from other devices such as the host computer. • If a file with the same name as one already used in the user area of the target memory in - Point - the BHT is downloaded, the newly downloaded file replaces the old one.
  • Page 75 Barcode Handy Terminal Select either “1: FILE” or ”2: HT<-->HT COPY” and press the ENT key. The screen on the right displays indicating that the BHT is waiting for the file to be downloaded. The screen on the right displays only when “1: FILE” is selected. If “2: HT<-->HT COPY”...
  • Page 76 BHT-805BWB When downloading is complete, the speaker sounds once and the screen on the right displays. When the number of received records equals the total number of records, downloading is complete. (When using the Ymodem protocol, the received file size equals the total file size.)

  • Page 77: Uploading Files (Upload Menu)

    Barcode Handy Terminal 4.5.4 Uploading Files (UPLOAD Menu) Upload files stored in the BHT user area to another device. Use the following procedure to upload files. Select “3: UPLOAD” at the SYSTEM MENU and then press the ENT key. The screen on the right displays. “1: ONE FILE”: Select to upload a specific file.
  • Page 78 BHT-805BWB Select “1: FILE”, ”2: ALL FILES” or ”3: HT<-->HT COPY” and press the ENT key. When “1: FILE” is selected: The screen on the right displays. Select the file to be uploaded and press the ENT key. Next, proceed to step 3.
  • Page 79 Barcode Handy Terminal By executing the BHT-BASIC 4.0 Transfer Utility or similar program, the screen on the right displays and file uploading is commenced. (Refer to the “BHT-BASIC4.0 Transfer Utility User’s Guide.”) The screen on the right displays during uploading. The screen on the right displays indicating the file name and the number of sent records/the total number of records.

  • Page 80: Copying Files Between 2 Bht Units

    BHT-805BWB 4.5.5 Copying Files between 2 BHT Units Copy “all files (excluding font files)”, “setting data”, and the “date and time” stored in the BHT user area to another BHT. Use the following procedure to copy files between 2 BHT units.
  • Page 81 Barcode Handy Terminal The following setting data is copied when copying between BHT units. - Note - LCD contrast level Volume Switching between speaker and vibrator Program to be executed automatically when the BHT is turned ON Message version (English or Japanese) Backlight brightness of the LCD display Backlight brightness of the LCD display during power save mode Display font size...
  • Page 82 BHT-805BWB FTP option, Line delimiters (CR/LF) FTP option, Handling of line delimiters FTP option, Handling of trailing spaces in data fields FTP option, Upload mode FTP option, Verbose mode IP address of host computer for ping-test Data size of echo request...

  • Page 83: System Environment Settings (Set System Menu)

    Barcode Handy Terminal 4.5.6 System Environment Settings (SET SYSTEM Menu) Use the following procedure to set the system environment. Select “4: SET SYSTEM” at the SYSTEM MENU and then press the ENT key. The SET SYSTEM menu screen on the right displays. SYSTEM MENU 1/2 “1: EXECUTE PROGRAM”: Sets the auto-start execution program to be executed when the power is...
  • Page 84 BHT-805BWB [1] Setting the auto-start execution program Use the following procedure to set the auto-start execution program. Select “1: EXECUTE PROGRAM” at the SET SYSTEM menu and then press the ENT key. The SET EXECUTE PROGRAM menu screen on the right displays.
  • Page 85 Barcode Handy Terminal [2] Setting the message version, system status indication and screen display compatible mode Use the following procedure to set the display language, system status indication and screen display compatible mode. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight ”1: MESSAGE”, ”2: STATUS”, “3: BOOT LOGO”, or “LOGO DISPLAY TIME”.
  • Page 86 BHT-805BWB Simultaneously press the SF key and “1: MESSAGE” at the SET DISPLAY menu. The SET DISPLAY menu on the right displays. The highlighted settings will be the current settings. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight ”1: MENU”...
  • Page 87 Barcode Handy Terminal BHT-805BWB BHT-300 BHT-7500 BHT-100 Normal Mode Mode Mode Mode Standard 22 x 16 char. 26 x 26 char. 20 x 26 char. 20 x 20 char. font (10 x 20 dots) (9 x 12 dots) (12 x 12 dots)
  • Page 88 BHT-805BWB System Status Indication Turning ON the system status indication displays the following icons at the bottom of the screen. Indication Icon Description Key Shift status Displays when the keys on the keypad are in Shift mode. Alphabet Displays when the BHT is set to alphabet entry mode.
  • Page 89 Barcode Handy Terminal [4] Setting the special barcode scanning parameters Use the following procedure to set the barcode scanning conditions. Select “4: BARCODE” at the SET SYSTEM menu and then press the ENT key. The SET BARCODE menu screen on the right displays. The highlighted display and displayed values will be the current settings.
  • Page 90 BHT-805BWB “3: ITF”: Minimum number of digits to be read for ITF “4: STF”: Minimum number of digits to be read for STF “5: CODABAR”: Minimum number of digits to be read for Codabar Set minimum number of digits for the code to be scanned.
  • Page 91 Barcode Handy Terminal Use the following procedure if necessary to change the communication environment settings. Select “5: COMMUNICATION” at the SET SYSTEM menu and then press the ENT key. The SET COMMUNICATION menu screen on the right displays. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to be set and press the ENT key.
  • Page 92 BHT-805BWB “2: PROTOCOL”: Communication protocol options setting screen Select “2: PROTOCOL” to display the screen shown on the right The highlighted settings will be the current settings. “1: SERIAL No.”: Selects whether or not to add serial numbers to data blocks.
  • Page 93 Barcode Handy Terminal “2: PROTOCAL TYPE”: Setting the communication protocol type Select “2: PROTOCOL TYPE” at the SET COMMUNICATION menu and then press the ENT key. The PROTOCOL TYPE menu screen on the right displays. The highlighted setting will be the current setting. “1: Ymodem”: Selects Ymodem when uploading/downloading in System Mode or for the execution of the XFILE statement in BHT-BASIC.
  • Page 94 BHT-805BWB Select “1: Ymodem” at the PROTOCOL TYPE menu to display the screen on the right. The highlighted settings will be the current settings. “1: CR/LF”: Specifies line delimiters. “2: CR/LF CODE”: Specifies handling for line delimiters in records when data files are downloaded.
  • Page 95 Barcode Handy Terminal Select “3: BHT-Ir Protocol” at the PROTOCOL TYPE menu to display the screen on the right. Enter the ID number of the BHT using the numerical keys and then press the ENT key. If there is no need to edit the current setting, press the ENT key only.
  • Page 96 BHT-805BWB [6] Defining the functions of the Shift key and Magic keys Use the following procedure to change the key settings. Select “6: KEY” at the SET SYSTEM menu and then press the ENT key. The SET KEY menu screen on the right displays.
  • Page 97 Barcode Handy Terminal “2: M1 KEY” - ”5: M4 KEY”: Defining the Mx key functions Select “2: M1 KEY” to “5: M4 KEY” at the SET KEY menu and then press the ENT key. The SET Mx KEY menu screen on the right displays. (In the example on the right, “2: M1 KEY”...
  • Page 98 BHT-805BWB Defining the backspace/clear key (BS/C key) function The BS/C key deletes the last entered character (backspace), and when pressed and held, cancels entry and returns the LCD display to the previous screen (clear). This menu sets the key hold time for “clear”.
  • Page 99 Barcode Handy Terminal [7] Setting the TCP/IP, FTP and DHCP Use the following procedure to change the TCP/IP, FTP and DHCP settings. Select “7: TCP/IP” at the SET SYSTEM menu and then press the ENT key. The SET TCP/IP menu screen on the right displays. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the item to be set, and then press the ENT key.
  • Page 100 BHT-805BWB “2: IP ADDRESS”: Setting the IP address Select “2: IP ADDRESS” at the SET TCP/IP menu to display the screen on the right where the current settings are displayed. To change the setting: (1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the item to be set and press the ENT key.
  • Page 101 Barcode Handy Terminal Setting the FTP Select “2: SET FTP” at the SET TCP/IP menu and then press the ENT key. The SET FTP menu screen on the right displays. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item to be set, and then press the ENT key.
  • Page 102 BHT-805BWB “2: OPTION”: Setting the FTP options Select “2: OPTION” at the SET FTP menu to display the screen on the right where the current settings are displayed. “1: CR/LF”: Specifies line delimiters that should match ones used in the server OS.
  • Page 103 Barcode Handy Terminal Setting the DHCP Select “3: DHCP” at the SET TCP/IP menu and then press the ENT key. The SET DHCP screen on the right displays. The highlighted setting will be the current setting. Press the BS/C key to return to the SET TCP/IP menu. Press the dot key while holding down the SF key at the SET DHCP menu to display the NETWORK (DHCP) screen (acquisition check screen for IP address at DHCP).
  • Page 104 BHT-805BWB [8] Setting the resume function Use the following procedure to set the resume function. Select “1: RESUME” from the SET SYSTEM Menu 2/2 and then press the ENT key. The SET RESUME screen on the right displays. The highlighted setting will be the current setting.
  • Page 105 Barcode Handy Terminal [10] Setting the RPC The BHT-800 series is compliant with the BHT Manager software (host-side tool). The RPC screen displays the settings used to communicate with the BHT Manager software. For details, refer to the “BHT Manager User’s Manual”. The following explains only the operation of this menu and an outline of the settings.
  • Page 106 BHT-805BWB [11] Setting the operation log The BHT-800 series is compliant with the BHT Manager software (host-side tool). The OPERATION LOG sets wheter of not create log data that the BHT Manager collects. For details, refer to the “BHT Manager User’s Manual”. The following explains only the operation of this menu and an outline of the settings.

  • Page 107: Bht Operation Test (Test Menu)

    Barcode Handy Terminal 4.5.7 BHT Operation Test (TEST Menu) Use the following procedure to perform a BHT operation test. Select “5: TEST” at the SYSTEM MENU and then press the ENT key. The TEST menu screen on the right displays. “1: BARCODE”: Selects the barcode scanning test.
  • Page 108 BHT-805BWB [1] Barcode scanning test Use the following procedure to perform a barcode scanning test. Select “1: BARCODE” at the TEST menu and then press the ENT key. The screen on the right displays. Scan a barcode with the BHT Upon completion of barcode scanning, the speaker beeps once, and the indicator LED turns blue.
  • Page 109 Barcode Handy Terminal Setting the Barcode Scanning Test Options When performing the barcode scanning test, press the F1 key to display the screen on the right, allowing barcode scanning test options to be set. Details of option settings are as follows. [1] Add on: ON/OFF The highlighted settings will be the current settings.
  • Page 110 BHT-805BWB [2] Memory test Use the following procedure to perform a memory test. Select “2: MEMORY” at the TEST menu and then press the ENT key. The screen on the right displays, and the BHT reads and writes data to and from all areas of the RAM and performs an address check.
  • Page 111 Barcode Handy Terminal [3] Scale test Use the following procedure to perform a scale test. Select “3: BEEPER” at the TEST menu and then press the ENT key. The screen on the right displays, and the beeper sounds at the three octaves listed below.
  • Page 112 BHT-805BWB [5] LCD and indicator LED tests Use the following procedure to perform an LCD and indicator LED test. Select “5: LCD” at the TEST menu and then press the ENT key. The TEST BEEPER screen on the right displays.
  • Page 113 Barcode Handy Terminal Press the ENT key. The entire screen turns a lighter shade of gray. Press the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 114 BHT-805BWB Press the ENT key. The entire screen turns red, and at the same time, the indicator LED turns red. Press the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 115 Barcode Handy Terminal Press the ENT key. A 1-dot thick frame displays around the screen. Press the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu. Press the ENT key.
  • Page 116 BHT-805BWB [6] File test The file test allows detailed information on program files, data files, audio files (*.WAV), and image files(*.JPG) to be checked. In addition, pressing the M1 key sorts the files. Select “6: FILE” at the TEST menu and then press the ENT key.
  • Page 117 Barcode Handy Terminal ◆ Media files (*.WAV) Use the cursor keys ([▲] [▼]) to select a *.WAV file, and then press the ENT key. The screen to the right will appear, displaying the file size and creation date. Press the F1 key to play the file. Press the F1 key while the file is playing to stop the file, and return to the previous screen.
  • Page 118 BHT-805BWB ◆ Media files (*.JPG) Use the cursor keys ([▲] [▼]) to select a *.JPG file, and then press the ENT key. The screen to the right will appear, displaying the file size, creation date, and a preview image. Press the F1 key to display the image in full screen.
  • Page 119 Barcode Handy Terminal ◆ Font files (*.FN3/FN4) Use the cursor keys ([▲] [▼]) to select a *.FNT file, and then press the ENT key. Press the BS/C key to return to the previous screen. BASIC User Program (*.PD3/PD4) ◆ Use the cursor keys ([▲] [▼]) to select a *.PD3/PD4 file, and then press the ENT key.
  • Page 120 BHT-805BWB ◆ Other files (*.DAT, *.TXT, etc.) Use the cursor keys ([▲] [▼]) to select a file, and then press the ENT key. If field information is available, press the F1 key to display the next screen. To return to the previous screen, press the F1 key again, or press the BS/C key.
  • Page 121 Barcode Handy Terminal [7] Communication test Use the following procedure to perform a communication test. Select “7: COMMUNICATION” at the TEST menu and then press the ENT key. The TEST COMMUNICATION screen shown on the right displays. “1: OPTICAL”: Performs an infrared communication test. Refer to the following section for details of the above items.
  • Page 122 BHT-805BWB At the slave BHT to be tested, select “1: SLAVE”, and at the master BHT, select “2: MASTER”. Then press the ENT key. The screen on the right displays during the test, and an infrared communication test is performed.
  • Page 123 Barcode Handy Terminal [8] Key-entry, speaker and vibrator test Use the following procedure to perform a key entry, speaker and vibrator test. Select “8: KEY & VIBRATION” at the TEST menu and then press the ENT key. The screen on the right displays, and the BHT waits for key entry. Press the ENT key.
  • Page 124 BHT-805BWB [9] PING test Use the following procedure to perform a PING test. Select “9: PING” at the TEST menu and then press the ENT key. The TEST PING screen displays as shown on the right. “1: RUN PING”: Runs the PING test.
  • Page 125 Barcode Handy Terminal Upon completion of the PING test, the screen on the right displays. The PING result may include the following: Displays the number of echo replies. [XXXXX]: Echo reply time in milliseconds Displays the number of errors found during the PING test. TIMEOUT: Displays the number of timeouts (for echo replies) that took place during the PING test.
  • Page 126 BHT-805BWB “2: SET PING” (PING Options Setting Screen) Select “2: SET PING” at the TEST PING menu and then press the ENT key. The current settings are displayed. [1: DESTINATION IP]: Specifies the IP address of the host computer to be pinged.
  • Page 127 Barcode Handy Terminal PING Echo Request Transmission Timing (SEND TYPE) Two types of echo request send timings are available: TYPE 1 and TYPE 2. ν TYPE1 After sending an echo request, PING waits for the period specified at INTERVAL and then sends an echo request again.
  • Page 128 BHT-805BWB “3: SET DEVICE” (PING Device Setting Screen) Select “3: SET DEVICE” at the TEST PING menu and then press the ENT key. The TCP/IP communication device, link layer, and transmission speed display. Press the BS/C key to return to the TEST PING menu.

  • Page 129: System Information (System Information Menu)

    Barcode Handy Terminal 4.5.8 System Information (SYSTEM INFORMATION Menu) [1] Displaying the BHT system information Use the following procedure to display the BHT system information. Select “6: VERSION” at the SYSTEM MENU and then press the ENT key. The SYSTEM INFORMATION screen on the right displays. [SYSTEM Ver.]: System program version [ROM SIZE]:...
  • Page 130 BHT-805BWB [1] Functions for which licenses have been registered (∗) Use the cursor keys ([▲] [▼]) to highlight the name of a function that has been registered, and then press the ENT key to display a screen similar to that shown on the right containing the license registration details.
  • Page 131 Barcode Handy Terminal [2] CU-811 System Information Display Use the following procedure to display CU-811 system information. Place the BHT on the CU-811. Select “6: VERSION” at the SYSTEM MENU and then press the ENT key. The SYSTEM INFORMATION screen on the right displays. Press the M2 key.

  • Page 132: Downloading/Uploading Files By Ftp (Ftp Menu)

    BHT-805BWB 4.5.9 Downloading/Uploading Files by FTP (FTP MENU) Use the following procedure to download and upload files by FTP. Select “7: FTP” at the SYSTEM MENU and then press the ENT key. The FTP MENU screen on the right displays.
  • Page 133 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) to highlight the item to be set, and then press the ENT key. The mode changes to entry mode and the cursor displays. Enter a setting value with the numerical keys and dot key. Press the SF and the BS/C key to change the entry mode (numerical entry (no guidance display) and alphabet entry).
  • Page 134 BHT-805BWB [2] Uploading by FTP Select “2: UPLOAD” at the FTP MENU and then press the ENT key. The screen on the right displays if uploadable files exist. [1: DIR/FILE]: Entry box for the directory and/or file name [2: FIELDS]: File name currently selected (Nothing is displayed at the FTP client initial status.)
  • Page 135 Barcode Handy Terminal Enter the directory and file name, or select a file, and then press the ENT key. Press the BS/C key to return to the FTP MENU screen. DIR/FILE entry box: The FTP client will interpret a character string entered into this box as a directory name at first, and will therefore send a Change Directory request to the FTP server.
  • Page 136 BHT-805BWB FTP Download/Upload Messages When the BHT is uploading or downloading files by FTP, the following messages will appear at the bottom of the screen: Aborted. Uploading or downloading has been interrupted. Connection error The communication pathway is disconnected. Device error Failed to open a device.
  • Page 137 Barcode Handy Terminal Response Messages from the FTP server The messages that FTP servers send during and after FTP operations vary, but servers all use the same reply codes as listed below. 110 : Restart marker reply 120 : Service ready in approx. nnn minutes. 125 : Data connection has been established.

  • Page 138: Wireless Communcation Settings (Device Menu)

    BHT-805BWB 4.5.10 Wireless Communcation Settings (DEVICE MENU) Use the following procedure to set up wireless communication and bluetooth wireless communication Select “8: DEVICE” in the SYSTEM MENU and then press the ENT key. The DEVICE MENU screen on the right is displayed.
  • Page 139 Barcode Handy Terminal Wireless Network Settings Menu Select “1: RF NETWORK” in the SET RF PARAMETER menu and then press the ENT key. The SET RF NETWORK screen on the right is displayed. [1: NETWORK PARAMETER]: Sets up wireless network parameter. [2: RF OPTION]: Sets up wireless network option.
  • Page 140 BHT-805BWB Wireless Network Parameter Settings Select “1: NETWORK PARAMETER” in the SET RF NETWORK menu and then press the ENT key. The screen on the right is displayed. [1: SSID]: Displays the current Service Set ID. Refer to “Chapter 5 Communication” – “5.3 Wireless Communication” for details on the Service Set ID.
  • Page 141 Barcode Handy Terminal Wireless Security Settings Select “2: SECURITY” in the SET RF PARAMETER menu and then press the ENT key. The screen on the right is displayed. [1:SECURITY MODE]: Sets up the wireless security mode. [2:CONFIGURATION]: Sets up the wireless security parameters. Refer to the following section for details of the above items.
  • Page 142 BHT-805BWB Wireless Security None Mode WEP can be used with the Wireless security None mode. To enable WEP, WEP and WEP KEY settings are required. The first WEP KEY setting is the encryption key, which can be set from WEP KEY 1 to 4.
  • Page 143 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) or numerical keys ([2] [3] [4] [5]) to highlight a WEP KEY from 1 to 4, and then press the ENT key. The screen on the right displays. [1: KEY SIZE]: Select 40 (40 bits) or 128 (128 bit).
  • Page 144 BHT-805BWB Press the BS/C key to return to the SECURITY CONFIG menu. It is not possible to read a written WEP key, and therefore the WEP key setting must always - Point - be stored in a safe location. When not setting a WEP key, the WEP key will be the same as the previous setting.
  • Page 145 Barcode Handy Terminal Wireless Security 1x Supplicant Mode EAP authentication can be used with wireless security 1x Supplicant mode. Select “2: CONFIGURATION” at the SET SECURITY menu and then press the ENT key. The screen on the right displays. [1: AUTH PARAM (EAP)]: EAP authentication parameter setting Press the BS/C key to return to the SET SECURITY menu.
  • Page 146 BHT-805BWB Use the numerical keys to enter an ID and press the ENT key. Press the SF and the BS/C key to change the entry mode (numerical entry (no guidance display) and alphabet entry). To delete a single character, press the BS/C key. To delete the entire entry, press and hold the BS/C key, or press the SF key and BS/C key simultaneously.
  • Page 147 Barcode Handy Terminal Wireless Security WPA-1x Mode EAP authentication and an encryption system can be used with wireless security WPA-1x mode. Select “2: CONFIGURATION” at the SET SECURITY menu and then press the ENT key. The screen on the right displays. [1: AUTH PARAM (EAP)]: EAP authentication parameter setting [2: WPA CIPHER]: Encryption system setting...
  • Page 148 BHT-805BWB Use the numerical keys to enter an ID and press the ENT key. Press the SF and the BS/C key to change the entry mode (numerical entry (no guidance display) and alphabet entry). To delete a single character, press the BS/C key. To delete the entire entry, press and hold the BS/C key, or press the SF key and BS/C key simultaneously.
  • Page 149 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: WPA CIPHER] and then press the ENT key. The screen on the right displays. [1: CIPHER MODE]: Selects TKIP or AES. Ensure that [1: CIPHER MODE] is highlighted and then select TKIP or AES.
  • Page 150 BHT-805BWB Ensure that [1: PRE SHARED KEY] is highlighted and then press the ENT key. The mode changes to entry mode and the cursor displays. Use the numerical keys to enter a shared key and press the ENT key. Press the SF and the BS/C key to change the entry mode (numerical entry (no guidance display) and alphabet entry).
  • Page 151 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: AUTH PARAM (EAP)] and then press the ENT key. The screen on the right displays. [1: EAP TYPE]: Selects PEAP or EAP-TLS. [2: IDENTITY]: [3: ANONYMOUS ID]: Anonymous ID [4: PASSWORD]: Password...
  • Page 152 BHT-805BWB Use the cursor keys ([▲] [▼]) or numerical key ([4]) to highlight [4: PASSWORD] and then press the ENT key. The mode changes to entry mode and the cursor displays. Use the numerical keys to enter a password and press the ENT key.
  • Page 153 Barcode Handy Terminal Wireless Security WPA2-PSK Mode PSK authentication and an encryption system can be used with wireless security WPA2-PSK mode. Select “2: CONFIGURATION” at the SET SECURITY menu and then press the ENT key. The screen on the right displays. [1: AUTH PARAM (PSK)]: PSK authentication parameter setting [2: WPA CIPHER]: Encryption system setting...
  • Page 154 BHT-805BWB Press the ENT key or BS/C key to return to the SECURITY CONFIG menu. Wireless Parameter Initialization Select “3: INITIALIZE” at the SET RF PARAMETER menu and then press the ENT key. The screen on the right displays. To initialize wireless parameters: Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes]...
  • Page 155 Barcode Handy Terminal [1]-2 Site Survey Menu Select “2: SITE SURVEY” at the RF MENU and then press the ENT key. The SITE SURVEY screen on the right displays. Press the BS/C key to return to the RF MENU screen. Press the ENT key.
  • Page 156 BHT-805BWB [2] BLUETOOTH MENU (RF MENU) Select “2: BLUETOOTH” in the DEVICE MENU and then press the ENT key. The BLUETOOTH MENU screen on the right is displayed. [1: INFORMATION]: ® Displays the Bluetooth interface information. [2: SET BLUETOOTH]: ®...
  • Page 157 Use the numeric keys and the dot key to enter the Bluetooth device name. ® The Bluetooth device name can be up to 16 characters long. The default setting is DENSO-BHT. To swicth the entry mode (between numeric and alphabet entries), press the SF key. ® ®...
  • Page 158 BHT-805BWB Setting up the device detection parameters Select “2: INQUIRY” in the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. [1: INQUIRY TIME]: Sets up the duration of device detection in seconds. [2: NUM RESPONSES]: Sets up the number of devices to detect.
  • Page 159 Barcode Handy Terminal Setting up the master station Select “3: MASTER” in the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. [1: PEER BD_ADDR]: Sets up the remote device address of the connection target. ®...
  • Page 160 BHT-805BWB Setting up the serial port profile (SPP) service for the connection target Press numeric key [7] and the SF key simultaneously in the SET MASTER menu to display the screen on the right. [1: SPP SERVICE]: Sets up the serial port service name for the connection target.
  • Page 161 Barcode Handy Terminal Setting up the slave station Select “4: SLAVE” in the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. ® [1: PASSKEY]: Sets up the Bluetooth passkey for the slave station. [2: TIMEOUT]: Sets up the timeout limit in seconds.
  • Page 162 BHT-805BWB Setting up the file transfer protocol options Select “5: SPP PARAMETER” in the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. “1: SERIAL No.”: “ON”: Adds serial numbers to data blocks. “OFF”: Does not add serial numbers to data blocks “2: H.PARITY”:...
  • Page 163 Barcode Handy Terminal [3] Detecting remote devices Select “3: BROWSE DEVICE” in the BLUETOOTH MENU and then press the ENT key. The screen on the right is displayed. [1: INQUIRY]: Sets up the device detection. [2: BROWSE SERVICE]: Searches the bluetooth services. [3: AUTH BD_ADDR]: Displays a list of authenticated remote device addresses.
  • Page 164 BHT-805BWB Use the cursor keys ([▲] [▼]) or numeric key ([3]) to highlight the [3: NUM RESPONSES] and then press the ENT key. Entry mode is activated and the cursor is displayed. Use the numeric keys to enter the desired value.
  • Page 165 Barcode Handy Terminal The confirmation screen on the right is displayed. To set the selected address as a remote device address, select “1: Yes” and press the ENT key. To cancel the new setting, select the “2: No” and press the ENT key. The screen returns to the BROWSE DEVICE menu.
  • Page 166 BHT-805BWB Searching for services Select “2: BROWSE SERVICE” in the BROWSE DEVICE menu and then press the ENT key. The screen on the right is displayed. [1: DO IT]: Starts service inquiry. [2: TIMEOUT]: Sets up the services inquiry time.
  • Page 167 Barcode Handy Terminal When the service inquiry is completed or the service inquiry time has ® elapsed, the Bluetooth device address of the destination remote device and the provided service names are displayed as shown on the screen on the right. Press the Backspace/clear key to return to the BROWSE DEVICE menu.
  • Page 168 BHT-805BWB Displaying the authenticated remote device addresses Select “3: AUTH BD_ADDR” in the BROWSE DEVICE menu and then press the ENT key. A list of the authorized remote device addresses is displayed. A maximum of three authorized remote device addresses is displayed.
  • Page 169 Barcode Handy Terminal File transfer with serial port profile Select “4: SERIAL PORT” in the BLUETOOTH MENU and then press the ENT key. The screen on the right is displayed. [1: DO IT]: Connects via the serial port profile for transferring files. [2: MODE]: Sets up the connection mode.
  • Page 170 BHT-805BWB Use the cursor keys ([▲] [▼]) or numeric key ([1]) to highlight the [1: DO IT] and then press the ENT key. A serial port connection is started. Press the Backspace/clear key to return to the SERIAL PORT MENU.

  • Page 171: Wireless Communcation Settings (Device Menu)

    Barcode Handy Terminal 4.5.11 Wireless Communcation Settings (DEVICE MENU) Delete program files or data files stored in the FLASH ROM. Use the following procedure to delete files. Press the 0 key while holding down the SF key at the SYSTEM MENU.

  • Page 172: Deleting Font Files (Delete File Menu)

    BHT-805BWB 4.5.12 Deleting Font Files (DELETE FILE Menu) Delete font files stored in the FLASH ROM. If there is insufficient user area, by deleting font files, a user area equal to the size of the deleted font files can be secured.
  • Page 173 Barcode Handy Terminal To delete font files: Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes] and then press the ENT key. The selected file is deleted and the screen on the right displays. Press the BS/C key to return to the DELETE FILE menu. To cancel: Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: No] and then press the ENT key.

  • Page 174: Parameter Menu)

    BHT-805BWB 4.5.13 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu) The system parameter file (file name: ”_BHT.SYS”) is a file containing settings such as values, LCD contrast and speaker volume set at section “4.5.6 Setting Environment Settings”. The same settings can be set at another BHT by copying the system parameter file to that BHT.
  • Page 175 Barcode Handy Terminal [1] Downloading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen on the right displays indicating that the BHT is waiting for the system parameter file to be downloaded.
  • Page 176 BHT-805BWB [2] Uploading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen on the right displays indicating that the BHT is waiting for the system parameter file to be uploaded.

  • Page 177: Setting The Remote Wake-Up (Set Remote Wakeup Menu)

    Barcode Handy Terminal 4.5.14 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu) Use the following procedure to perform remote wake-up settings. Press the 4 key while holding down the SF key at the SYSTEM MENU. The SET REMOTE WAKEUP menu displays as shown on the right. [1: REMOTE WAKEUP]: Enables or disables remote wake-up.

  • Page 178: Downloading/Uploading The System Message File (System Message Menu)

    BHT-805BWB 4.5.15 Downloading/Uploading the System Message File (SYSTEM MESSAGE Menu) The system message file is a file (file name: “_B80MSG.FN3”) used by the system to display messages such as “Shutdown in progress. Do not remove the battery.” or “Charge the battery!”.
  • Page 179 Barcode Handy Terminal [1] Downloading the system message file Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen on the right displays indicating that the BHT is waiting for the system message file to be downloaded.
  • Page 180 BHT-805BWB [2] Uploading the system message file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen on the right displays indicating that the BHT is waiting for the system message file to be uploaded.

  • Page 181: Updating The System (Modify Menu)

    Barcode Handy Terminal 4.5.16 Updating the System (MODIFY MENU) Use the following procedure to update the system. Press the dot key while holding down the SF key at the SYSTEM MENU. The MODIFY MENU screen on the right displays. [1: SYSTEM MODIFY]: Updates the BHT system. [2: CU-F/W MODIFY]: Updates the CU-811 system.
  • Page 182 BHT-805BWB When the Displayed File Name Differs from the BHT System Update File If the name of the file displayed at [2: FILENAME] differs from the name of the BHT system update file to be used for updating the system, enter the correct file name.
  • Page 183 Barcode Handy Terminal [2] Updating the CU-811 system Update the CU-811 system after downloading the CU-811 system update file. (Refer to section ”4.2.2 CU-811 System Update” for details.) Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: CU-F/W MODIFY] and then press the ENT key.
  • Page 184 BHT-805BWB If the System Update File Does not Exist when Updating the CU-811 System The screen on the right displays if the CU-811 system update file does not exist when updating the CU-811 system. Download the CU-811 system update file and update the CU-811 system again.
  • Page 185 BHT-805BWB Chapter 5 Communication This chapter describes technical information relating to the infrared communication, wireless communication, Bluetooth wireless communication functions with which the BHT is equipped. Infrared Communication ･･･････････････････････････････････････ 170 5.1.1 Infrared Communication Port Transmission Speed ･･････････････････ 171 5.1.2 BHT Hardware (Physical Layer) and Communication Protocols ･･･････ 171 Wireless Communication ･･･････････････････････････････････････...
  • Page 186 BHT-805BWB 5.1 Infrared Communication The BHT has a built-in infrared communication device that enables wireless transfer of programs and data both between the BHT and the host computer, and between BHTs without the need for a cable. Infrared communication offers the following benefits over other forms of communication.
  • Page 187 Barcode Handy Terminal 5.1.1 Infrared Communication Port Transmission Speed Communicating Device Transmission Speed BHT-800 Series Max. 460.8 kbps CU-801 Max. 115.2 kbps CU-821 Max. 460.8 kbps CU-811 Max. 4 Mbps 5.1.2 BHT Hardware (Physical Layer) and Communication Protocols BHT Hardware (Physical Layer) (Exclude Transmission Speed : 460.8 kbps) The BHT complies with IrDA Ver1.3 Low Power physical layer compliant by IrDA (Infrared Data Association).
  • Page 188 3. If other problems arise due to reasons such as electromagnetic interference from this device to a specified low-power wireless station being used for mobile identification, please contact DENSO WAVE through QBdirect (see page ii).
  • Page 189 Barcode Handy Terminal 5.2.2 Setting Parameters Programs written in BHT-BASIC control wireless communication with commands between the BHT and access points which are connected each other by a wireless LAN. For the setting procedure of RF-related parameters, refer to “Chapter 4 System Operation” – “Wireless Communication Settings (RF MENU).”...
  • Page 190 BHT-805BWB EAP TYPE This is the EAP authentication method setting used for 802.1x authentication. Select PEAP or EAP-TLS. This is valid only when the Security mode is 1x Supplicant, WPA-1x or WPA2-1x. IDENTITY This is the user ID used for 802.1x authentication.
  • Page 191 Barcode Handy Terminal ® 5.3 Bluetooth Wireless Communication 5.3.1 Usage Precautions • It may be possible to avoid the easy occurrence of communication errors by pointing the right side of the BHT (equipped with builtin antenna) toward the access point. This is because the radio waves of the 2.4 GHz waveband on which the BHT operates are emitted straight ahead and do not easily pass through the human body and so on.
  • Page 192 BHT-805BWB 5.3.2 Setting Parameters ® Bluetooth Device Address ® ® Remote devices return these addresses, uniquely assigned to each Bluetooth device by the Bluetooth SIG, during device detection. ® Bluetooth Device Name ® Bluetooth devices can distinguish themselves using user-friendly names--Robert or Sandra, for example.
  • Page 193 LSB (Least significant bit) first Vertical parity None Note1: 460800 bps is only possible when communicating from one BHT-805BWB unit to another, or to the CU-821. Note2: 4 Mbps is only possible for communication with the dedicated CU-811 unit. Synchronization For accurate data transaction, it is necessary to synchronize transmission between the sender and receiver.
  • Page 194 BHT-805BWB Transmission Code and Bit Order • All characters should be coded to 7 or 8-bit code for data transmission. • The standard code at the BHT is ASCII 7-bit or 8-bit code. • The transmission bit order is LSB (Least significant bit) first.
  • Page 195 Vertical parity None Stop bit length 1 bit Note1: 460800 bps is only possible when communicating from one BHT-805BWB unit to another, or with the CU-821. Note2: 4 Mbps is only possible for communication with the dedicated CU-811 unit. System Mode Refer to “Chapter 4 System Operation”...
  • Page 196 BHT-805BWB...
  • Page 197 BHT-805BWB Chapter 6 Maintenance This chapter describes battery cartridge and daily procedures for taking care of the BHT and CU/CH. Replacing the Battery Cartridge ······························································182 6.1.1 Battery Cartridge Service Life ··································································182 6.1.2 Battery Cartridge Replacement Method···················································182 Using the BHT after Long Periods·························································184 Daily Maintenance·················································································185...

  • Page 198: Replacing The Battery Cartridge

    (Refer to “Chapter 2 BHT Preparation” – “2.2 Loading and Charging the Battery Cartridge”.) Do not use battery cartridges other − Point − than that specified by DENSO WAVE.
  • Page 199 Barcode Handy Terminal Insert the battery cartridge cover tab (1), and then close the battery cartridge cover (2) to lock the cover in position. Press the battery cover into place until a click is heard. Battery Cartridge Recycling Request ・ This product uses a lithium-ion battery that contains scarce, recyclable resources. We kindly ask for your cooperation in recycling to ensure reuse of these resources.

  • Page 200: Using The Bht After Long Periods

    BHT-805BWB 6.2 Using the BHT after Long Periods Data stored in the BHT may be lost and the calendar clock may stop if the BHT is left unused for long periods of time. Take appropriate measures in accordance with the procedure below.

  • Page 201: Daily Maintenance

    Barcode Handy Terminal 6.3 Daily Maintenance 6.3.1 Proper Care of the BHT Wipe any dirt from the BHT housing, charge terminals, and BHT or battery cartridge terminals with a dry, soft cloth. Ensure to turn OFF the BHT before cleaning. Never use substances such as benzene or alcohol, as this may cause the housing to be marred or −...
  • Page 202 BHT-805BWB...
  • Page 203 BHT-805BWB Chapter 7 Error Messages This chapter describes causes and countermeasures for error messages that display during BHT use. System Errors ·························································································188 System Mode Errors··············································································192...

  • Page 204: System Errors

    BHT-805BWB 7.1 System Errors The error messages that display on the screen and the causes and countermeasures to be taken if an error occurs when the power is turned ON or while running a program are shown below. Message BHT Response...
  • Page 205 Barcode Handy Terminal Message BHT Response Cause Countermeasure The date and time settings calendar clock Set the current date and screen displays, awaiting integrated in the BHT has time. (Refer to “Chapter 2 BHT Preparation” – “2.4 entry. stopped because: - the battery cartridge had Initial Setup”) been removed for a...
  • Page 206 BHT-805BWB Message BHT Response Cause Countermeasure If this error occurs, the During execution of Unload reload warning tone beeps five System Program, the battery cartridge, then turn times. System Program has the BHT on. received an invalid If this error occurs command code.
  • Page 207 Barcode Handy Terminal Message BHT Response Cause Countermeasure After displaying this error Your settings made in Contact your system message, the BHT may start System Mode contain an administrator. a user program other than error. (If this error occurs, the preset auto-start System Mode settings revert...
  • Page 208 BHT-805BWB 7.2 System Mode Errors When error messages display while running System Mode, refer to the following table and take appropriate measures. Message BHT Response Countermeasure You attempted to execute a user Press the BS/C key to return to the...
  • Page 209 Barcode Handy Terminal Message BHT Response Countermeasure The current download will exceed the Press the 2 key to return to the SYSTEM maximum allowable number of files (420 MENU, then delete unnecessary files in the files) in the memory. memory (or decrease the number of files to downloaded attempted download more than one file in the...
  • Page 210 BHT-805BWB Message BHT Response Countermeasure The memory is insufficient for setting up Press the BS/C key to return to the the BHT system parameter file or system SYSTEM MENU and delete unnecessary message file to be uploaded. files. The memory already contains 420 files,...
  • Page 211 BHT-805BWB Chapter 8 Specifications This chapter describes the BHT-805BWB specifications. BHT-805BWB Specifications ··································································196 8.1.1 Hardware Specifications···········································································196 8.1.2 Barcode Specifications ·············································································197 8.1.3 Scanning Performance·············································································198 8.1.4 Interface Specifications ············································································200...

  • Page 212: Bht-805Bwb Specifications

    BHT-805BWB 8.1 BHT-805BWB Specifications 8.1.1 Hardware Specifications Power supply (main power): Rechargeable lithium-ion battery cartridge (3.7 V DC) Dimensions (W) x (L) x (H): 70 x 182 x 55 mm Weight: Approx. 220 g (including battery cartridge BT-20LB) Ambient operating temperature: -20 to 50° C...

  • Page 213: Barcode Specifications

    Barcode 8.1.2 Barcode Specifications Supported Barcode Types Barcode Type Bar Dimensions Scan Magnification Universal product codes EAN-13 (JAN-13) EAN-8 (JAN-8) UPC-A UPC-E EAN-13 (JAN-13) with add-on Min. 0.26 mm Min. 0.8 EAN-8 (JAN-8) with add-on UPC-A with add-on UPC-E with add-on 2-digit add-on 5-digit add-on Min.

  • Page 214: Scanning Performance

    H ≦ 620 mm *5 1.2 mm The label position is on the BHT-805BWB central axis. The BHT-805BWB may fail to read codes due to specular reflection depending upon the position of the light source, scanning angle of the reading window, and other conditions.
  • Page 215 Barcode Under the following conditions: Under the following conditions: - Ambient illuminance: 500 Lx. (Xenon arc lamp) - Ambient illuminance: 500 Lx. (Xenon arc lamp) - Code 39, 4 digits - EAN-13 Narrow bar: Wide bar = 1 : 2.5 - Reflection intensity of white bars: 85% min.

  • Page 216: Interface Specifications

    Transmission speed: 9,600 / 19,200 / 38,400 / 57,600 / 115,200 / 460,800 /4M bps Note: 460,800 bps is only possible when communicating from one BHT-805BWB unit to another or with the CU-821. 4 Mbps is only possible for communication with the dedicated CU-811 unit.
  • Page 217 BHT-805BWB Chapter 9 Appendices This chapter describes the CU-800 Series (option) specifications, and describes causes and countermeasures when unable to transfer files. CU-800 Specifications·············································································202 9.1.1 Hardware Specifications···········································································202 9.1.2 Charging Requirements (CU-801/811/821) ·············································202 9.1.3 Interface Specifications ············································································203 When File Transfer is Not Possible Using the Transfer Utility ···············205...
  • Page 218 BHT-805BWB 9.1 CU-800 Specifications 9.1.1 Hardware Specifications CU-801 CU-811 CU-821 Power supply: 100/230 V AC 100/230 V AC Powered from the USB (Using dedicated AC (Using dedicated AC interface * adapter) adapter) Max. power consumption: 6.5 VA 7 VA 5V 500 mA Dimensions (W) x (L) x (H): 110 x 134 x 81.7 mm...
  • Page 219 Pin. No. Signal Name Function CU-801 ↔ External Device ← Receipt data → Transmission data Data terminal ready → Signal ground — Data set ready — Transmission request — Transmission ready — The CU-801 internal wiring is shown below. CU-801 BHT-805BWB...
  • Page 220 BHT-805BWB CU-811 The CU-811 has an IEEE802.3-compliant Ethernet interface port (100Base-TX). Ethernet Interface Port (RJ45 jack) on the CU-811 Pin No. Signal Functions Send data Send data Receive data N.C. No connection N.C. No connection Receive data N.C. No connection N.C.
  • Page 221 Barcode Handy Terminal 9.2 When File Transfer is Not Possible Using the Transfer Utility This section describes the causes and remedies when file transfer is not possible using the Transfer Utility. Error No. Cause Details Remedy Illegal field information specification option Set a correct value for the field information option.
  • Page 222 BHT-805BWB Error No. Cause Details Remedy The Transfer Utility “Communication port” Specify the communication port to which the BHT is option specification is illegal. connected for the “Communication port” option. The transmission speed at the BHT and PC Ensure that the transmission speed at the BHT and does not match.
  • Page 223 Barcode Handy Terminal Error No. Cause Details Remedy An attempt was made to download a Use BHT-BASIC 4.0 format program files (*.PD4). BHT-BASIC 3.6 format program file (*.PD3). Note 1: “Customer Registration” is required to use QBdirect (free of charge). When using for the first time, complete “Customer Registration”...
  • Page 224 Barcode Handy Terminal BHT-805BWB User’s Manual First Edition July 2011 DENSO WAVE INCORPORATED...
