Denso BHT-805B User Manual

Barcode handy terminal
Hide thumbs Also See for BHT-805B:
Table of Contents

Advertisement

Quick Links

Barcode Handy Terminal
BHT-805B
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Denso BHT-805B

Summary of Contents for Denso BHT-805B

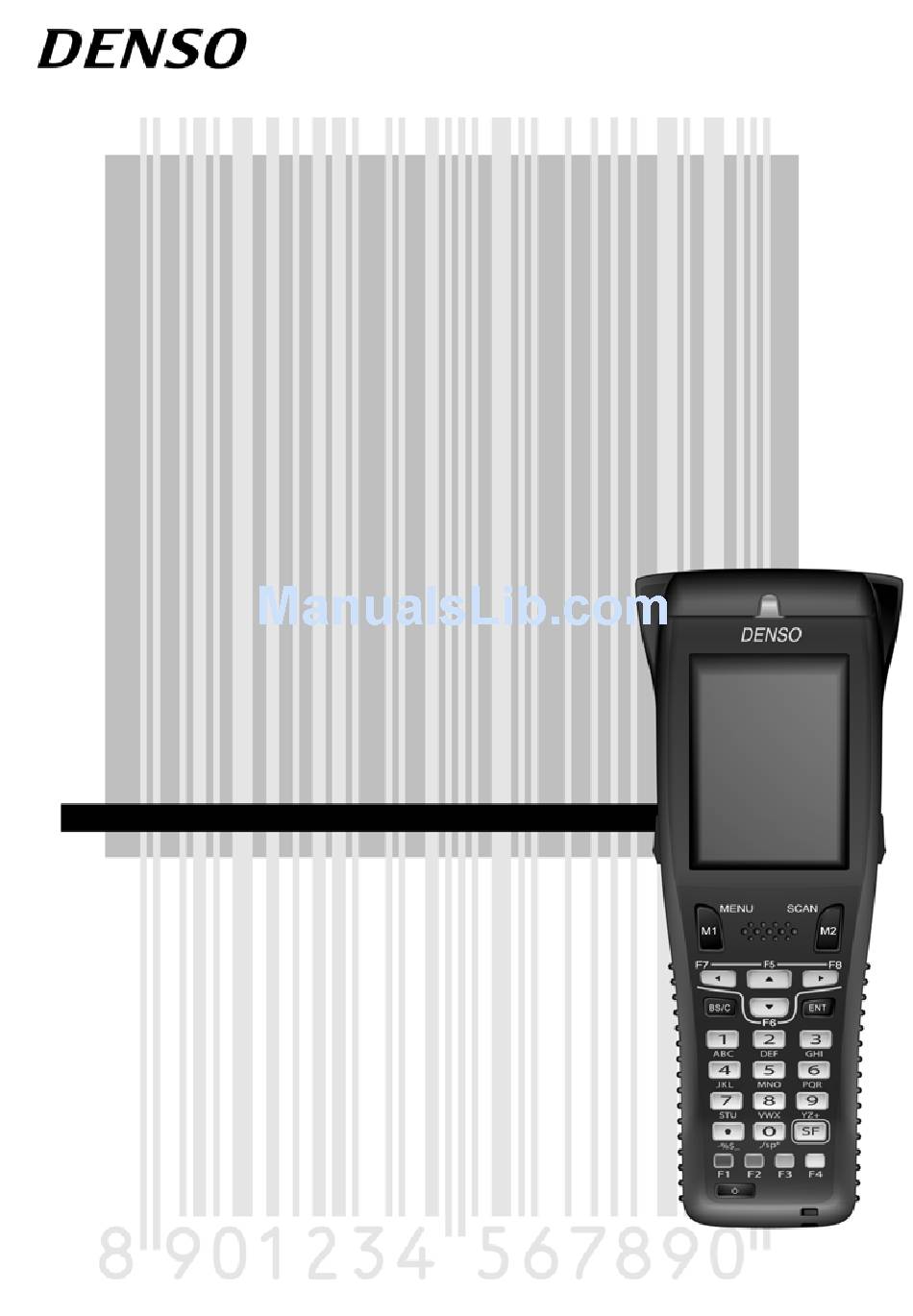

  • Page 1 Barcode Handy Terminal BHT-805B User’s Manual...
  • Page 2 3) The modification of DENSO WAVE's products by parties other than DENSO WAVE. • If it is judged by DENSO WAVE that malfunction of the product is due to the product having been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty period.
  • Page 3 Barcode Handy Terminal Customer Registration and Inquiries Customer Registration To allow us to provide our customers with comprehensive service and support, we request that all customers complete a Member Registration Form. Registered members will be offered the following privileges. • The latest upgrade information •...

  • Page 4: About This Manual

    • Every attempt has been made to ensure that the content of this manual is thorough and up to date, however, we kindly ask you to report any questionable descriptions, mistakes, or omissions, if any, to DENSO WAVE. • The copyright for this User’s Manual belongs to DENSO WAVE INCORPORATED.
  • Page 5 Barcode Handy Terminal Viewing this Manual − About the Bookmark The PDF Bookmark function can be used to jump to the Contents page. <Procedure> Click the “Bookmark” tab. Click to search for the desired item. Click the item to be read. Click the “Bookmarks”...
  • Page 6 BHT-805B − Searching by Word The PDF search function can be used to jump to the target page by entering words or characters related to the item being searched. (1) Click the Search icon. (Or select “Edit” – “Search”.) (2) Enter the word(s) or character(s) to be searched for.
  • Page 7 Barcode Handy Terminal Related Documentation • BHT-BASIC Programmer’s Manual (BHT-800 Series) This is an instruction manual used to create handy terminal programs with BHT-BASIC. • BHT-BASIC 4.0 Transfer Utility User’s Guide This is an instruction manual for software relating to data transfer between the computer and BHT-800 and comes bundled with the BHT-BASIC 4.0 Transfer Utility.

  • Page 8: Safety Precautions

    BHT-805B SAFETY PRECAUTIONS Be sure to observe all these safety precautions. Please READ through this manual carefully. It will enable you to use the BHT and CU correctly. Always keep this manual nearby for speedy reference. Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury and substantial property damage.
  • Page 9 Barcode Handy Terminal Handling the battery cartridge • Never disassemble or heat the battery cartridge, nor put it into fire or water; doing so could cause battery-rupture or leakage of battery fluid, resulting in a fire or bodily injury. • Do not carry or store the battery cartridge together with metallic ball-point pens, necklaces, coins, hairpins, etc.
  • Page 10 BHT-805B Handling the CU • If smoke, abnormal odors or noises come from the CU, immediately unplug the AC adapter from the wall socket or CU and contact your nearest dealer. Failure to do so could cause fire or electrical shock.
  • Page 11 Barcode Handy Terminal To System Designers: • When introducing BHTs in those systems that could affect human lives (e.g., medicines management system), develop applications carefully through redundancy and safety design which avoids the feasibility of affecting human lives even if a data error occurs. Handling the battery cartridge •...
  • Page 12 BHT-805B • If the BHT has been stored in a hot (50°C to 60°C, 122°F to 140°F) and humid place, allow it to sit at room temperature and humidity for at least one day before use. Using the BHT with its inside being hot...
  • Page 13 Barcode Handy Terminal Handling the CU • Never disassemble or modify the CU; doing so could result in an accident such as fire or malfunction. • Never put the CU in places where there are excessively high temperatures, such as inside closed-up automobiles, or in places exposed to direct sunlight.

  • Page 14: Table Of Contents

    BHT-805B Chapter 1 Outline This chapter describes the BHT system and provides an overall outline of the BHT. System Configuration ···················································································2 1.1.1 Hardware Configuration ···················································································2 1.1.2 Software Configuration·····················································································4 Component Names and Functions ·······························································6 1.2.1 BHT Front/Rear ································································································6 1.2.2 Keypad ·············································································································7 1.2.3...

  • Page 15: System Configuration

    BHT-805B 1.1 System Configuration This section describes the hardware required for the barcode data collection system used by the BHT and the BHT software. 1.1.1 Hardware Configuration In addition to the BHT, the following hardware and software are required for the barcode data collection system used by the BHT.
  • Page 16 Barcode Handy Terminal Host Computer Allows you to edit, manage and download user programs and data, as well as downloading system programs. Models : PC/AT Compatible Operating Systems and Optional Application Programs Windows XP Windows Vista Windows NT Windows 2000 Operating Systems (OS) Windows 98 3.51/4.0...

  • Page 17: Software Configuration

    BHT-805B 1.1.2 Software Configuration This section describes the software used for BHT Series application development and application in addition to the software used at the BHT unit. Please note that the above-mentioned software can be downloaded (Certain versions may be for trial use.) from the QBdirect service discussed at “Customer Registration”...
  • Page 18 Barcode Handy Terminal Software Used at the BHT Unit The BHT unit FLASH memory has a system area and user area, with the system program stored in the system area and font files and user programs stored in the user area. The BHT unit is shipped with the system program and font files stored in their respective areas.

  • Page 19: Component Names And Functions

    BHT-805B 1.2 Component Names and Functions 1.2.1 BHT Front/Rear (10) (11) Name Function and Description LCD (Liquid crystal display) Displays the characters and graphic patterns. Indicator LED Indicates the barcode read status. Illuminates in blue when the BHT has successfully read a barcode.

  • Page 20: Keypad

    Barcode Handy Terminal 1.2.2 Keypad The BHT key functions can be set at user programs. The diagram below shows an example of settings for each key function. (10) (11) Name Function and Description Used to move the cursor and select menus. Cursor keys Magic •...
  • Page 21 BHT-805B Name Function and Description Used to enter data. Numerical keys Press to finalize entered data or execute operations. Enter key Used to select functions. *Function key functions are assigned at user programs. Refer to Function keys the “BHT-BASIC Programmer’s Manual (For BHT-800 Series)”.

  • Page 22: Bht Screen

    Barcode Handy Terminal 1.2.3 BHT Screen If the system display is set to ON at the system settings or in the user program, icons display at the bottom of the screen (default) indicating the key shift status, alphabet entry status, and status of the link with the CU-811. SF ALP Link status with CU-811 Alphabet entry status...
  • Page 23 BHT-805B...
  • Page 24 BHT-805B Chapter 2 BHT Preparation This chapter describes inserting and charging the battery cartridge, turning the BHT power ON and OFF, and use of the hand strap. “BHT Preparation” Procedure ·····································································12 Inserting and Charging the Battery Cartridge ·············································12 2.2.1 Battery Power Level Indicator ········································································18 Wearing the Hand Strap ·············································································19...

  • Page 25: Bht Preparation" Procedure

    High-temperatures may activate the charger’s protective device, preventing from charging, and lead to protective device damage, overheating, blowout or combustion. • Terminate charging if not completed even after the specified time has elapsed. • Do not use battery cartridges other than that specified by DENSO WAVE.
  • Page 26 Do not use battery cartridges other than − Point − those specified by DENSO WAVE. Insert the battery cover tab (1), and then close the battery cover (2). The battery cover is now locked in position.
  • Page 27 BHT-805B BHT-805B − Note − Power for the CU-821 can be obtained from a USB connection port (host computer or hub), however, charging is not possible while the host computer is in suspend mode. Charging is resumed when suspend mode is exited. This can be avoided using a dedicated AC adapter to supply power.
  • Page 28 Barcode Handy Terminal Ch arging w h the battery charger (CH-201A and CH-704) Terminal Check the battery cartridge terminals and insert the artridge. Connect the power cable to the CH-201A and Red LED ON connect the plug to a commercial AC power source (230 V AC).
  • Page 29 Make sure that the battery is in right orientation. Do not use battery cartridges other than − Point − those specified by DENSO WAVE. Insert the battery cover tab (1), and then close the battery cover (2). The battery cover is now locked in osition.
  • Page 30 Barcode Handy Terminal Mishandling of the charger may result in charger overheating, smoke generation, blowout or combustion. Please read the following items prior to use. Never disassemble or modify the battery cartridg Never connect the battery cartridge (+) and (-) t erminals with a metal object such as a piece o wire.

  • Page 31: Battery Power Level Indicator

    BHT-805B 2.2.1 Batt ery Power Level Indicator Confir ming at the Power Level Icon The batte ry power level can be confirmed at the battery icon ( ) displayed in the bottom left of the LCD screen. The bat tery power is indicated in four levels.

  • Page 32: Wearing The Hand Strap

    Barcode Handy Terminal 2 .3 Wearing the Hand Strap Always put the hand strap around your wrist to prevent the BHT from being accidentally dropped during the operation. 2.3.1 Attaching the Hand Strap Attach the hand strap to the BHT as shown below. 2.3.2 Holding the BHT Wear the hand strap at your wrist and hold the BHT as shown below.

  • Page 33: Initial Setup

    BHT-805B 2.4 Initial Setup Turn ON the power after inserting the fully charged battery cartridge into the BHT. The date and time are not set at the time of purchase. You are required to set the date and time when turning ON the power for the first time.

  • Page 34: Turning Off The Power

    Barcode Handy Terminal 2.5 Turning OFF the Power You can turn off the BHT in one of the following three methods. → Press the Power key ( Normal power OFF → Hold down the Power key ( Turning the power OFF after data back-up ) for at least 3 seconds.

  • Page 35: If The Bht Is Shut Down Abnormally

    BHT-805B 2.5.4 If the BHT Is Shut Down Abnormally If the BHT is shut down abnormally* and is left without a battery cartridge or with a discharged battery cartridge loaded, then unsaved data may be lost. (*"Normally shut down" refers to "2.5 Turning OFF the Power.")
  • Page 36 Barcode Handy Terminal If Scandisk finds a broken file(s), the right screen will appear. (As long as a broken file exits, the screen displays every time the BHT System is started up.) (Refer to “About “$$BRKLST.SYS” on the following page.) candisk when the resume function is enabled Scandisk runs when the resume function is enabled, the screen given right ay appear.

  • Page 37: If Broken Files Are Found

    BHT-805B About “$$BRKLST.SYS” If Scandisk finds a broken file(s), it will automatically create the "$$BRKLST. SYS" file. o check the contents of the file, upload the file in System Mode to th e host computer. (Refer to “Chapter 4 System Operation" – “4.5.3 Uploading Files (UPLOAD ME NU).")
  • Page 38 BHT-805B Chapter 3 Basic Operation This chapter describes basic operations such as barcode reading, numerical data entry and item selection using the BHT, basic changes to settings, and BHT data transmission. Reading Barcodes ····················································································26 Numeric Data Entry···················································································28 Task Selection ··························································································28 Changing the Default Settings ··································································29...

  • Page 39: Reading Barcodes

    BHT-805B 3.1 Reading Barcodes Follow the procedure below to read barcodes. Turn the BHT power ON. Power key Press the trigger switch. Light The BHT emits a light for reading. The trigger switch is assigned to magic − Point −...
  • Page 40 Barcode Handy Terminal When unable to successfully read barcodes… Cause Countermeasure Change the BHT reading angle and try again. When the light is focused on the printed Specular surface of the barcode from directly above, reflection the BHT may not read the barcode due to specular reflection.

  • Page 41: Numeric Data Entry

    BHT-805B 3.2 Numeric Data Entry Enter numeric data such as product volume with the numeric keys and Enter ( ) key. If numeric data is entered incorrectly, use the backspace/clear key ( ) to delete the data and then reenter with the numeric keys.

  • Page 42: Changing The Default Settings

    Barcode Handy Terminal 3.4 Changing the Default Settings The volume, vibrator, LCD display brightness and power save settings can be changed at the MENU screen. Item Details Setting Used to set the volume of the speaker that notifies the user when barcode reading is complete.
  • Page 43 BHT-805B Use the [▲] and [▼] cursor keys to select the item to be changed. The selected item is highlighted. Use the [◄] and [►] cursor keys to select the setting. Press any of the following keys to exit the settings screen.

  • Page 44: Transmitting Data

    Barcode Handy Terminal 3.5 Transmitting Data Data gathered by the BHT can be transmitted to the host computer by IrDA communication. The data transmission method and BHT setting method will differ depending on the system used, and therefore the system administrator should be contacted for details of operation. Request Data gathered by the BHT should be promptly uploaded to the host computer.

  • Page 45: Irda Communication

    BHT-805B 3.5.1 IrDA Communication When performing data communication between BHT units Point the BHT IrDA communication ports toward each other and perform communication. Requests • Make sure that the light path between the BHT and any target stations is not obstructed.
  • Page 46 BHT-805B Chapter 4 System Operation This chapter describes how to initialize and update the system, start up a user program, and operate System Mode. Initializing the BHT System·········································································34 4.1.1 Selecting the Memory Area to be Initialized···················································35 4.1.2 Selecting the Message Version (English or Japanese) ·································36 4.1.3...

  • Page 47: Initializing The Bht System

    BHT-805B 4.1 Initializing the BHT System By initializing the system, program files and data files downloaded to the BHT user area are deleted, and system settings are returned to the default status when shipped from the factory. The system must be initialized when: •...

  • Page 48: Selecting The Memory Area To Be Initialized

    Barcode Handy Terminal 4.1.1 Selecting the Memory Area to be Initialized Press the Power key ( ) while holding down the SF, M1 and 0 keys together. The screen displays as shown on the right. Select the memory area to be initialized. (1) To exempt font files from deletion: Ensure that “1:USER AREA EXCEPT FONTS”...

  • Page 49: Selecting The Message Version (English Or Japanese)

    BHT-805B 4.1.2 Selecting the Message Version (English or Japanese) When the screen displays as shown on the right, select the message display language with the numerical keys. “1: Japanese” Changes the message language to Japanese. “2: English” Changes the message language to English.

  • Page 50: Performing System Initialization

    Barcode Handy Terminal 4.1.4 Performing System Initialization The screen displays as shown on the right during system initialization. Upon completion of system initialization, the BHT displays the screen on the right for a second and then turns OFF automatically. • Never turn OFF the BHT power during system initialization. Turning the power OFF too - Point - early will interrupt the process, requiring initialization to be performed again.

  • Page 51: Updating The System

    BHT-805B 4.2 Updating the System 4.2.1 Updating the BHT System The BHT system update procedure is as follows. BHT System Update File Download ↓ BHT System Update BHT System Update File Download Refer to sections “4.5.3 Downloading Files (DOWNLOAD Menu)” and ”4.5.9 Downloading/Uploading Files by FTP (FTP MENU)”, and download the BHT system update file to the BHT.

  • Page 52: System Update

    (F)” check box at the Transfer Utility Options screen and then download. The CU-811 system update file can be downloaded from the following Web site. - Note - http://www.denso-wave.com/en/ CU-811 System Update Refer to section “4.5.16 Updating the System (MODIFY MENU)” and update the CU-811 system.

  • Page 53: Executing User Programs

    BHT-805B 4.3 Executing User Programs User programs (application programs) can be executed using the following methods. Select the most appropriate method to meet the objective. 4.3.1 Executing from the SYSTEM MENU “EXECUTE PROGRAM” Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu.
  • Page 54 Barcode Handy Terminal Several directory management program examples are given below. The names of the files used in these examples are as follows. MAIN.PD4 Program to be executed by pressing the Power key ( ) only SUBMAIN.PD4 Program chained from MAIN.PD4 using the BHT-BASIC CHAIN statement USER.PD4 New program...

  • Page 55: Executing By Wake

    BHT-805B (Example 3) Recommended download method After system initialization, first download the program to be executed simply by pressing the Power key ( ). In this case, this program is always registered at the beginning of the system directory management unless the program has been deleted and another file downloaded.

  • Page 56: System Mode

    Barcode Handy Terminal 4.4 System Mode By starting up the BHT in System Mode and selecting each menu, the following operations can be performed individually. • Setup initialization • Executing user programs • File download/upload • System environment setting • BHT operation test •...

  • Page 57: System Mode Basic Operation

    BHT-805B 4.4.2 System Mode Basic Operation Menu Selection and Display Use the following procedure to select and display each menu. Operation example Press numerical corresponding to the menu to be selected. Select [4:SET SYSTEM] with Select [4: SET SYSTEM] with Alternatively, press the cursor the [4] or [▲]/[▼] keys.
  • Page 58 Barcode Handy Terminal Setting Value Selection Operation example Use the following procedure to select setting values. Press the numerical key corresponding to the item to be selected. Alternatively, press the cursor keys ([▲] [▼]) to select the item. The selected item will be highlighted. Select the setting value with the cursor keys ([◄] [►]).

  • Page 59: System Menu Configuration

    BHT-805B 4.4.3 SYSTEM MENU Configuration Menu Configuration for Items Displayed at the SYSTEM MENU Screen Select the item with the numerical keys or cursor keys ([▲] [▼]) and press the ENT key. SYSTEM MENU Setup Menu Refer to section “4.5.1 Setup”.
  • Page 60 Barcode Handy Terminal Uploading Refer to section “4.5.4 Uploading Files”. 3 and ENT keys System Environment Setting Refer to section “4.5.6 System Environment Setting”. 4 and ENT keys BS/C Testing Refer to section “4.5.7 BHT Operation Test”. 5 and ENT keys System Information Display Refer to section “4.5.8 System Information Display”.
  • Page 61 BHT-805B Menu Configuration for Items Not Displayed at the SYSTEM MENU Screen Press the corresponding numerical key while holding down the SF key. SYSTEM MENU Deleting Program/Data Files Refer to section “4.5.11 Deleting Program/Data Files”. 0 with SF held down...
  • Page 62 Barcode Handy Terminal Setting Remote Wake-up Refer to section “4.5.14 Setting Remote Wake-up”. 4 with SF held down BS/C Downloading/Uploading the System Message File Refer to section “4.5.15 Downloading/Uploading System the Message File”. 6 with SF held down Updating the System Refer to section “4.5.16 Updating the System”.

  • Page 63: System Menu

    BHT-805B 4.5 SYSTEM MENU 4.5.1 Executing Setup (SETUP Menu) The BHT setup can be effectively executed using the BHT Setting and clone functions. The following explains setup using two BHTs with the clone function. Use the procedure below for BHT setup.
  • Page 64 Barcode Handy Terminal Execute the master-side setup. Setup is performed with the BHT Setting and other SYSTEM MENU functions. Perform the settings for the master-side clone using “2: CLONE” and “3:OPTION” from the SETUP menu. Use the “OPTION” menu to perform settings such as the clone number, and authentication key. “OPTION”...
  • Page 65 BHT-805B Align the BHTs as shown below, and then press ENT on the transmitting device. Data 15 cm or less Slave Side Master Side (Test Use) The data transmission progress status is shown as per the screens below. • “∨”: Data transmission complete.
  • Page 66 Barcode Handy Terminal When communication is complete, the screen will return to the CLONE MENU (the previous screen.) In the event of a communication error, “Screen 2” below will appear. Screen 1: Error occurrence Screen 2: Error/correctly completed List of possible errors when cloning Processing Outline Displayed Message...

  • Page 67: Executing User Programs (Execute Program Menu)

    BHT-805B 4.5.2 Executing User Programs (EXECUTE PROGRAM Menu) Individually select and execute user programs downloaded to the BHT. Use the following procedure to execute user programs. Select “1: EXECUTE PROGRAM” at the SYSTEM MENU and then press the ENT key.

  • Page 68: Downloading Files (Download Menu)

    Barcode Handy Terminal 4.5.3 Downloading Files (DOWNLOAD Menu) Download files to the BHT user area from other devices such as the host computer. • If a file with the same name as one already used in the user area of the target memory in - Point - the BHT is downloaded, the newly downloaded file replaces the old one.
  • Page 69 BHT-805B Select either “1: FILE” or ”2: HT<-->HT COPY” and press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the file to be downloaded. The screen displays as shown on the right only when “1: FILE” is selected.
  • Page 70 Barcode Handy Terminal When downloading is complete, the speaker sounds once and the scr een displays as shown on the right. When the number of received records equals the total number of records, downloading is complete. (When using the Ymodem protocol, the received file size equals the total file size.) Press the BS/C key to return to the DOWNLOAD menu.

  • Page 71: Uploading Files (Upload Menu)

    BHT-805B 4.5.4 Uploading Files (UPLOAD Menu) Upload files stored in the BHT user area to another device. Use the following procedure to upload files. Select “3: UPLOAD” at the SYSTEM MENU and then press the ENT key. The screen displays as shown on the right.
  • Page 72 Barcode Handy Terminal Select “1: FILE”, ”2: ALL FILES” or ”3: HT<-->HT COPY” and press the ENT key. When “1: FILE” is selected: The screen displays as shown on the right. Select the file to be uploaded and press the ENT key. Next, proceed to step 3.
  • Page 73 BHT-805B By executing the BHT-BASIC 4.0 Transfer Utility or similar program, the screen displays as shown on the right and file uploading is commenced. (Refer to the “BHT-BASIC4.0 Transfer Utility User’s Guide.”) The screen displays as shown on the right during uploading.

  • Page 74: Copying Files Between 2 Bht Units

    Barcode Handy Terminal 4.5.5 Copying Files between 2 BHT Units Copy “all files (excluding font files)”, “setting data”, and the “date and time” stored in the BHT user area to another BHT. Use the following procedure to copy files between 2 BHT units. Set the same interface at both BHT units.
  • Page 75 BHT-805B The following setting data is copied when copying between BHT units. - Note - LCD contrast level Volume Switching between speaker and vibrator Program to be executed automatically when the BHT is turned ON Message version (English or Japanese)
  • Page 76 Barcode Handy Terminal FTP option, Line delimiters (CR/LF) FTP option, Handling of line delimiters FTP option, Handling of trailing spaces in data fields FTP option, Upload mode FTP option, Verbose mode IP address of host computer for ping-test Data size of echo request Echo request intervals Timeout period for echo request No.

  • Page 77: System Environment Settings (Set System Menu)

    BHT-805B 4.5.6 System Environment Settings (SET SYSTEM Menu) Use the following procedure to set the system environment. Select “4: SET SYSTEM” at the SYSTEM MENU and then press the ENT key. The SET SYSTEM menu screen on the right displays.
  • Page 78 Barcode Handy Terminal [1] Setting the auto-start execution program Use the following procedure to set the auto-start execution program. Select “1: EXECUTE PROGRAM” at the SET SYSTEM menu and then press the ENT key. The SET EXECUTE PROGRAM menu screen on the right displays. The highlighted program will be the program currently set as the auto-start execution program.
  • Page 79 BHT-805B [2] Setting the message version, system status indication and screen display compatible mode Use the following procedure to set the display language, system status indication and screen display compatible mode. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight ”1: MESSAGE”, ”2: STATUS”, “3: BOOT LOGO”, or “LOGO...
  • Page 80 “2: COMPATIBLE MODE”: Sets compatible mode for screen display with the BHT-100, BHT-300, or BHT-7500. This allows BHT-100 Series, BHT-300 Series, or BHT-7500 Series application programs to run at the BHT-805B without changing or correcting the font size. BHT-300 BHT-7500...
  • Page 81 BHT-805B BHT-805B BHT-300 BHT-7500 BHT-100 Normal Mode Mode Mode Mode Standard 22 x 16 char. 26 x 26 char. 20 x 26 char. 20 x 20 char. font (10 x 20 dots) (9 x 12 dots) (12 x 12 dots)
  • Page 82 Barcode Handy Terminal System Status Indication Turning ON the system status indication displays the following icons at the bottom of the screen. Indication Icon Description Key Shift status Displays when the keys on the keypad are in Shift mode. Alphabet Displays when the BHT is set to alphabet entry mode.
  • Page 83 BHT-805B [4] Setting the special barcode reading parameters Use the following procedure to set the barcode reading conditions. Select “4: BARCODE” at the SET SYSTEM menu and then press the ENT key. The SET BARCODE menu screen on the right displays.
  • Page 84 Barcode Handy Terminal “3: ITF”: Minimum number of digits to be read for ITF “4: STF”: Minimum number of digits to be read for STF “5: CODABAR”: Minimum number of digits to be read for Codabar Set minimum number of digits for the code to be read. Press [ ] to decrease the setting value and [ ] to increase the setting value.
  • Page 85 BHT-805B Use the following procedure if necessary to change the communication environment settings. Select “5: COMMUNICATION” at the SET SYSTEM menu and then press the ENT key. The SET COMMUNICATION menu screen on the right displays. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to be set and press the ENT key.
  • Page 86 Barcode Handy Terminal “2: PROTOCOL”: Communication protocol options setting screen Select “2: PROTOCOL” to display the screen shown on the right The highlighted settings will be the current settings. “1: SERIAL No.”: Selects whether or not to add serial numbers to data blocks. “2: H.PARITY”: Selects whether or not to add horizontal parity.
  • Page 87 BHT-805B “ “2: PROTOCOL TYPE”: Setting the communication protocol type Select “2: PROTOCOL TYPE” at the SET COMMUNICATION menu and then press the ENT key. The PROTOCOL TYPE menu screen on the right displays. The highlighted setting will be the current setting.
  • Page 88 Barcode Handy Terminal Select “1: Ymodem” at the PROTOCOL TYPE menu to display the screen on the right. The highlighted settings will be the current settings. “1: CR/LF”: Specifies line delimiters. “2: CR/LF CODE”: Specifies handling for line delimiters in records when data files are downloaded.
  • Page 89 BHT-805B Select “3: BHT-Ir Protocol” at the PROTOCOL TYPE menu to display the screen on the right. Enter the ID number of the BHT using the numerical keys and then press the ENT key. If there is no need to edit the current setting, press the ENT key only.
  • Page 90 Barcode Handy Terminal [6] Defining the functions of the Shift key and Magic keys Use the following procedure to change the key settings. Select “6: KEY” at the SET SYSTEM menu and then press the ENT key. The SET KEY menu screen on the right displays. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5] [6] [7]) to highlight the item to be set, and then press the ENT key.
  • Page 91 BHT-805B “2: M1 KEY” - ”5: M4 KEY”: Defining the Mx key functions Select “2: M1 KEY” to “5: M4 KEY” at the SET KEY menu and then press the ENT key. The SET Mx KEY menu screen on the right displays.
  • Page 92 Barcode Handy Terminal Defining the backspace/clear key (BS/C key) function The BS/C key deletes the last entered character (backspace), and when pressed and held, cancels entry and returns the LCD display to the previous screen (clear). This menu sets the key hold time for “clear”.
  • Page 93 BHT-805B [7] Setting the TCP/IP, FTP and DHCP Use the following procedure to change the TCP/IP, FTP and DHCP settings. Select “7: TCP/IP” at the SET SYSTEM menu and then press the ENT key. The SET TCP/IP menu screen on the right displays.
  • Page 94 Barcode Handy Terminal “2: IP ADDRESS”: Setting the IP address Select “2: IP ADDRESS” at the SET TCP/IP menu to display the screen on the right where the current settings are displayed. To change the setting: (1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the item to be set and press the ENT key.
  • Page 95 BHT-805B Setting the FTP Select “2: SET FTP” at the SET TCP/IP menu and then press the ENT key. The SET FTP menu screen on the right displays. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item to be set, and then press the ENT key.
  • Page 96 Barcode Handy Terminal “2: OPTION”: Setting the FTP options Select “2: OPTION” at the SET FTP menu to display the screen on the right where the current settings are displayed. “1: CR/LF”: Specifies line delimiters that should match ones used in the server OS. “2: CR/LF CODE”: Specifies the treatment of line delimiters in records when data files are downloaded.
  • Page 97 BHT-805B Setting the DHCP Select “3: DHCP” at the SET TCP/IP menu and then press the ENT key. The SET DHCP screen on the right displays. The highlighted setting will be the current setting. Press the BS/C key to return to the SET TCP/IP menu.
  • Page 98 Barcode Handy Terminal [8] Setting the resume function Use the following procedure to set the resume function. Select “1: RESUME” from the SET SYSTEM Menu 2/2 and then press the ENT key. The SET RESUME screen on the right displays. The highlighted setting will be the current setting.
  • Page 99 BHT-805B [10] Setting the RPC The BHT-800 series is compliant with the BHT Manager software (host-side tool). The RPC screen displays the settings used to communicate with the BHT Manager software. For details, refer to the “BHT Manager User’s Manual”. The following explains only the operation of this menu and an outline of the settings.
  • Page 100 Barcode Handy Terminal [11] Setting the operation log The BHT-800 series is compliant with the BHT Manager software (host-side tool). The OPERATION LOG sets wheter of not create log data that the BHT Manager collects. For details, refer to the “BHT Manager User’s Manual”. The following explains only the operation of this menu and an outline of the settings.

  • Page 101: Bht Operation Test (Test Menu)

    BHT-805B 4.5.7 BHT Operation Test (TEST Menu) Use the following procedure to perform a BHT operation test. Select “5: TEST” at the SYSTEM MENU and then press the ENT key. The TEST menu screen on the right displays. “1: BARCODE”: Selects the barcode reading test.
  • Page 102 Barcode Handy Terminal [1] Barcode reading test Use the following procedure to perform a barcode reading test. Select “1: BARCODE” at the TEST menu and then press the ENT key. The screen displays as shown on the right. Read a barcode with the BHT Upon completion of barcode reading, the speaker beeps once, and the indicator LED turns blue.
  • Page 103 BHT-805B Setting the Barcode Reading Test Options When performing the barcode reading test, press the F1 key to display the screen on the right, allowing barcode reading test options to be set. Details of option settings are as follows. [1] Add on: ON/OFF The highlighted settings will be the current settings.
  • Page 104 Barcode Handy Terminal [2] Memory test Use the following procedure to perform a memory test. Select “2: MEMORY” at the TEST menu and then press the ENT key. The screen displays as shown on the right, and the BHT reads and writes data to and from all areas of the RAM and performs an address check.
  • Page 105 BHT-805B [3] Scale test Use the following procedure to perform a scale test. Select “3: BEEPER” at the TEST menu and then press the ENT key. The screen displays as shown on the right, and the beeper sounds at the three octaves listed below.
  • Page 106 Barcode Handy Terminal [5] LCD and indicator LED tests Use the following procedure to perform an LCD and indicator LED test. Select “5: LCD” at the TEST menu and then press the ENT key. The TEST BEEPER screen on the right displays. The indicator LED is OFF at this time.
  • Page 107 BHT-805B Press the ENT key. The entire screen turns a lighter shade of gray. Press the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 108 Barcode Handy Terminal Press the ENT key. The entire screen turns red, and at the same time, the indicator LED turns red. Press the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 109 BHT-805B Press the ENT key. A 1-dot thick frame displays around the screen. Press the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 110 Barcode Handy Terminal [6] File test The file test allows detailed information on program files, data files, audio files (*.WAV), and image files(*.JPG) to be checked. In addition, pressing the M1 key sorts the files. Select “6: FILE” at the TEST menu and then press the ENT key.
  • Page 111 BHT-805B ◆ Media files (*.WAV) Use the cursor keys ([▲] [▼]) to select a *.WAV file, and then press the ENT key. The screen to the right will appear, displaying the file size and creation date. Press the F1 key to play the file.
  • Page 112 Barcode Handy Terminal ◆ Media files (*.JPG) Use the cursor keys ([▲] [▼]) to select a *.JPG file, and then press the ENT key. The screen to the right will appear, displaying the file size, creation date, and a preview image. Press the F1 key to display the image in full screen.
  • Page 113 BHT-805B ◆ Font files (*.FN3/FN4) Use the cursor keys ([▲] [▼]) to select a *.FNT file, and then press the ENT key. Press the BS/C key to return to the previous screen. ◆ BASIC User Program (*.PD3/PD4) Use the cursor keys ([▲] [▼]) to select a *.PD3/PD4 file, and then press the ENT key.
  • Page 114 Barcode Handy Terminal ◆ Other files (*.DAT, *.TXT, etc.) Use the cursor keys ([▲] [▼]) to select a file, and then press the ENT key. If field information is available, press the F1 key to display the next screen. To return to the previous screen, press the F1 key again, or press the BS/C key.
  • Page 115 BHT-805B [7] Communication test Use the following procedure to perform a communication test. Select “7: COMMUNICATION” at the TEST menu and then press the ENT key. The TEST COMMUNICATION screen shown on the right displays. “1: OPTICAL”: Performs an IrDA communication test.
  • Page 116 Barcode Handy Terminal At the slave BHT to be tested, select “1: SLAVE”, and at the master BHT, select “2: MASTER”. Then press the ENT key. The screen displays as shown on the right during the test, and an IrDA communication test is performed.
  • Page 117 BHT-805B [8] Key-entry, speaker and vibrator test Use the following procedure to perform a key entry, speaker and vibrator test. Select “8: KEY & VIBRATION” at the TEST menu and then press the ENT key. The screen displays as shown on the right, and the BHT waits for key entry.
  • Page 118 Barcode Handy Terminal [9] PING test Use the following procedure to perform a PING test. Select “9: PING” at the TEST menu and then press the ENT key. The TEST PING screen displays as shown on the right. “1: RUN PING”: Runs the PING test.
  • Page 119 BHT-805B Upon completion of the PING test, the screen displays as shown on the right. The PING result may include the following: Displays the number of echo replies. [XXXXX]: Echo reply time in milliseconds Displays the number of errors found during the PING test.
  • Page 120 Barcode Handy Terminal “2: SET PING” (PING Options Setting Screen) Select “2: SET PING” at the TEST PING menu and then press the ENT key. The current settings are displayed. [1: DESTINATION IP]: Specifies the IP address of the host computer to be pinged. [2:DATA SIZE]: Specifies the data size of the echo request.
  • Page 121 BHT-805B PING Echo Request Transmission Timing (SEND TYPE) Two types of echo request send timings are available: TYPE 1 and TYPE 2. ν TYPE1 After sending an echo request, PING waits for the period specified at INTERVAL and then sends an echo request again.
  • Page 122 Barcode Handy Terminal “3: SET DEVICE” (PING Device Setting Screen) Select “3: SET DEVICE” at the TEST PING menu and then press the ENT key. The TCP/IP communication device, link layer, and transmission speed display. Press the BS/C key to return to the TEST PING menu.

  • Page 123: System Information (System Information Menu)

    BHT-805B 4.5.8 System Information (SYSTEM INFORMATION Menu) [1] Displaying the BHT system information Use the following procedure to display the BHT system information. Select “6: VERSION” at the SYSTEM MENU and then press the ENT key. The SYSTEM INFORMATION screen on the right displays.
  • Page 124 Barcode Handy Terminal [1] Functions for which licenses have been registered (∗) Use the cursor keys ([▲] [▼]) to highlight the name of a function that has been registered, and then press the ENT key to display a screen similar to that shown on the right containing the license registration details.
  • Page 125 BHT-805B [2] CU-811 System Information Display Use the following procedure to display CU-811 system information. Place the BHT on the CU-811. Select “6: VERSION” at the SYSTEM MENU and then press the ENT key. The SYSTEM INFORMATION screen on the right displays.

  • Page 126: Downloading/Uploading Files By Ftp (Ftp Menu)

    Barcode Handy Terminal 4.5.9 Downloading/Uploading Files by FTP (FTP MENU) Use the following procedure to download and upload files by FTP. Select “7: FTP” at the SYSTEM MENU and then press the ENT key. The FTP MENU screen on the right displays. “1: DOWNLOAD”: Downloads a file by FTP.
  • Page 127 BHT-805B Use the cursor keys ([▲] [▼]) to highlight the item to be set, and then press the ENT key. The mode changes to entry mode and the cursor displays. Enter a setting value with the numerical keys and dot key.
  • Page 128 Barcode Handy Terminal [2] Uploading by FTP Select “2: UPLOAD” at the FTP MENU and then press the ENT key. The screen displays as shown on the right if uploadable files exist. [1: DIR/FILE]: Entry box for the directory and/or file name [2: FIELDS]: File name currently selected (Nothing is displayed at the FTP client initial status.)
  • Page 129 BHT-805B Enter the directory and file name, or select a file, and then press the ENT key. Press the BS/C key to return to the FTP MENU screen. DIR/FILE entry box: The FTP client will interpret a character string entered into this box as a directory name at first, and will therefore send a Change Directory request to the FTP server.
  • Page 130 Barcode Handy Terminal FTP Download/Upload Messages When the BHT is uploading or downloading files by FTP, the following messages will appear at the bottom of the screen: Aborted. Uploading or downloading has been interrupted. Connection error The communication pathway is disconnected. Device error Failed to open a device.
  • Page 131 BHT-805B Response Messages from the FTP server The messages that FTP servers send during and after FTP operations vary, but servers all use the same reply codes as listed below. 110 : Restart marker reply 120 : Service ready in approx. nnn minutes.

  • Page 132: Deleting Program/Data Files (Delete File Menu)

    Barcode Handy Terminal 4.5.10 Deleting Program/Data Files (DELETE FILE Menu) Delete program files or data files stored in the FLASH ROM. Use the following procedure to delete files. Press the 0 key while holding down the SF key at the SYSTEM MENU.

  • Page 133: Deleting Font Files (Delete File Menu)

    BHT-805B 4.5.11 Deleting Font Files (DELETE FILE Menu) Delete font files stored in the FLASH ROM. If there is insufficient user area, by deleting font files, a user area equal to the size of the deleted font files can be secured.
  • Page 134 Barcode Handy Terminal To delete font files: Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes] and then press the ENT key. The selected file is deleted and the screen displays as shown on the right. Press the BS/C key to return to the DELETE FILE menu.

  • Page 135: (System Parameter Menu)

    BHT-805B 4.5.12 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu) The system parameter file (file name: ”_BHT.SYS”) is a file containing settings such as values, LCD contrast and speaker volume set at section “4.5.6 Setting Environment Settings”. The same settings can be set at another BHT by copying the system parameter file to that BHT.
  • Page 136 Barcode Handy Terminal [1] Downloading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the system parameter file to be downloaded.
  • Page 137 BHT-805B [2] Uploading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the system parameter file to be uploaded.

  • Page 138: Setting The Remote Wake-Up (Set Remote Wakeup Menu)

    Barcode Handy Terminal 4.5.13 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu) Use the following procedure to perform remote wake-up settings. Press the 4 key while holding down the SF key at the SYSTEM MENU. The SET REMOTE WAKEUP menu displays as shown on the right. [1: REMOTE WAKEUP]: Enables or disables remote wake-up.

  • Page 139: (System Message Menu)

    BHT-805B 4.5.14 Downloading/Uploading the System Message File (SYSTEM MESSAGE Menu) The system message file is a file (file name: “_B80MSG.FN3”) used by the system to display messages such as “Shutdown in progress. Do not remove the battery.” or “Charge the battery!”.
  • Page 140 Barcode Handy Terminal [1] Downloading the system message file Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the system message file to be downloaded.
  • Page 141 BHT-805B [2] Uploading the system message file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the system message file to be uploaded.

  • Page 142: Updating The System (Modify Menu)

    Barcode Handy Terminal 4.5.15 Updating the System (MODIFY MENU) Use the following procedure to update the system. Press the dot key while holding down the SF key at the SYSTEM MENU. The MODIFY MENU screen on the right displays. [1: SYSTEM MODIFY]: Updates the BHT system. [2: CU-F/W MODIFY]: Updates the CU-811 system.
  • Page 143 BHT-805B When the Displayed File Name Differs from the BHT System Update File If the name of the file displayed at [2: FILENAME] differs from the name of the BHT system update file to be used for updating the system, enter the correct file name.
  • Page 144 Barcode Handy Terminal [2] Updating the CU-811 system Update the CU-811 system after downloading the CU-811 system update file. (Refer to section ”4.2.2 CU-811 System Update” for details.) Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: CU-F/W MODIFY] and then press the ENT key.
  • Page 145 BHT-805B If the System Update File Does not Exist when Updating the CU-811 System The screen displays as shown on the right if the CU-811 system update file does not exist when updating the CU-811 system. Download the CU-811 system update file and update the CU-811 system again.
  • Page 146 BHT-805B Chapter 5 Communication This chapter describes technical information relating to the IrDA communication and wireless communication functions with which the BHT is equipped. IrDA Communication·················································································134 5.1.1 IrDA Communication Port Transmission Speed···········································135 5.1.2 BHT Hardware (Physical Layer) and Communication Protocols·················135 Basic Communication Specifications and Parameters······························136...

  • Page 147: Irda Communication

    BHT-805B 5.1 IrDA Communication The BHT has a built-in IrDA communication device that enables wireless transfer of programs and data both between the BHT and the host computer, and between BHTs without the need for a cable. IrDA communication offers the following benefits over other forms of communication.

  • Page 148: Irda Communication Port Transmission Speed

    Barcode Handy Terminal 5.1.1 IrDA Communication Port Transmission Speed Communicating Device Transmission Speed BHT-800 Series Max. 460.8 kbps CU-801 Max. 115.2 kbps CU-821 Max. 460.8 kbps CU-811 Max. 4 Mbps 5.1.2 BHT Hardware (Physical Layer) and Communication Protocols BHT Hardware (Physical Layer) (Exclude Transmission Speed : 460.8 kbps) The BHT complies with IrDA Ver1.3 Low Power physical layer compliant by IrDA (Infrared Data Association).

  • Page 149: Basic Communication Specifications And Parameters

    LSB (Least significant bit) first Vertical parity None Note1: 460800 bps is only possible when communicating from one BHT-805B unit to another, or to the CU-821. Note2: 4 Mbps is only possible for communication with the dedicated CU-811 unit. Synchronization For accurate data transaction, it is necessary to synchronize transmission between the sender and receiver.
  • Page 150 Barcode Handy Terminal Transmission Code and Bit Order • All characters should be coded to 7 or 8-bit code for data transmission. • The standard code at the BHT is ASCII 7-bit or 8-bit code. • The transmission bit order is LSB (Least significant bit) first. The example below is for the transmission of an ASCII 8-bit code A (41h or 01000001b, b: binary) with even vertical parity and a single bit each for the start and stop bits.

  • Page 151: Communications Parameters

    Vertical parity None Stop bit length 1 bit Note1: 460800 bps is only possible when communicating from one BHT-805B unit to another, or with the CU-821. Note2: 4 Mbps is only possible for communication with the dedicated CU-811 unit. System Mode Refer to “Chapter 4 System Operation”...
  • Page 152 BHT-805B Chapter 6 Maintenance This chapter describes battery cartridge and daily procedures for taking care of the BHT and CU/CH. Replacing the Battery Cartridge································································140 6.1.1 Battery Cartridge Service Life ······································································140 6.1.2 Battery Cartridge Replacement Method ······················································140 Using the BHT after Long Periods ····························································142 Daily Maintenance ····················································································143...

  • Page 153: Replacing The Battery Cartridge

    Insert a new battery cartridge in direction indicated by the arrow. (Refer to “Chapter 2 BHT Preparation” – “2.2 Inserting and Charging the Battery Cartridge”.) − Point − Do not use battery cartridges other than those specified by DENSO WAVE.
  • Page 154 Barcode Handy Terminal Insert the battery cover tab (1), and then close the battery cover (2). The battery cover is locked in position. Press the battery cover into place until a click is heard. Battery Cartridge Recycling Request  This product uses a lithium-ion battery that contains scarce, recyclable resources. We kindly ask for your cooperation in recycling to ensure reuse of these resources.

  • Page 155: Using The Bht After Long Periods

    BHT-805B 6.2 Using the BHT after Long Non-Use Data stored in the BHT may be lost or damaged and the calendar clock may stop if the BHT is left unused for a long period of time. Take appropriate measures in accordance with the procedure below.

  • Page 156: Daily Maintenance

    Barcode Handy Terminal 6.3 Daily Maintenance 6.3.1 Proper Care of the BHT Wipe any dirt from the BHT housing, charge terminals, and BHT or battery cartridge terminals with a dry, soft cloth. Ensure to turn OFF the BHT before cleaning. −...
  • Page 157 BHT-805B...
  • Page 158 BHT-805B Chapter 7 Error Messages This chapter describes causes and countermeasures for error messages that display during BHT use. System Errors···························································································146 System Mode Errors ·················································································150...

  • Page 159: System Errors

    BHT-805B 7.1 System Errors The error messages that display on the screen and the causes and countermeasures to be taken if an error occurs when the power is turned ON or while running a program are shown below. Message BHT Response...
  • Page 160 Barcode Handy Terminal Message BHT Response Cause Solution The date and time settings calendar clock Set the current date and screen displays, awaiting integrated in the BHT has time. (Refer to “Chapter 2 entry. stopped because: BHT Preparation” – “2.4 - the battery cartridge had Initial Setup”) been removed for a...
  • Page 161 BHT-805B Message BHT Response Cause Solution If this error occurs, the During execution of Unload reload warning tone beeps five System Program, the battery cartridge, then turn times. System Program has the BHT on. received an invalid If this error occurs command code.
  • Page 162 Barcode Handy Terminal Message BHT Response Cause Solution After displaying this error Your settings made in Contact your system message, the BHT may start System Mode contain an administrator. a user program other than error. (If this error occurs, the preset auto-start System Mode settings revert...
  • Page 163 BHT-805B 7.2 System Mode Errors When error messages display while running System Mode, refer to the following table and take appropriate measures. Message BHT Response Solution You attempted to execute a user Press the BS/C key to return to the...
  • Page 164 Barcode Handy Terminal Message BHT Response Solution The current download will exceed the Press the 2 key to return to the SYSTEM maximum allowable number of files (420 MENU, then delete unnecessary files in the files) in the memory. memory (or decrease the number of files to downloaded attempted download more than one file in the...
  • Page 165 BHT-805B Message BHT Response Solution The memory is insufficient for setting up Press the BS/C key to return to the the BHT system parameter file or system SYSTEM MENU and delete unnecessary message file to be uploaded. files. The memory already contains 420 files,...
  • Page 166 BHT-805B Chapter 8 Specifications This chapter describes the BHT-805B specifications. BHT-805B Specifications··········································································154 8.1.1 Hardware Specifications···············································································154 8.1.2 Barcode Specifications·················································································155 8.1.3 Reading Performance ··················································································156 8.1.4 Interface Specifications ················································································158...
  • Page 167 BHT-805B 8.1 BHT-805B Specifications 8.1.1 Hardware Specifications Power supply (main power): Rechargeable lithium-ion battery cartridge (3.7 V DC) Dimensions (W) x (L) x (H): 70 x 182 x 55 mm Weight: Approx. 220 g (including battery cartridge BT-20LB) Ambient operating temperature: -5 to 50° C...

  • Page 168: Barcode Specifications

    Barcode 8.1.2 Barcode Specifications Supported Barcode Types Barcode Type Bar Dimensions Read Magnification Universal product codes EAN-13 (JAN-13) EAN-8 (JAN-8) UPC-A UPC-E EAN-13 (JAN-13) with add-on Min. 0.26 mm Min. 0.8 EAN-8 (JAN-8) with add-on UPC-A with add-on UPC-E with add-on 2-digit add-on 5-digit add-on Min.

  • Page 169: Reading Performance

    H ≦ 620 mm *5 The label position is on the BHT-805B central axis. The BHT-805B may fail to read codes due to specular reflection depending upon the position of the light source, reading angle of the reading window, and other conditions.
  • Page 170 Barcode Under the following conditions: Under the following conditions: - Ambient illuminance: 500 Lx. (Xenon arc lamp) - Ambient illuminance: 500 Lx. (Xenon arc lamp) - Code 39, 4 digits - EAN-13 Narrow bar: Wide bar = 1 : 2.5 - Reflection intensity of white bars: 85% min.
  • Page 171 Transmission speed: 9,600 / 19,200 / 38,400 / 57,600 / 115,200 / 460,800 /4M bps Note: 460,800 bps is only possible when communicating from one BHT-805B unit to another or with the CU-821. 4 Mbps is only possible for communication with the dedicated CU-811 unit.
  • Page 172 BHT-805B Chapter 9 Appendices This chapter describes the CU-800 Series (option) specifications, and describes causes and countermeasures when unable to transfer files. CU-800 Specifications ··············································································160 9.1.1 Hardware Specifications···············································································160 9.1.2 Charging Requirements (CU-801/811/821) ·················································160 9.1.3 Interface Specifications ················································································161 When File Transfer is Not Possible Using the Transfer Utility ··················163...
  • Page 173 BHT-805B 9.1 CU-800 Specifications 9.1.1 Hardware Specifications CU-801 CU-811 CU-821 Power supply: 100/230 V AC 100/230 V AC Powered from the USB (Using dedicated AC (Using dedicated AC interface * adapter) adapter) Max. power consumption: 6.5 VA 7 VA 5V 500 mA Dimensions (W) x (L) x (H): 110 x 134 x 81.7 mm...
  • Page 174 Nam Function CU-801 ↔ E rnal Device ← Receipt data → Transmission data → Data terminal ready Signal ground — Data set ready — Transmission reques — Transmission ready — The CU-801 internal wiring is shown below. CU-801 BHT-805B...
  • Page 175 BHT-805B CU-811 The CU-811 has an IEEE802.3-compliant Ethernet interface port (100Base-TX). Ethernet Interface Port (RJ45 jack) on the CU-811 Pin No. Signal Functions Send data Send data Receive data N.C. No connection N.C. No connection Receive data N.C. No connection N.C.
  • Page 176 Barcode Handy Terminal 9.2 When File Transfer is Not Possible Using the Transfer Utility This section describes the causes and remedies when file transfer is not possible using the Transfer Utility. Error No. Cause Details Remedy Illegal field information specification option Set a correct value for the field information option.
  • Page 177 BHT-805B Error No. Cause Details Remedy The Transfer Utility “Communication port” Specify the communication port to which the BHT is option specification is illegal. connected for the “Communication port” option. The transmission speed at the BHT and PC Ensure that the transmission speed at the BHT and does not match.
  • Page 178 Barcode Handy Terminal Error No. Cause Details Remedy An attempt was made to download a Use BHT-BASIC 4.0 format program files (*.PD4). BHT-BASIC 3.6 format program file (*.PD3). Note 1: “Customer Registration” is required to use QBdirect (free of charge). When using for the first time, complete “Customer Registration”...
  • Page 179 Barcode Handy Terminal BHT-805B User’s Manual First Edition August 2009 DENSO WAVE INCORPORATED...
