1. Machine Descriptions

This chapter explains the positions and functions of each part
of this machine in this manual.

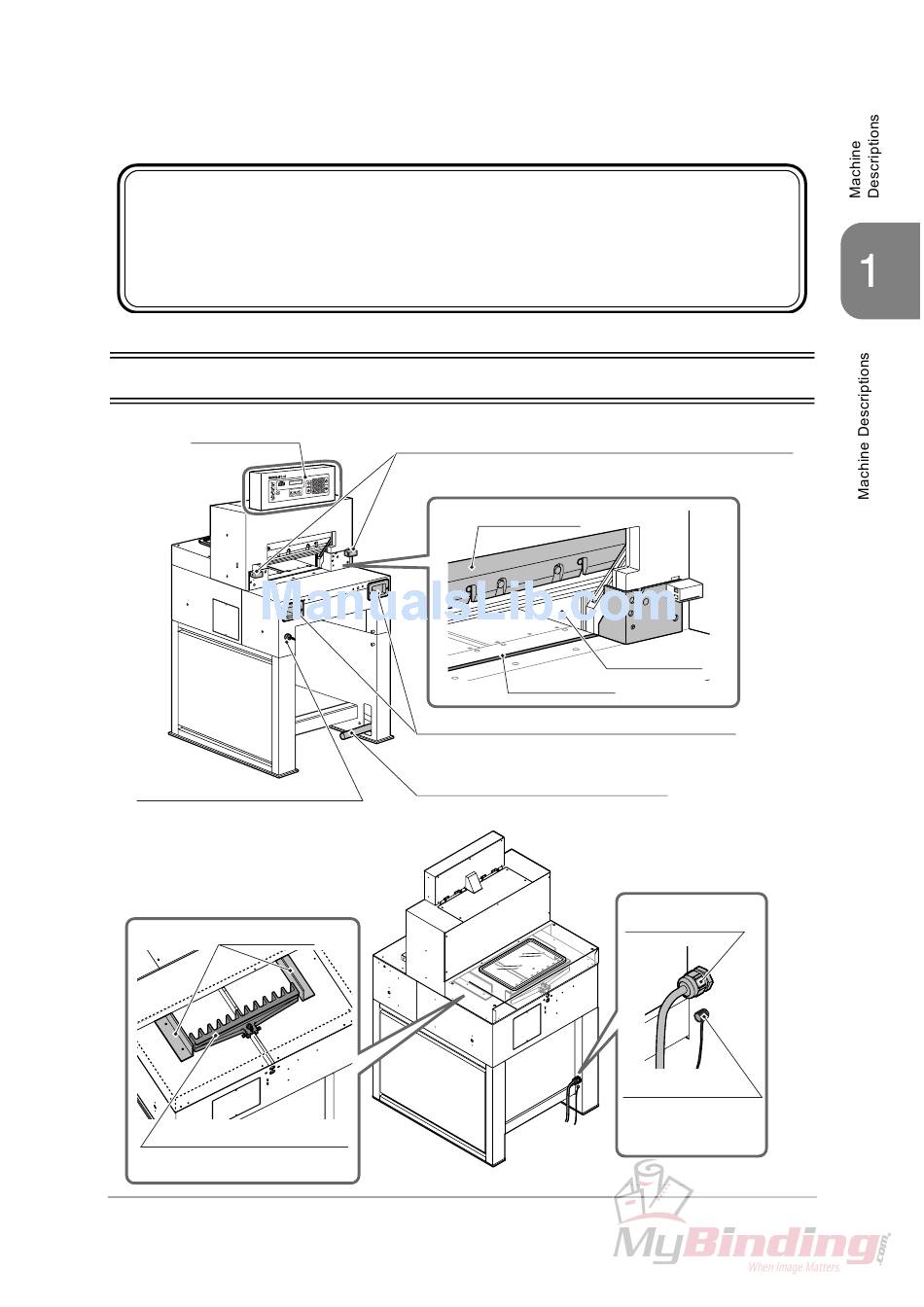

1-1 Machine Descriptions
Control Panel
See next page.
Power Switch
When turning on the power switch, turn
the key clockwise.
When this machine is not in use,
remove the key. An authorized person
should keep the key so that other peo-
ple can not run the machine.
Side Guides
Backgauge
This backgauge is the back stop
of sheets to be cut.
Beam Light Sensors
Cutting motion does not start even if pressing both cutting buttons
when the invisible light between the beam light sensors is blocked.
Knife Cover
Cutting Stick
Cutting Buttons (Upper Inside)
These buttons must be pressed simultaneously to cut
sheets.
Foot Pedal
Step on this pedal to lower the clamp.
Side Guide
Power Cable
Ground Terminal
Make sure to connect
the ground wire here.
