Make sure to connect the ground wire.
Space Required for Installation
As the electrical parts are installed on the lower left of the machine, repair work may be done from the
right side. Allow about 600 to 700 mm (23.7 to 27.6") on the left side of the machine if it is possible.
In addition, when you adjust the knife angle, you need to insert the tool into the machine from the left
side. Allow about 200 mm (7.9") on the left side.
Allow about 100 to 200 mm (4 to 7.9") on the right side and the rear.
Antivibration Cushion
If you use the antivibration cushions, place the cushions under the four corners of the machine. In addi-
tion, place the supplied wedges under the machine to keep the machine in a horizontal position.
IV

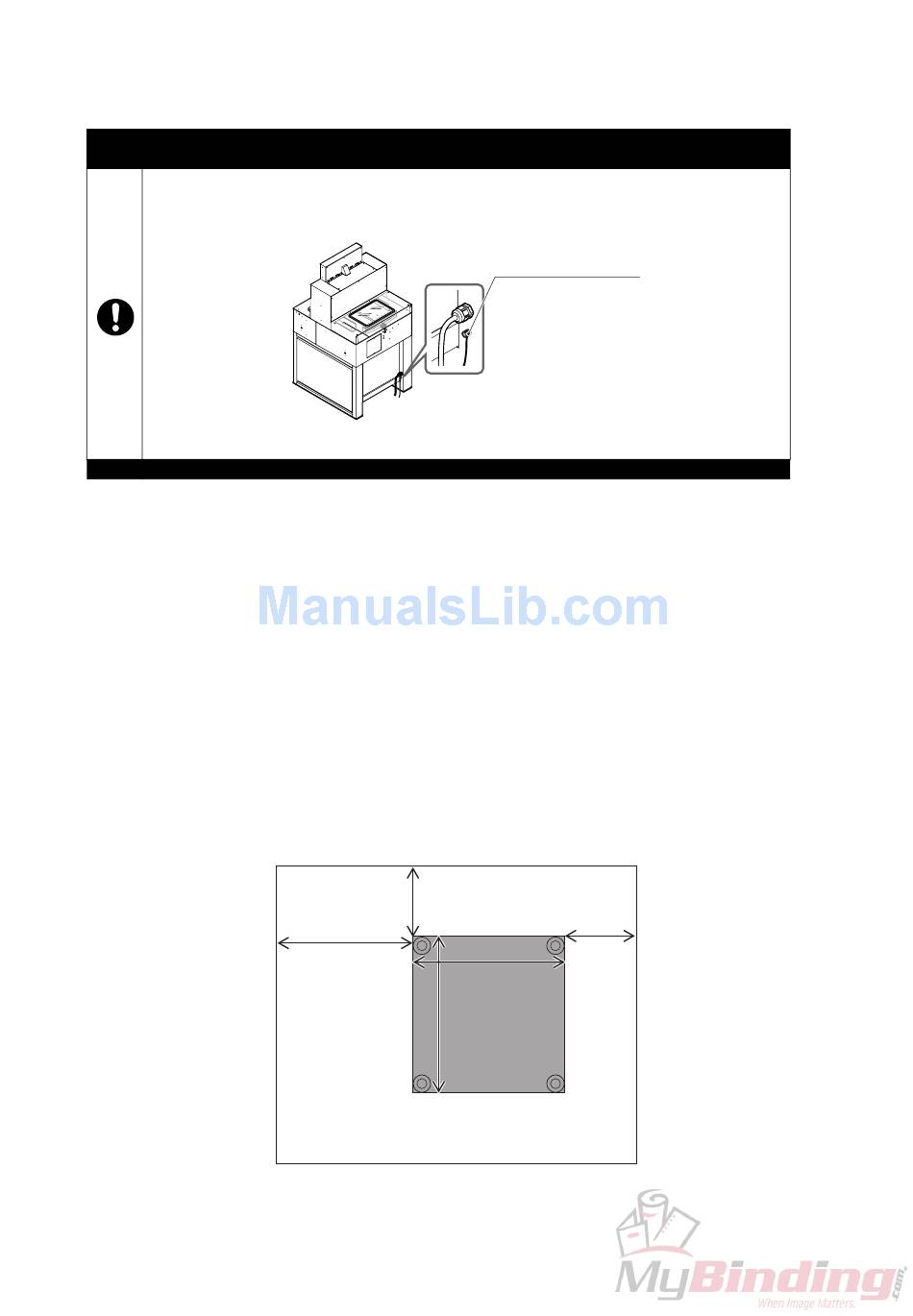

CAUTION for Installation
100 - 200
(4" - 7.9")
600 - 700
(23.7" - 27.6")
770 (30.4")
880 (34.7")
Ground Terminal
Make sure to connect
the accessory ground
wire.
If the ground wire is
not connected, the let-
ters on the guide win-
dow may not appear
correctly.
100 - 200
(4" - 7.9")
Front
mm (inch)
