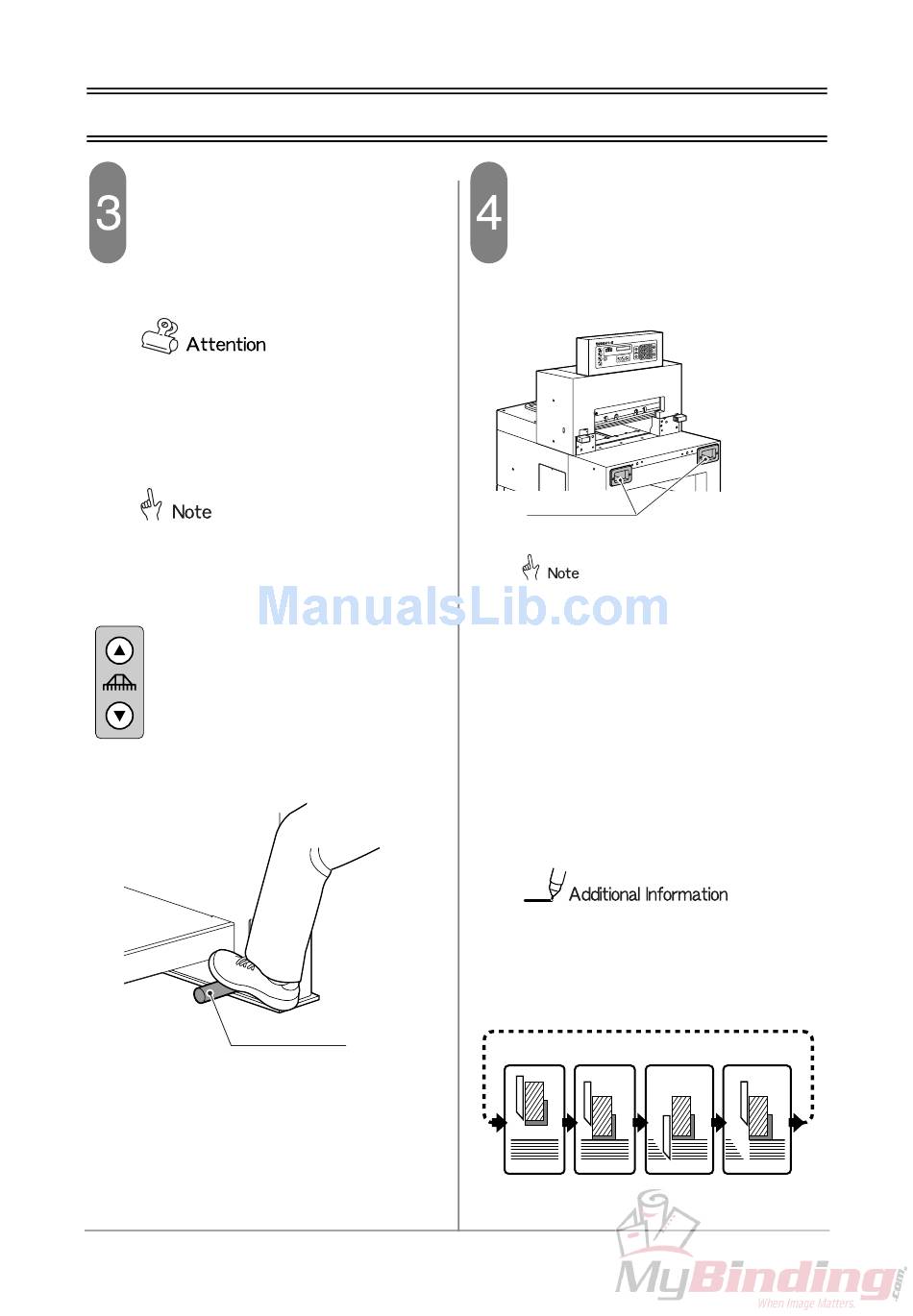

3-1 Cutting Operation on the Cutting Line
Align the desired cutting position
with the cutting line.
- Align the desired cutting position with the cut-
ting line by pressing the backgauge forward
button.
Align the cutting position by moving the
backgauge forward.
If the backgauge is moved backward, the
sheets should be aligned with the back-
gauge every time.
The cutting position can be checked also
by stepping on the foot pedal and lower-
ing the clamp.
Backgauge Forward and Backward
Buttons
- Pressing once: Moves by 0.1 mm (0.005")
- Pressing continuously within three seconds:
Moves at low speed
- Pressing continuously for three seconds
or more: Moves at high speed
Foot Pedal
12
Press both cutting buttons at the
same time and keep pressing them.
- The cutting operation starts.
- Release your hands from the cutting buttons
when the knife returns to the upper limit.
Cutting Buttons
- Press both cutting buttons at the
same time. If they are not pressed
within 0.5 seconds, the machine does
not operate.
- If your hand is released from one of
the cutting buttons while the knife is
lowering toward the lower limit, the
knife stops at that position.
- Release your hands from the cutting
buttons when the cutting operation is
completed. The secondary cutting
operation dose not start even if press-
ing them continuously after the cut-
ting process.
The clamp and the knife move as follows
during the cutting operation.
- The clamp presses the sheets and the knife
lowers.
- The knife lifts and the clamp lifts.
1 2 3 4
