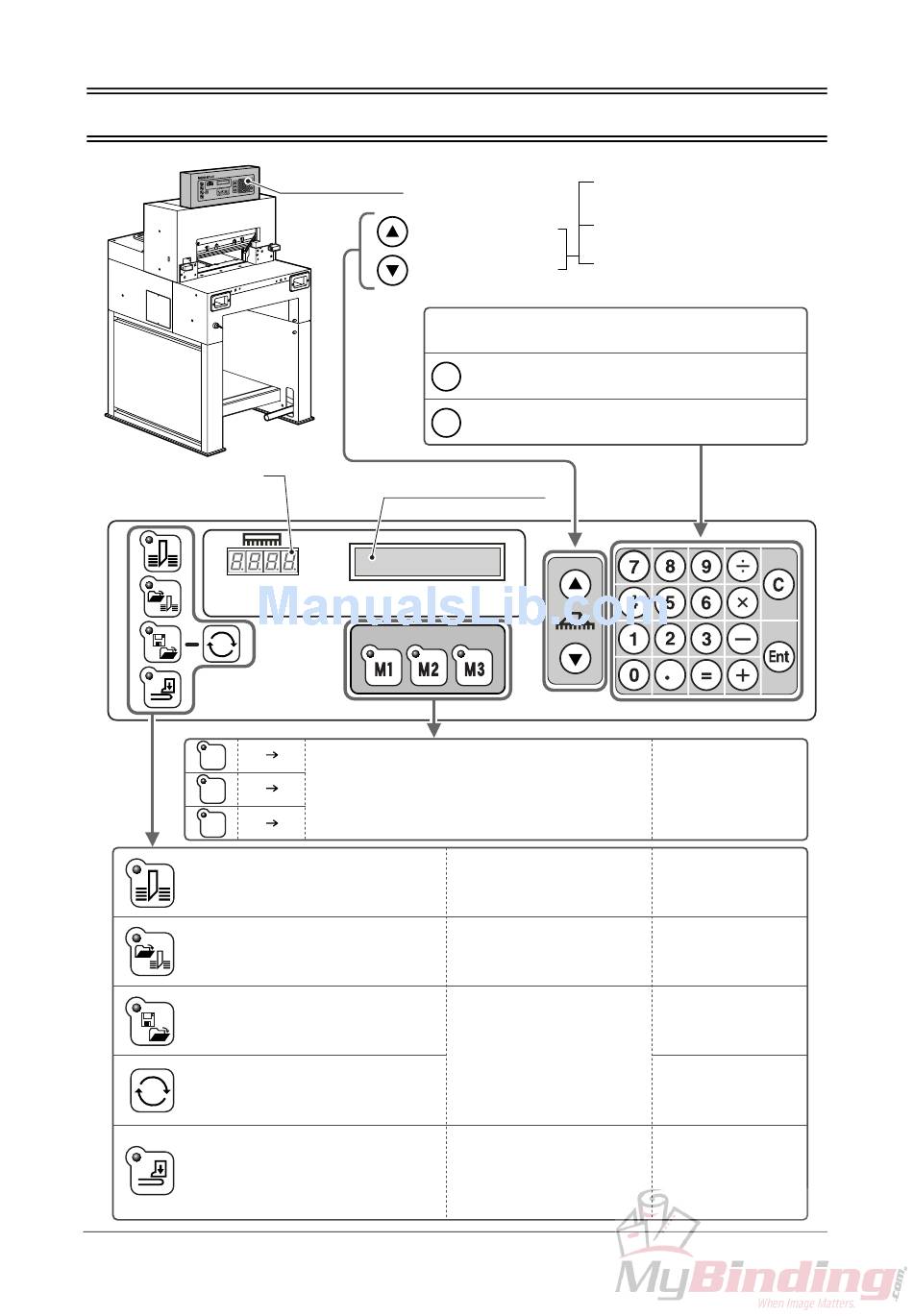

1-2 Control Panel Descriptions

Current Position of
the Backgauge
M1
M2
M3
Cut sheets according to the current
position of the backgauge without
=
using program and function key.
Cut sheets according to the
=
programmed value.
Create a new cutting program or
=
change the saved cutting program.
Create a new cutting program to
=
repeat the same cutting length.
Only the clamp lifts and lowers.
=
The knife does not move.
2
Control Panel
Backgauge Backward
Backgauge Forward
Numeric Keypad:
The input value appears in the guide window.
C
Ent
Guide Window
Three programs can be stored. Call your local
dealer if you want to change the program.
When pressing once, moves
by 0.1 mm (0.005")
When continuing to press,
moves at a low speed.
When continuing to press more
than three seconds, moves at a
high speed.
Clear = The input value is cleared.
Enter = The input value is entered.
For short-run job and same
job pattern.
For cutting many sheets which
require a complicated process.
If a program for the cutting job
is created and memorized, it is
useful when performing the
same process repeatedly.
Spine of the saddle-stitched
booklets can be pressed to
reduce the bulk.
See page 20.
See page 14.
See page 17.
See page 23.
See page 29.
See page 22.
