6-1 Lubrication (Rear Side)
Turn on the power switch.
Move the backgauge backward.
- Move the backgauge to the far end.

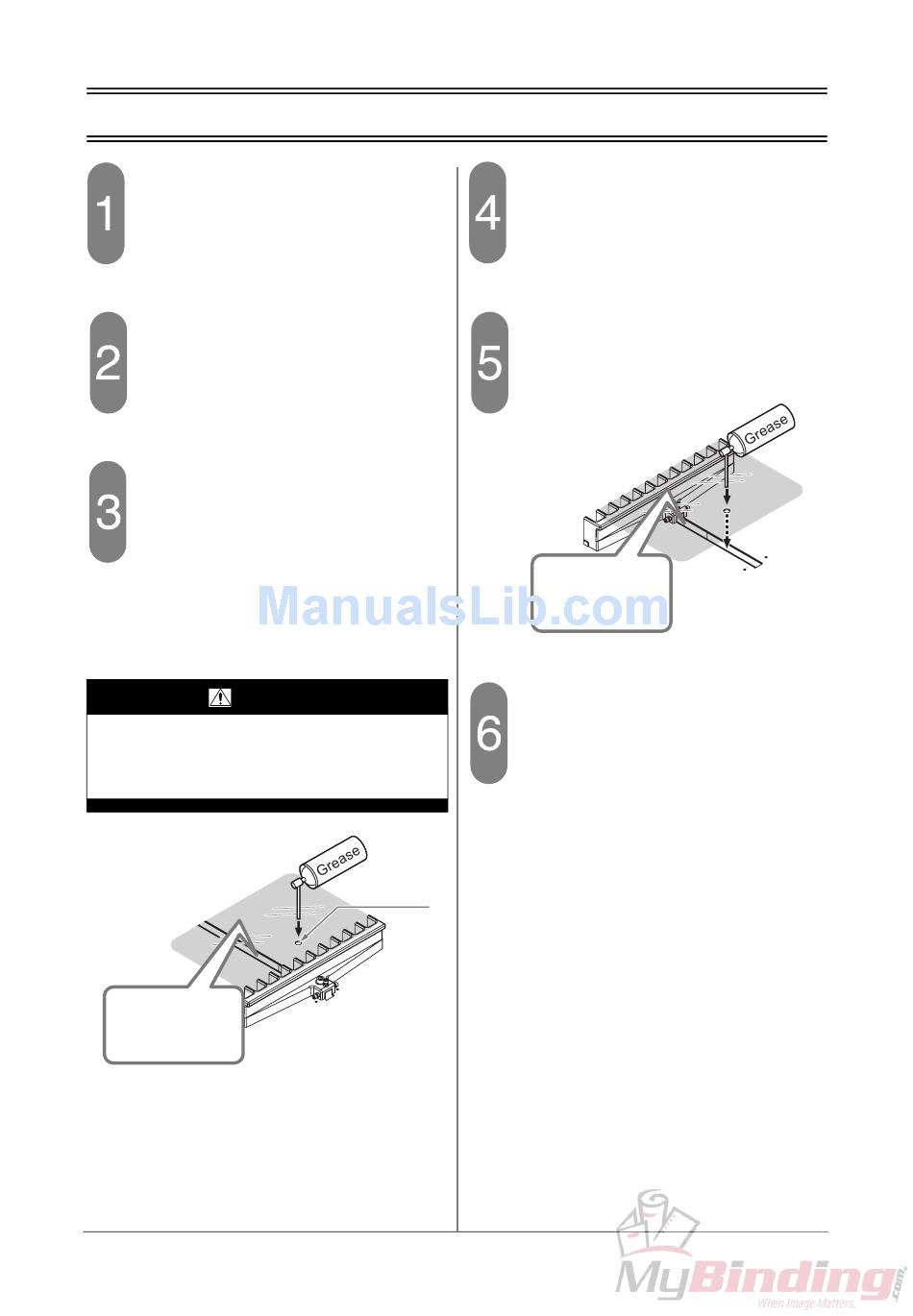

Lubricate each section.
- There is a hole for lubrication behind the win-
dow. Lubricate using a grease spray through
this hole. Lubricate the shaft in the groove of
the table and the spindle under the shaft
directly.
- Lubricate once every month.
CAUTION
Make sure to spray after the end of the
grease nozzle touches the shaft or spindle.
Otherwise, grease may be scattered and
sheets may be smeared.
Lubricate the shaft
in this groove and
the spindle under
the shaft.
44
Move the backgauge forward.
- Move the backgauge forward until the rear
Lubricate each section.
- Lubricate in the same way as shown in the
Move the backgauge forward and
backward.
- Move the backgauge through full stroke from
Hole for
Lubrication
end of the backgauge comes forward than the
hole for lubrication.
step 3.
Lubricate the shaft
in this groove and
the spindle under
the shaft.
0 to 450 mm (0" to 17.715"). Grease will
spread to the whole part.
