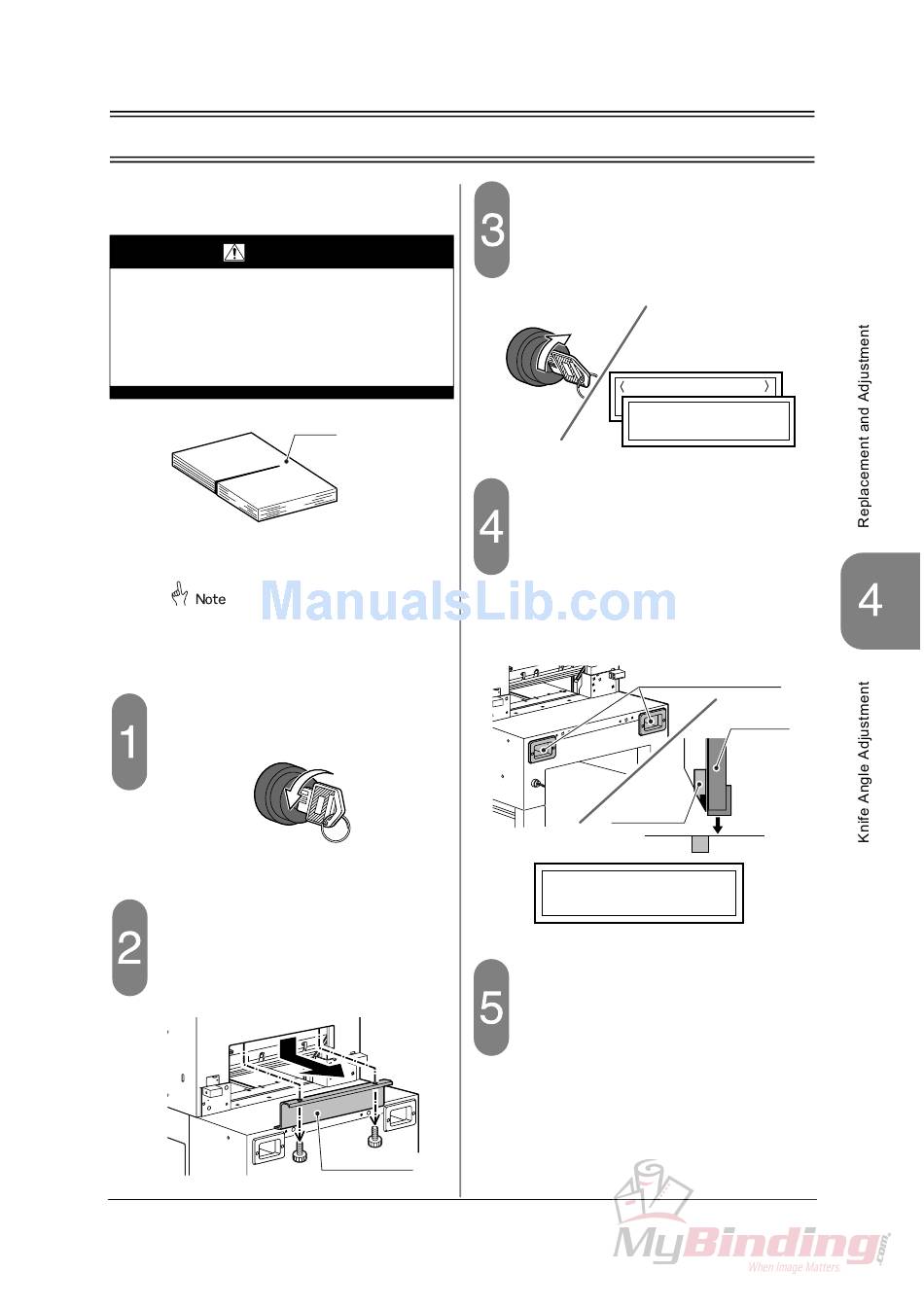

4-2 Knife Angle Adjustment

Adjust the knife angle if part of the sheets
remain uncut as shown in the figure below.
WARNING
• A single operator must perform the
adjustment.
• There will be some procedures to turn off
the power switch below. Make sure to turn
off the power switch. Otherwise, sharp
knife can cause severe personal injury.
If only bottom sheets remain uncut, the
problem can be improved also by low-
ering the knife position. Refer to "4-1
Knife Lower Limit Adjustment."
Turn off the power switch.
OFF
Remove the knife cover.
- Loosen two screws and remove the knife
cover.
Uncut
Some Sheets at
the Bottom
ON
Knife Cover
Turn on the power switch.
- The indication [REPLACE MODE] is shown
on the guide window and then it changes to
[LOWER CLAMP].
ON
OFF
KNIFE REPLACE MODE
LOWER CLAMP
Press the cutting buttons and keep
pressing until you hear a beeping
sound.
- Release the cutting buttons after only the
clamp lowers and stops.
- The indication [TURN OFF POWER
REPLACE KNIFE] is shown on the guide win-
dow.
Cutting Buttons
Knife
TURN OFF POWER
REPLACE KNIFE
Turn off the power switch.
Clamp
