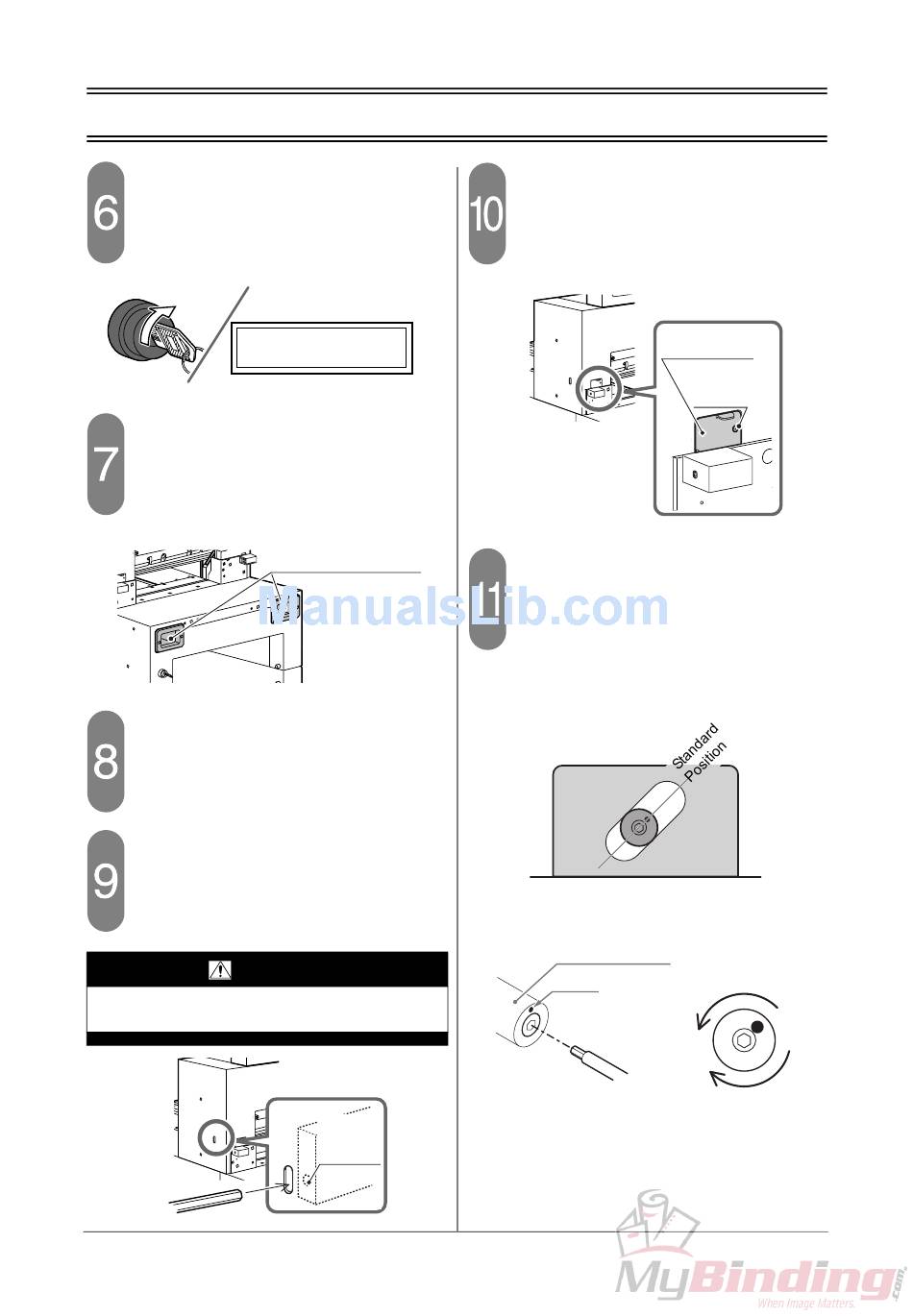

4-2 Knife Angle Adjustment
Turn on the power switch.
- The indication [LOWER KNIFE] is shown on
the guide window.
ON
OFF
LOWER KNIFE
Press the cutting buttons and keep
pressing until you hear a beeping
sound.
- The knife lowers and stops.
Turn off the power switch.
Loosen the lock screw.
- Insert an Allen wrench in the slot on the left
side cover of the machine and loosen the lock
screw.
CAUTION
Loosen the lock screw only for one or two
turns. Do not remove it.
Allen Wrench
4 mm
(0.16")
36
Cutting Buttons
Lock
Screw
(Inside)
Open the window for adjustment.
- Remove the mounting screw and open the
window.
- A hexagon hole can be seen through the win-
dow. This is the knife angle adjusting screw.
Window for
Adjustment
Mounting
Screw
Adjust the knife angle.
- Adjust the direction and angle of the knife by
changing the position of the mark in the figure
below.
- The standard position is as shown in the fig-
ure below.
View from the Opening
Knife Angle
Adjusting Screw
Mark
The left side of
the knife lowers.
The left side of
the knife lifts.
