3-2 Cutting Operation by Entering a Value
Enter the value of the cutting length
for the next cutting.
- Repeat from the step
- If the cutting operation is finished, remove the
cut sheets.
- If the button is pressed, the cut sheets on
the rear side move forward.

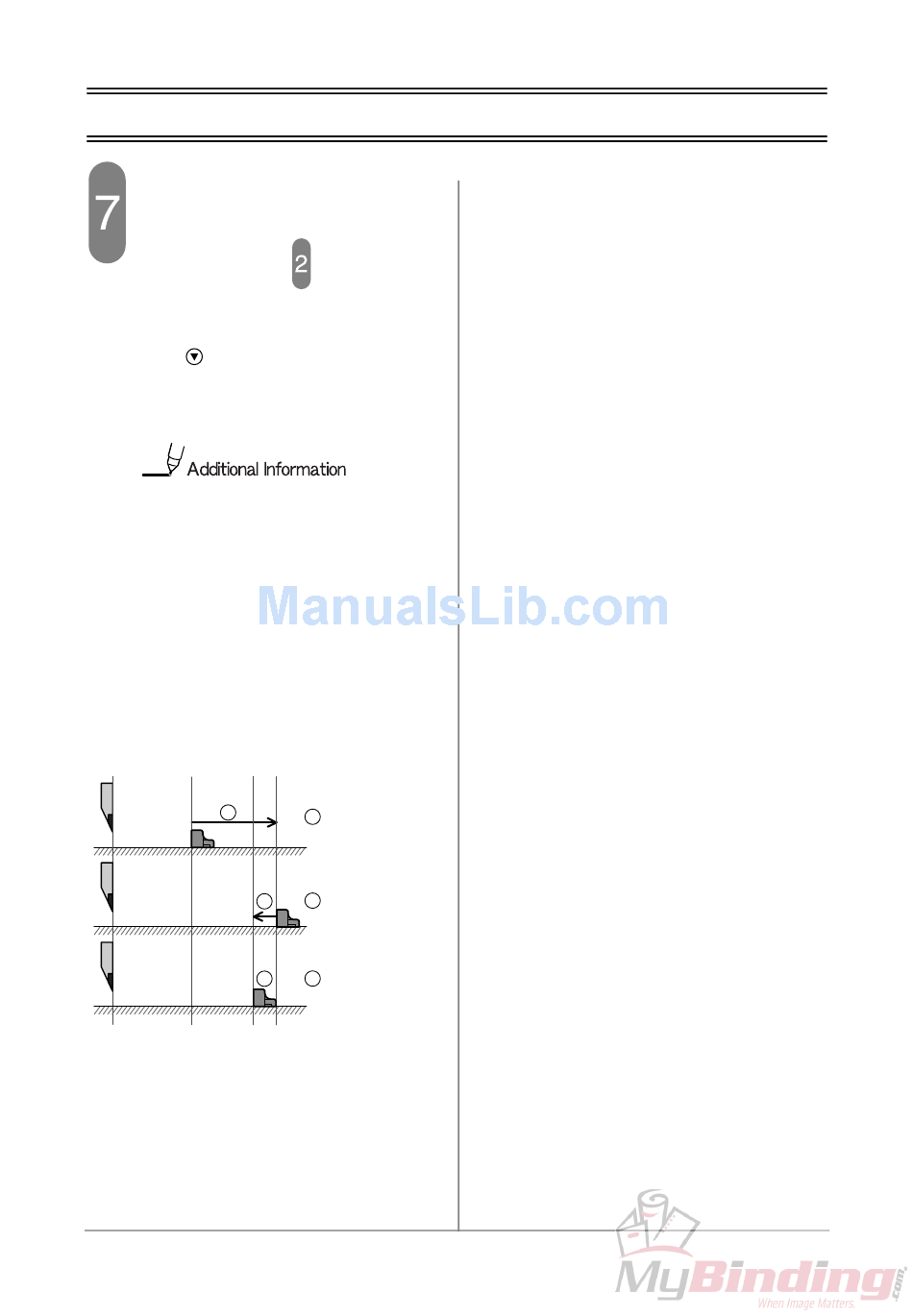

The movement of the backgauge when it
moves backward for positioning:
(Example)
If the sheet is cut to 200.0 mm (11.000")
and next cut to 300.0 mm (14.000"),
the backgauge moves backward to the
position of 307.0 mm (14.275") first, and
then moves forward to the position of
300.0 mm (14.000") and stops.
The backgauge moves in this way to
ensure the accurate cutting length. The
backgauge is always positioned by mov-
ing forward.
1
0 200.0 300.0
( 11.000" )( 14.000" )( 14.275" )
16
.
The backgauge
1
moves backward
to 307.0 mm
(14.275"),
Moves forward
2
2
and
Stops at
3
3
300.0 mm
(14.000")
307.0
