4. Replacement and Adjustment

This chapter explains how to adjust the knife lower limit, the knife angle and
how to replace the cutting stick.

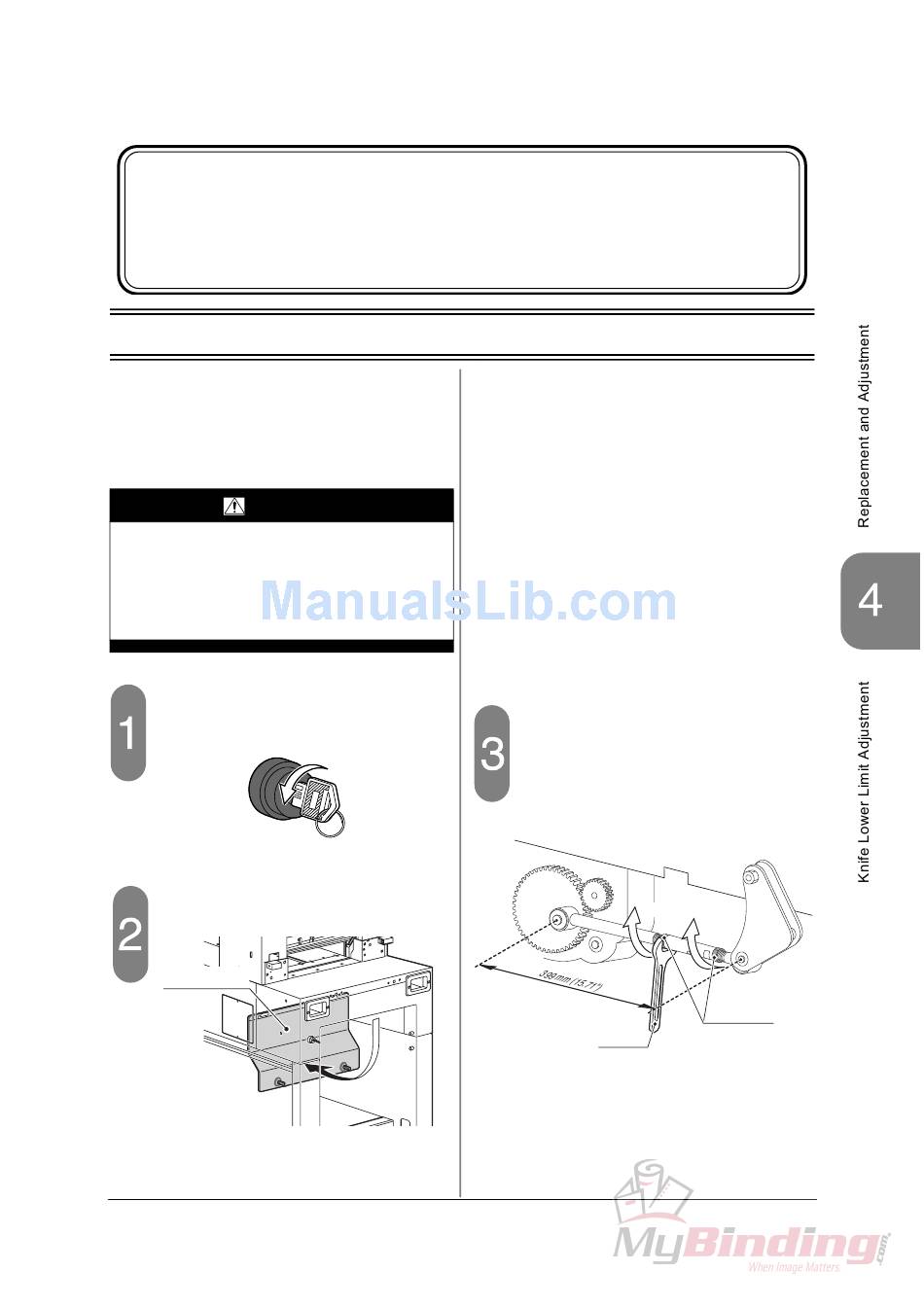

4-1 Knife Lower Limit Adjustment

The lowest position of the knife can be
adjusted mechanically.
Adjust the lower limit if the knife is worn
and the bottom sheet remains uncut.
WARNING
• A single operator must perform the
adjustment.
• There will be some procedures to turn off
the power switch below. Make sure to turn
off the power switch. Otherwise, moving
parts can cause severe personal injury.
Turn off the power switch.
OFF
Open the lower cover.
Lower Cover
ON
Loosen two lock nuts of knife height
adjusting screws using the wrench.
- The right lock nut is a left-handed screw.
Loosen
Wrench
Lock Nuts
33
