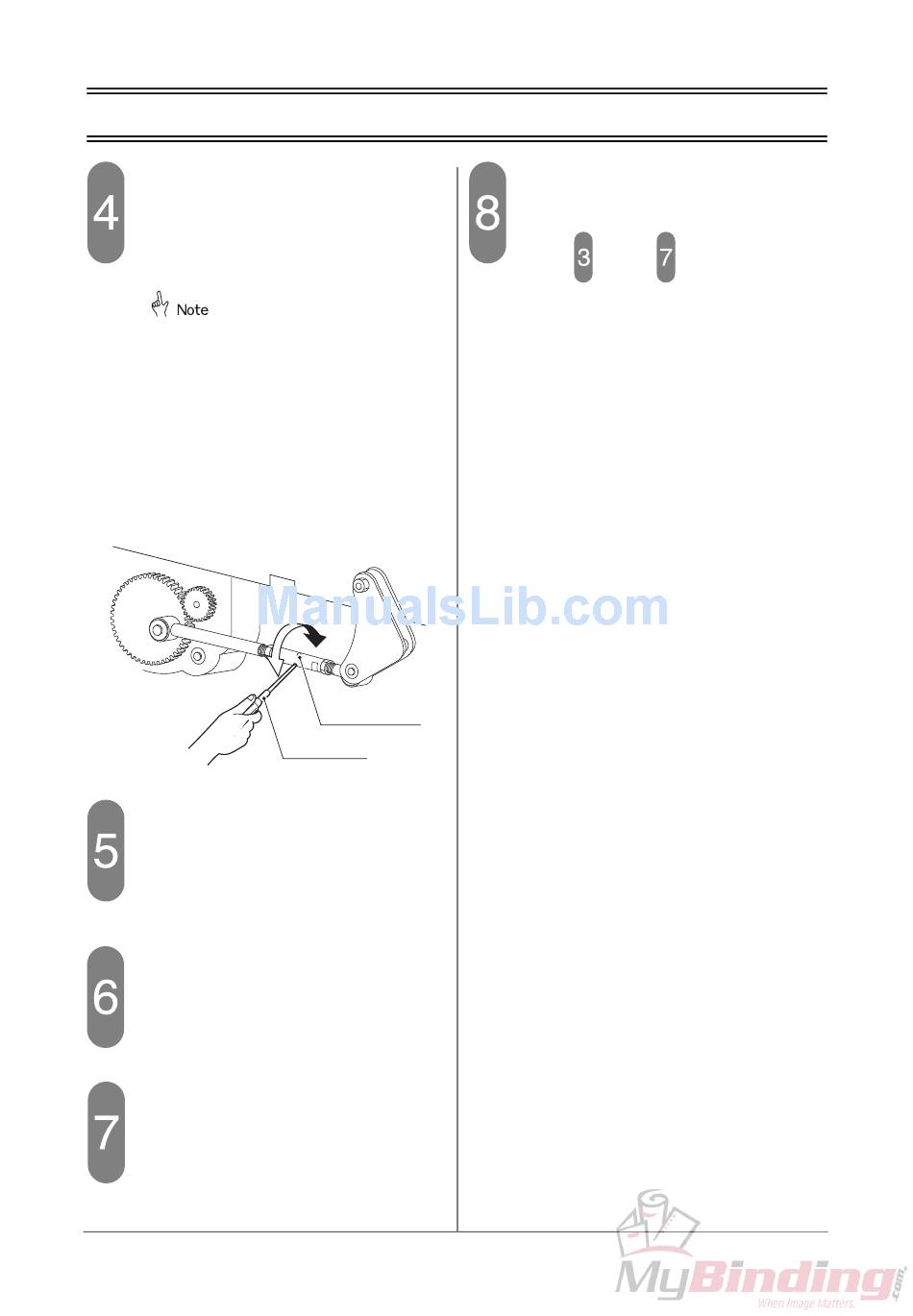

4-1 Knife Lower Limit Adjustment
Adjust the lower limit.
- Insert the accessory driver into the adjusting
hole and rotate the shaft to adjust the lower
limit.
- 1/6 rotation of the knife height adjust-
ing screws lifts/lowers the knife about
0.6 mm (0.024").
depth may damage the machine.
Maximum cutting depth is 0.5 mm
(0.019").
- The standard length shown in the fig-
ure in the previous page is 399 mm
(15.71"). Adjust so that this length will
be 397 mm to 400 mm (15.63" to
15.74").
Lift
Fasten two lock nuts.
Close the lower cover.
Turn on the power switch.
34
Excessive cutting
Lower
Adjusting Hole
Accessory
Driver
Perform the test cutting.
- If the sheet still remains uncut, repeat the
steps through .
