8. Use the DiagTool to set the media sensor type and calibrate the selected sensor. (Please refer to
section 4)
Note:
•
Please calibrate the gap/black mark sensor when changing media.
•
The sensor location is marked by a triangle mark
•
The media sensor position is moveable. Please make sure the gap or black mark is at
the location where media gap/black mark will pass through for sensing.

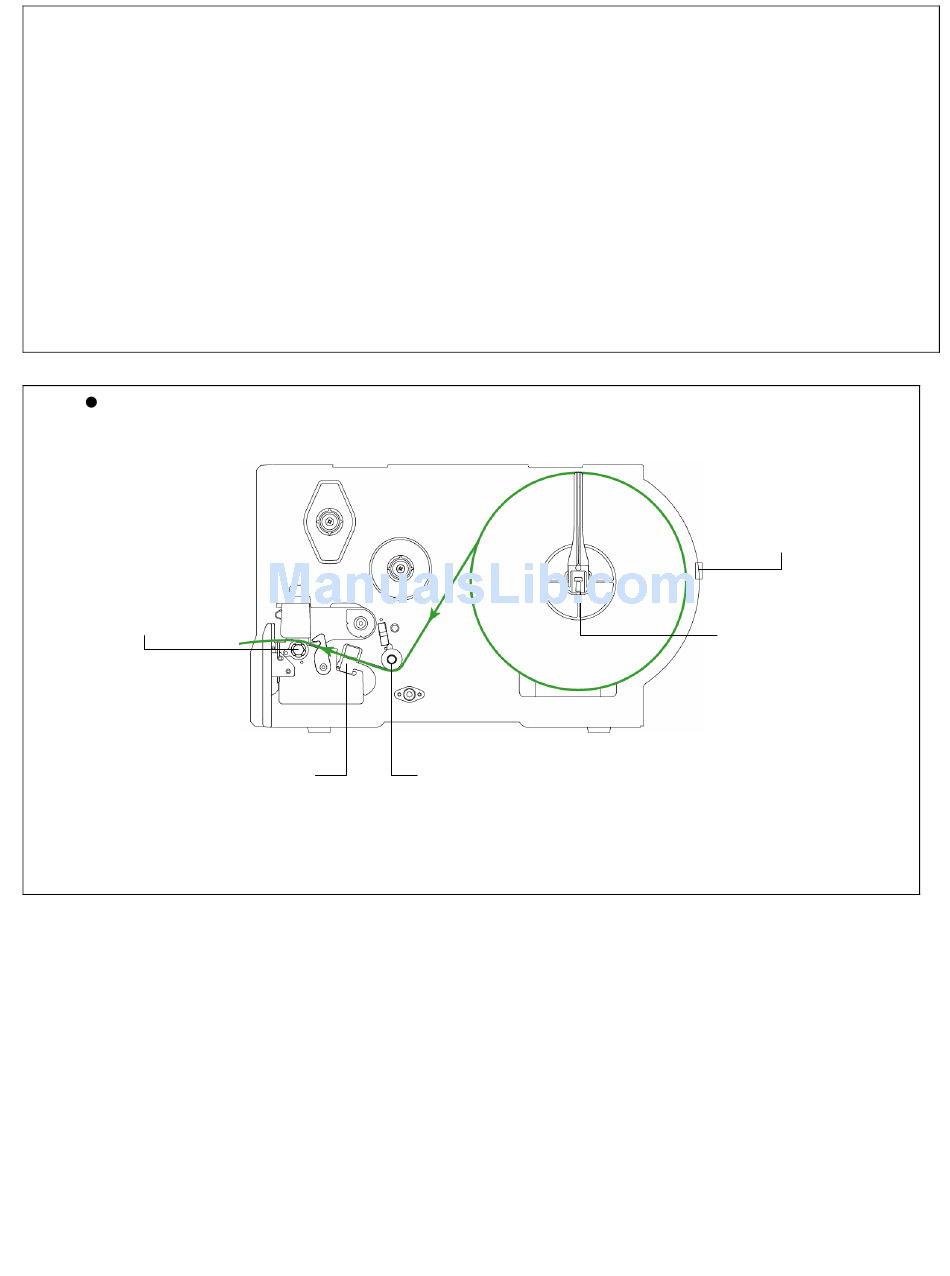

Loading path for roll labels
Platen roll
Media sensor
▽
at the sensor housing.
Media guide bar
20
Rear media
loading slot
Media supply
spindle
