3.3 Change CPU

To change the CPU:
1. Pull the handling bar of the socket upward to the other end to loosen the
socket's openings. Carefully lift the existing CPU up to remove it from the socket.
2. Place the new CPU on the middle of the socket, orienting its beveled corner to
line up with the socket's beveled corner. Make sure the pins of the CPU fit evenly
to the socket openings. Replace the handling bar to fasten the CPU to the socket.

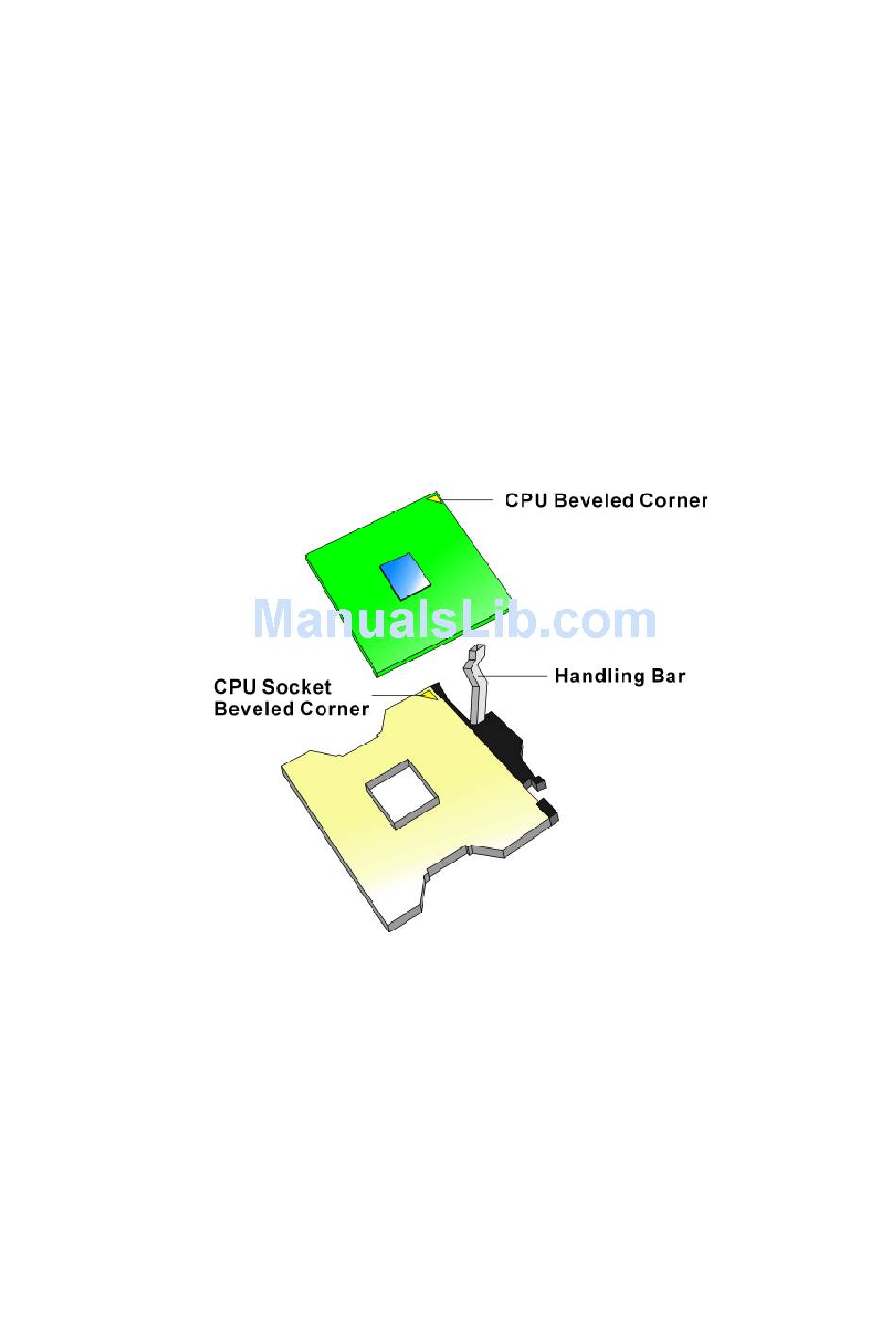

Figure 3-5 : How to Change CPU
