Chapter 2: Jumpers and Connectors
Internal Connectors

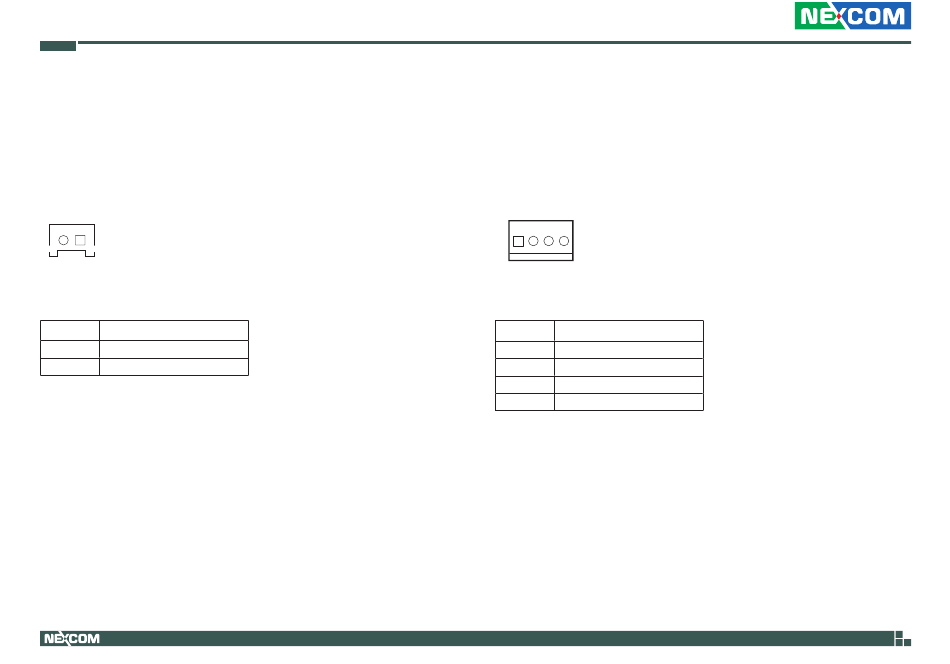

RTC Battery Connector
Connector type: 1x2 2-pin header, 1.25mm pitch
Connector location: JBAT1
2
1
Pin
Definition
1
GND
2
VBAT
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
CPU FAN Connector
Connector type: 1x4 4-pin Wafer
Connector location: JFAN2
1
4
Pin
Definition
1
GND
2
FAN1_12V_C
3
FAN_TAC1_C
4
FAN_CTL1_C
17
NEX 614 User Manual
