Chapter 2: Jumpers and Connectors

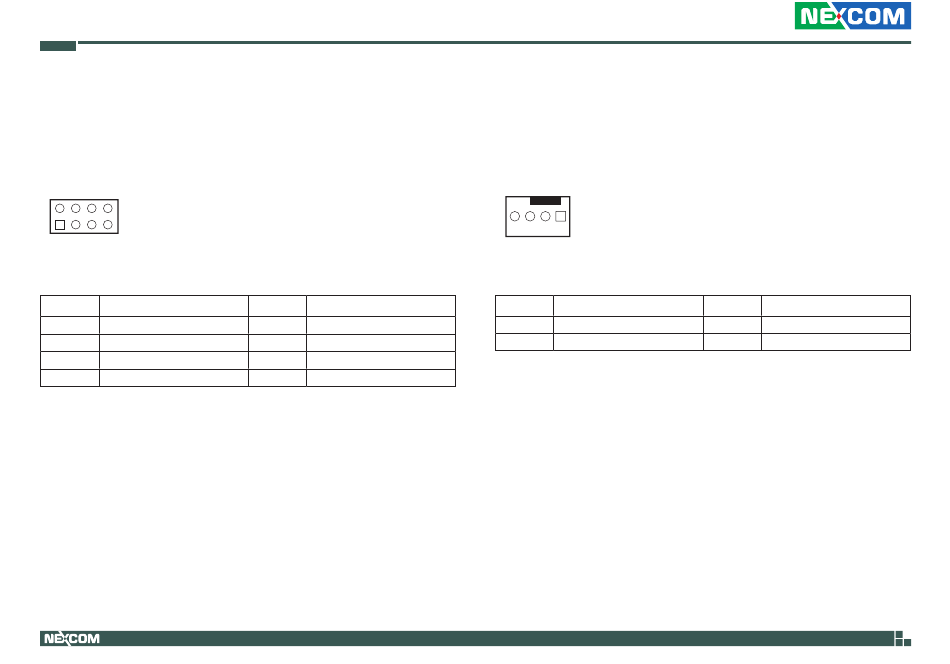

BIOS Programmable Connector
Connector type: 2x4 8-pin header
Connector location: SPI_1
2
8
1
7
Pin
Definition
1
+3V_SPI
3
SPI_CS#
5
SPI_MISO
7
NC
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
SPI_CLK
6
SPI_MOSI
8
NC
CPU Fan Connector
Connector type: 1x4 4-pin header
Connector location: CPU_FAN1
4
1
Pin
Definition
1
GND
3
SENSE
13
Pin
Definition
2
+12V
4
PWM
NEX 913 User Manual
