6. Lastly, connect the processor fan cable to the motherboard fan power header
(Figure 3-10). Consult the motherboard manual to determine the correct fan
header to use.

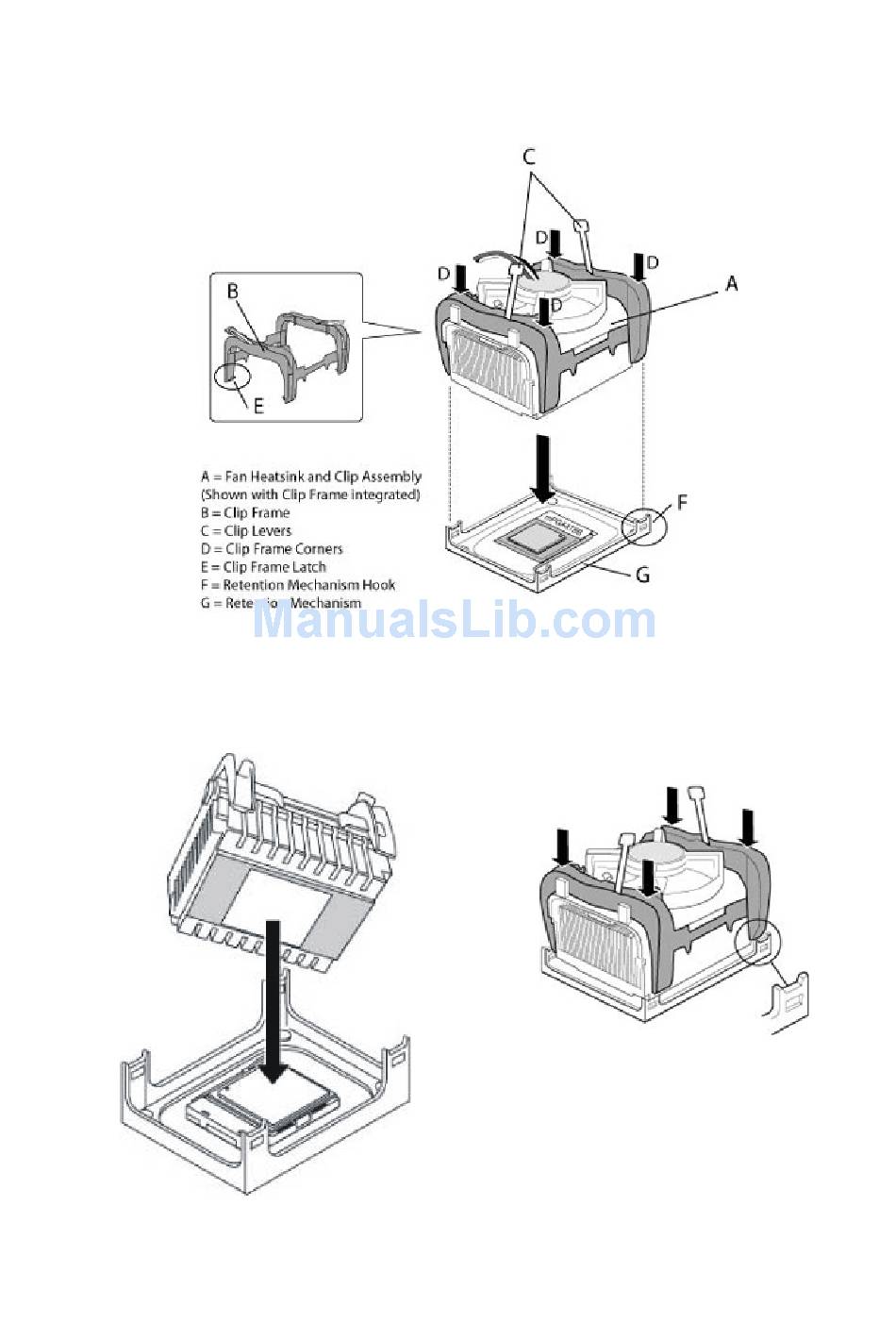

Figure 3-6: Installing the Fan Heatsink (1)
Fan Heatsink and Clip Assembly Terminology
Figure 3-8: Installing the Fan Heatsink (3)
Push Down Clip Frame
Corners to Secure to Retention
Mechanism Hooks
Figure 3-7: Installing the Fan Heatsink (2)
Align Fan Heatsink and Clip Assembly
