Chapter 2: Jumpers and Connectors

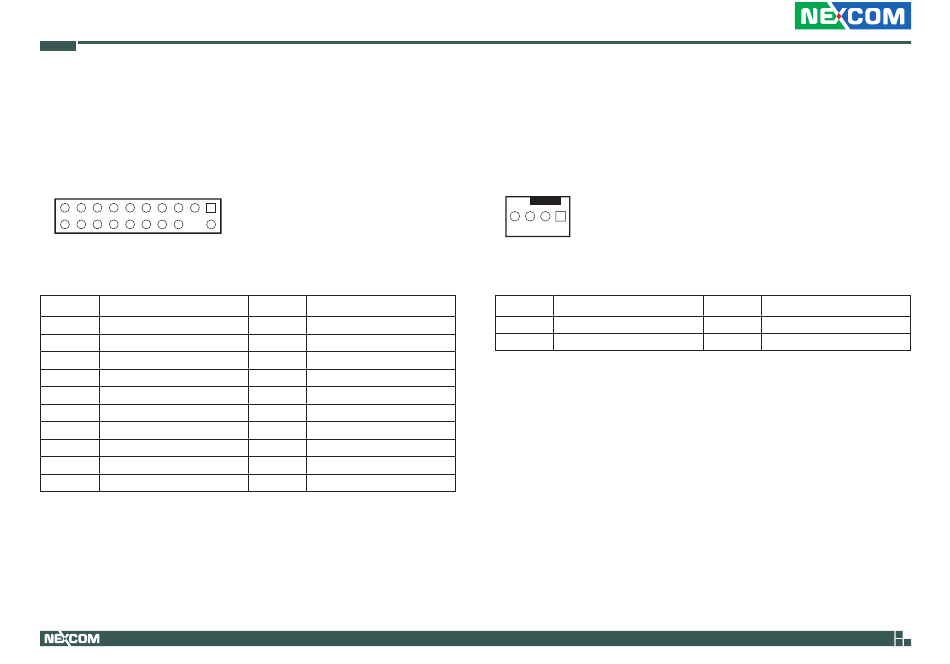

TPM Header

Connector type: 2x10 20-pin header
Connector location: TPM1
19
20
Pin Definition
1 LCLK
3 LFRAME#
5 PCIRST#
7 LAD3
9 +3V
11 LAD0
13 NC
15 +3VSB
17 GND
19 LPCPD#
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
1
2
Pin Definition
2 GND
4
6 NC
8 LAD2
10 LAD1
12 GND
14 NC
16 SERIRQ
18 CLKRUN#
20 NC

CPU Fan Connector

Connector type: 1x4 4-pin header
Connector location: CPU_FAN
4 1
Pin Definition
1 GND
3 CPU FAN IN
11
Pin Definition
2 CPU FAN PWR
4 CPU FAN PWM
NEX 812 User Manual
