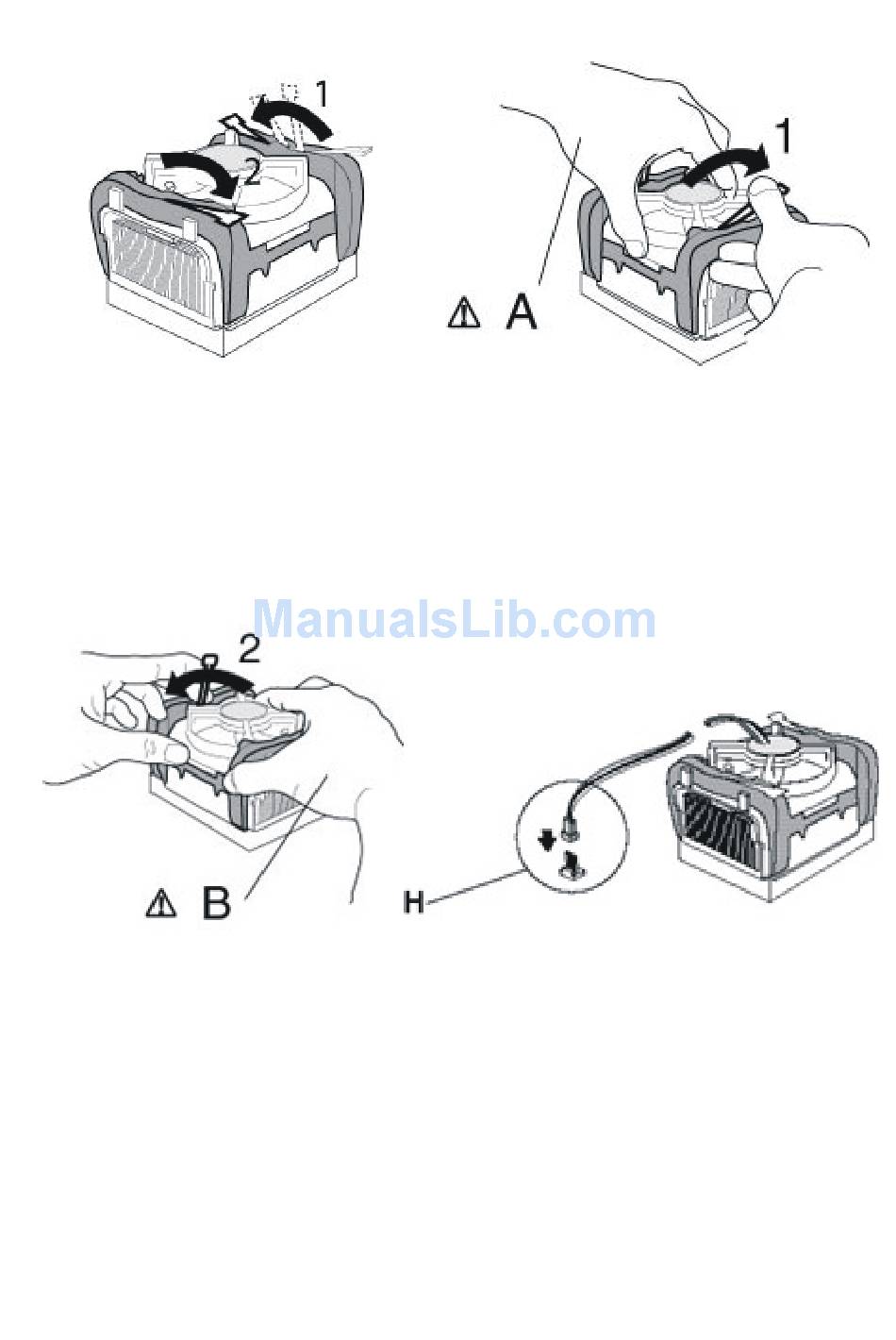

Figure 3-9a: Installing the Fan Figure 3-9b: Installing the Fan
Heatsink (4) Heatsink (5)
Close Clip Levers, Close Clip Lever (1),
One at a Time While Holding the Topside
of Fan Heatsink (A)
Figure 3-9c: Installing the Fan Figure 3-10: Installing the Fan
Heatsink (6) Heatsink (7)
Close Clip Lever (2), Connect Fan Cable to Motherboard
While Holding the Topside of
Fan Heatsink (B)
23
