Installation
Disassembly of the entire scale is not required when installing the battery option kit.
1. Position the back of the scale so it overhangs the rear of a work bench (see Figure 2).
2. Remove the (2) Phillips head screws (marked "A" in Figure 2) and the rear panel.
3. Next remove the (2) hex head screws and washers marked "D" in Figure 2.
4. Disconnect the ribbon cable and remove the power circuit board.
5. Install the battery option circuit board and reconnect the ribbon cable. Make sure to loop the
battery clip out through the battery door opening.
6. Replace the (2) hex head screws and washers marked "D" in Figure 2.
7. Before replacing the rear panel, remove the pre-cut knockout for the power switch with a ham-
mer and screwdriver. Mount the rear panel onto the scale with the (2) Phillips head screws
(marked "A" in Figure 2).
8. Slide the battery halfway into the scale, attach the battery clip, then insert the battery com-
pletely into the scale.
9. Slide the battery door closed and the scale is now powered for portable operation.

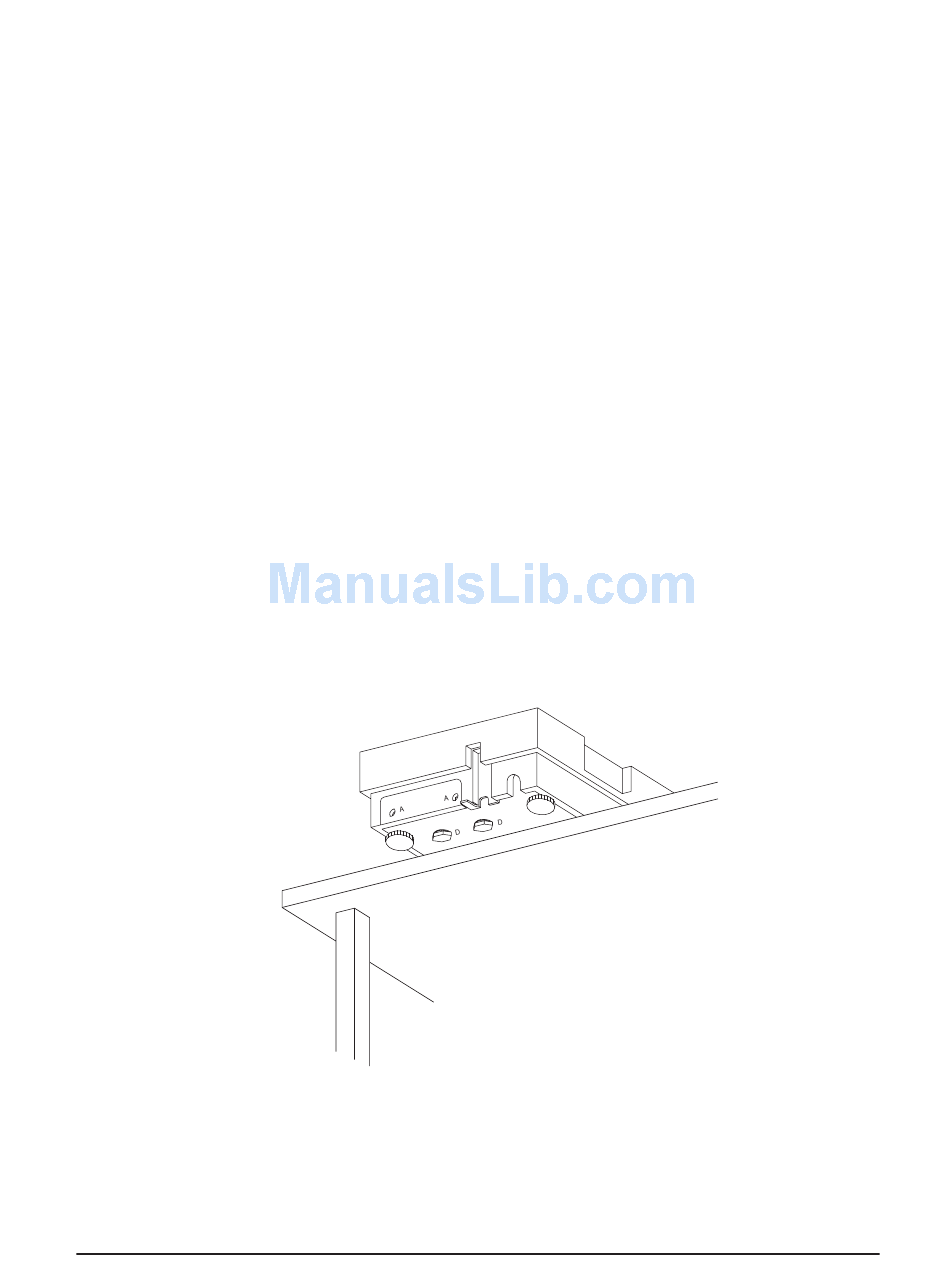

Figure 2. Installing the Battery Option.
56
Appendix IX
Battery Option
TM
Setra Super Count
Operator's Manual
