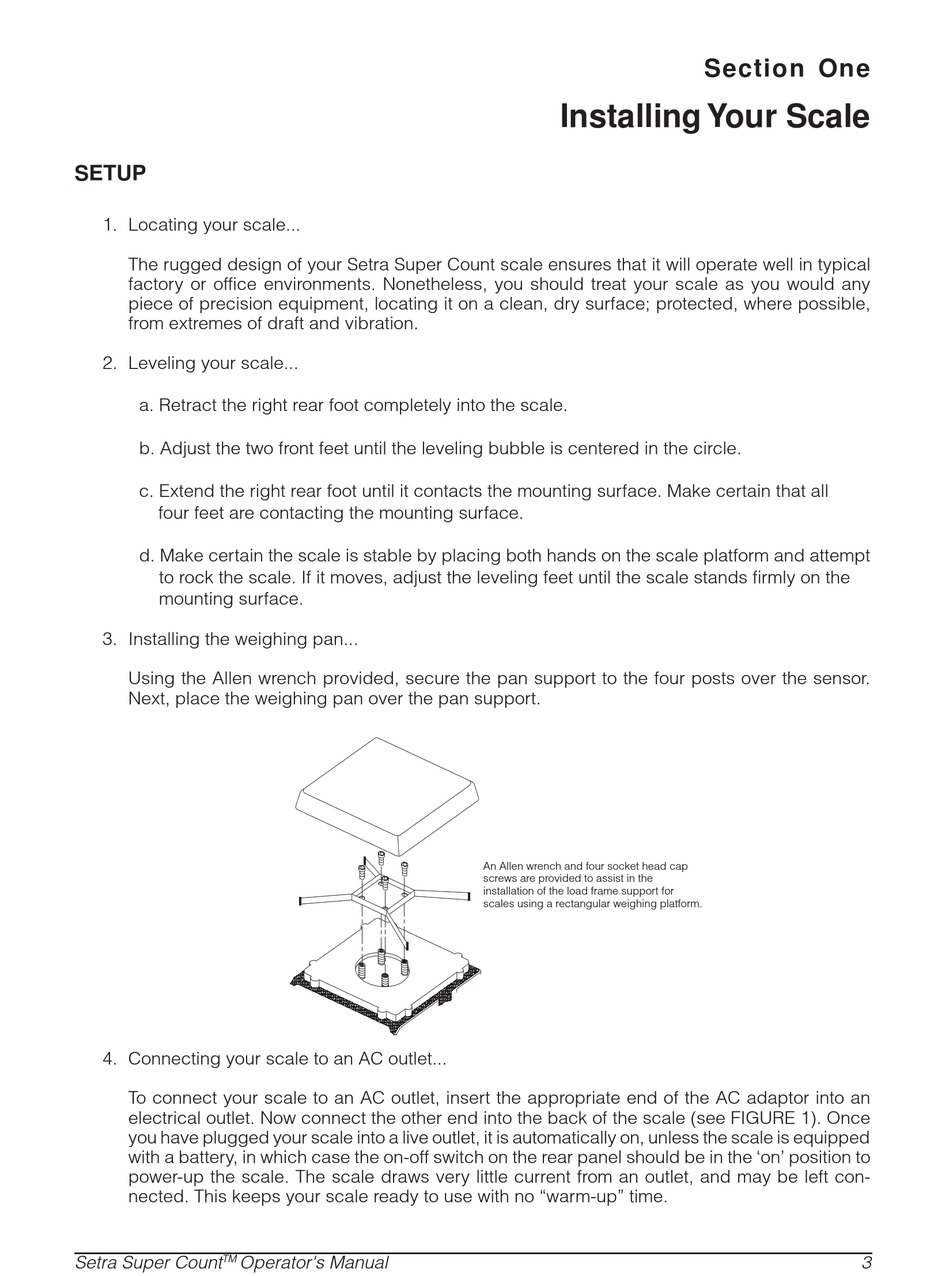

SETUP

1. Locating your scale...

The rugged design of your Setra Super Count scale ensures that it will operate well in typical

factory or office environments. Nonetheless, you should treat your scale as you would any

piece of precision equipment, locating it on a clean, dry surface; protected, where possible,

from extremes of draft and vibration.

2. Leveling your scale...

a. Retract the right rear foot completely into the scale.

b. Adjust the two front feet until the leveling bubble is centered in the circle.

c. Extend the right rear foot until it contacts the mounting surface. Make certain that all

four feet are contacting the mounting surface.

d. Make certain the scale is stable by placing both hands on the scale platform and attempt

to rock the scale. If it moves, adjust the leveling feet until the scale stands firmly on the

mounting surface.

3. Installing the weighing pan...

Using the Allen wrench provided, secure the pan support to the four posts over the sensor.

Next, place the weighing pan over the pan support.

4. Connecting your scale to an AC outlet...

To connect your scale to an AC outlet, insert the appropriate end of the AC adaptor into an

electrical outlet. Now connect the other end into the back of the scale (see FIGURE 1). Once

you have plugged your scale into a live outlet, it is automatically on, unless the scale is equipped

with a battery, in which case the on-off switch on the rear panel should be in the 'on' position to

power-up the scale. The scale draws very little current from an outlet, and may be left con-

nected. This keeps your scale ready to use with no "warm-up" time.

Setra Super Count

Operator's Manual
