INSTALLATION

Disassembly of the entire scale is not required when installing the
battery option kit.
1. Position the back of the scale so it overhangs the rear of a work
bench (see Figure 2).
2. Remove the (2) Phillips head screws (marked " A"
the rear panel.
3. Next remove the (2) hex head screws and washers marked " D"
Figure 2.
4. Disconnect the ribbon cable and remove the power circuit board.
5. Install the battery option circuit board and reconnect the ribbon
cable. Make sure to loop the battery clip out through the battery
door opening.
6. Replace the (2) hex head screws and washers marked " D"
2.
7. Before replacing the rear panel, remove the pre-cut knockout for
the power switch with a hammer and screwdriver. Mount the rear
panel onto the scale with the (2) Phillips head screws (marked " A"
in Figure 2).
8. Slide the battery halfway into the scale, attach the battery clip,
then insert the battery completely into the scale.
9. Slide the battery door closed and the scale is now powered for
portable operation.

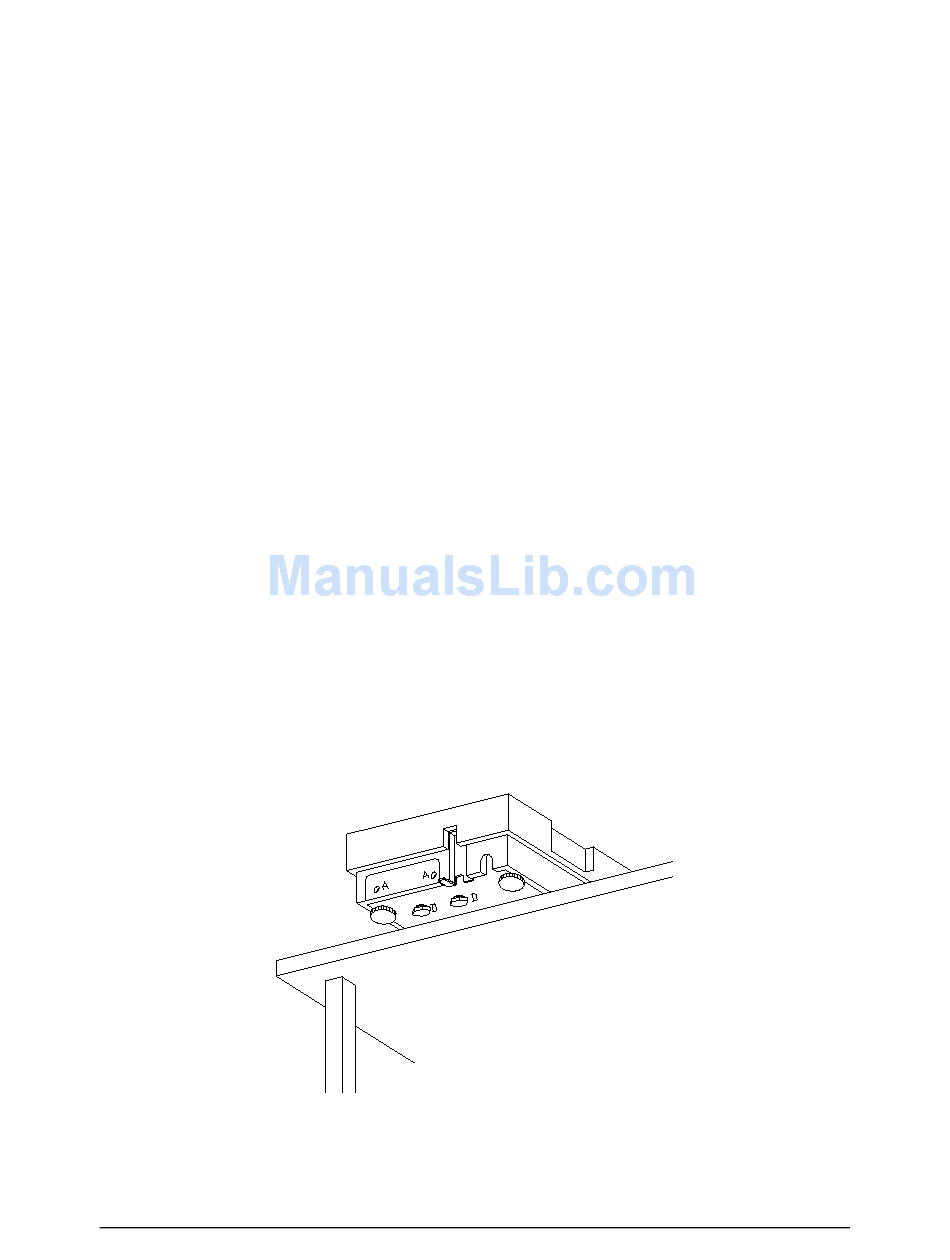

Figure 2. Installing the Battery Option.
22

Battery Option

in Figure 2) and
Setra Quick Count™ Operator's Manual

Appendix VII

in
in Figure
